VIVOTEK ND8321 is a compact Linux embedded 8-CH standalone desktop NVR designed for any small-scale video surveillance installation. ND8321 achieves non-screwdriver installation, and facilitates "One Button Setup" with its plug & play and auto setup functionality.

Supporting Full HD HDMI local video output, users can control the GUI OSD interface via mouse & keyboard, eliminating the need for a separate PC to view video or to playback from the NVR. The new local dislpay design - Auto Adaptive Stream will dynamically modify Stream 2 resolution of a camera to best fit the display resolution according to the layout type, performing an efficient display. Fisheye dewarp is also designed in ND8321. ND8321 supports software dewarp of VIVOTEK fisheye cameras, allowing seamless display in a fisheye surveillance scenario.

Together with VAST CMS and ST7501 VMS, users can set up an easy-to-use IP surveillance system with ease. VIVOTEK also provides the mobile application, iViewer, for both iOS and Android handheld devices, enabling users to monitor live video anytime, anywhere.

Feature

  • 8-CH Live Viewing
  • 1-CH Local Playback, 4-CH Remote Synchronous Playback
  • Embedded Linux OS
  • Easy to Install HDD Design
  • 1080P HDMI Local Video Output
  • Plug & Play Auto Setup
  • Auto Adaptive Stream for Efficient Display
  • Support Fisheye Dewarp (1O, 1P, 1R, 1O3R)
  • Support Local Rewind
  • VIVOTEK Camera Configuration Integrated
    • System OS: Embedded Linux
    CPU: ARM Processor
    Flash: 256 MB
    RAM: 1GB
    Watchdog: Hardware + Software
    Power Restoration: System restart automatically after Power Recovery
    Storage HDD Devices: Internal tray x 2
    HDD Max. Capacity: 8 TB (4 TB x 2)
    Disk Management: Create, Format and Remove Disk ; HDD S.M.A.R.T
    RAM Video Output: HDMI
    Resolution: 1920x1080
    Graphics Decoder: Hardware decoding
    Decording Capacity: H.264:
  • 1920x1080 @ 30 fps (1-CH)
  • 1280x720 @ 120 fps (4-CH)
  • 640x480 @ 240 fps (8-CH)
    • Camera Position: Change the viewcell postion
    External I/O USB:
  • Front: 1 (USB 2.0)
  • Back: 1 (USB 2.0)
    		•
    Networking Protocols: IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter
    Interface: 1 x 10/100/1000Mbbps
    Transform Gateway: Supported
    Power Power Input: DC 12V 5A
    Power Consumption (W): Max. 60 W
    LED Indicator LED Indicator: Power, Status, LAN, HDD1, HDD2, Alarm, Record
    Mechanic Form Factor: Tower
    Opateration Buttons: Power (Front) / Reset (Back)
    Dimensions: 121mm(W)x179mm(D)x186mm(H)
    Weight: 0.92 kg
    Operating Temperature: 0 ~ 40 ̊C
    Humidity: 0 ~ 95%
    General Safety Certifications: CE, LVD, FCC Class B, VCCI, C-Tick
    Warranty: 24 months
    System Requirements Operating System: Microsoft Windows OS XP / Vista / 7 / 8 / 2008 / 2012
    CPU: Intel Celeon or above
    Memory: 2 GB or above
    Ethenet: 10/100Mbps
    Display Resolution: 1024 x 768 pixels or above
    Web Browser: Internet Explorer 10 (32 bit) or above
    Software AP: Installation Wizard 2, ST7501, VAST
    Mobile APP, Tablet APP: iViewer (iOS), iViewer (Android)
    Recording Maximum Channel: 8
    Record throughput (MB): 32 Mbps
    Network throughput (MB): 16 Mbps
    Audio Format: G.711, G.726, AMR, AAC
    Video Format: MJPEG, H.264 AVC
    Video Resolution: VGA, 1MP, 2MP All Device & 3MP Fisheye Camera
    Recording Time (sec.): Pre-Record: 5 (max. 10), Post-Record: 20 (max. 300)
    Recording Stream: Single
    Recording Mode: Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
    Recording Setting: Recycle (unit: Day)
    Recording Path: Local Path
    Record Video Format: 3GP
    LiveView (Local Display) Stream Application: Auto Adaptive Stream
    LiveView Display:
  • 8 Channel
  • Multi Layout display: 1x1, 1x3 (Corridor Format), 2x2, 3x3, 1+5, 1+3, 1+1+3 (1P), 1+3+3 (1P)
    • Monitor Enhancement: OSD Display (NVR), OSD Display (Camera), Camera Information, Remote I/O Control, Event Notification, Aspect Ratio, Fisheye Dewarp: 1O, 1P, 1R, 1O3R, PiP Control
    PTZ Control: Panel Control
    PTZ Operation: Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group)
    Snapshot: JPEG
    Video Clip Export: EXE
    Playback (Local Display) Playback Display:
  • 1 Channel
  • Layout display: 1x1
    • Playback Control: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control
    Search Mode: Calendar, Event, Timeline, Timeline Scale, Stortboard
    Monitor Enhancement: OSD Display (Camera), Event Notification, Aspect Ratio, Fisheye Dewarp: 1O, 1P, 1R, 1O3R, PiP Control
    Snapshot: JPEG
    Video Clip Export: EXE
    LiveView (Remote) Stream Application: Stream Selection
    Audio Capability: One Way
    LiveView Display:
  • 8 Channel
  • Multi Layout display: 1x1, 2x2, 3x3, 1+3, 1+5
    • Monitor Enhancement: OSD Display (NVR), Drag & Drop, Image Freeze, Audio Control, Remote I/O Control, Event Notification, Bookmark, Fisheye Dewarp: 1O, 1P, 1R, PiP Control
    PTZ Control: Panel Control
    PTZ Operation: Direction Control, Home, Zoom, Focus, Iris, Preset, Patrol (Group)
    Snapshot: JPEG
    Video Clip Export: EXE
    Playback (Remote) Playback Display:
  • 4 Channel
  • Multi Layout display: 1x1, 2x2, 1+3
    • Playback Control: Regular (Play, Pause, Stop), Next Frame, Speed Control
    Search Mode: Calendar, Timeline, Timeline Scale, Bookmark
    Monitor Enhancement:
  • OSD Display (NVR), Drag & Drop, Audio Control, Fisheye Dewarp: 1O,1P,1R, PiP Control
    • Snapshot: JPEG
    Video Clip Export: EXE
    Alarm Management Schdule Type: Continuous, Schedule, Manual
    Event: Motion Detecton, PIR Detection, Tampering Detection, Digital Input (Camera), Digital Output (Camera), Connection Abnormal, Storage Abnormal, Storage Full
    Action: Record, Email (Text), Email (Snapshot), FTP, Digital Output (Camera), Buzzer, PTZ Control (Go to Preset)
    Recording Time (sec.): Pre-Record: 5 (max. 10), Post-Record: 20 (max. 300)
    Backup Manual: USB Dongle (FAT Format)
    System (Software Information) User Management:
  • User Account: 10
  • User Account Time Limit: 10 mins
  • User Level: Administrator / Regular User
  • User Feature Definition: By Camera
    • Log: System, Recording, User, Error
    Date&Time: Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time, Smart FAN Speed
    Firmware: Manual update
    Refault Default: Supported
    Backup/Restore (Configuration): Supported
    Language: Czech, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Simplified Chinese, Traditional Chinese
    Camera Intergration Insert Camera: Manual, Search
    Video (Media) Setting: Compression, Resolution, FPS, Video Quality
    Image Setting:
  • Image Display
  • Image Adjustment
    • PTZ Control: Panel Control
    PTZ Operation: Direction Control, Home, Preset, Patrol (Group)
    Motion Detection: Supported
    Activity Adaptive Stream: Supported
    Device Intergration UPS: APC Model Compatible
    Datasheets Download
    User's Manuals Download

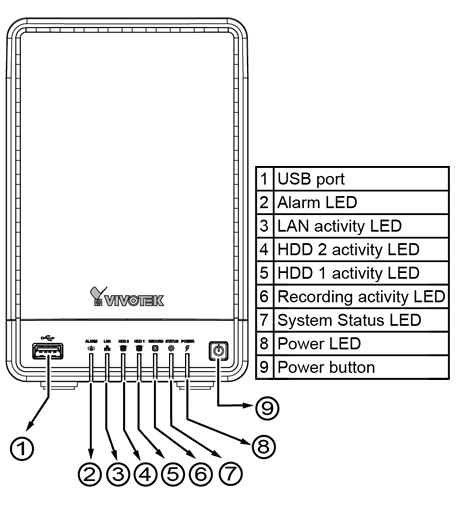

    Product Front View

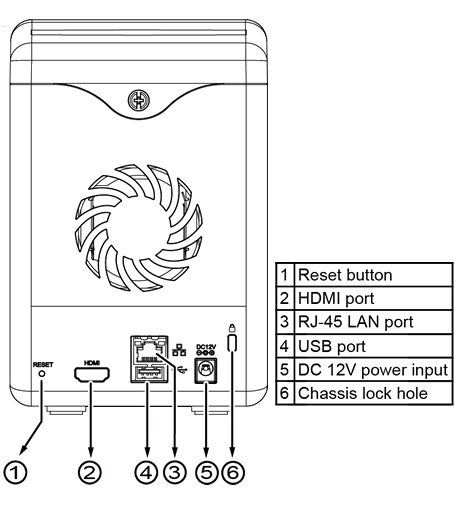

    Product Rear View
