| System Information |
|
| Model |
IB9365-HT-A (4-9 mm)
IB9365-HT-A (12-40 mm)
|
| CPU |
Multimedia SoC (System-on-Chip) |
| Flash |
256 MB |
| RAM |
1 GB |
| Camera Features |
|
| Image sensor |
1/2" progressive CMOS |
| Max. Resolution |
1920x1080 (2MP) |
| Lens Type |
Motorized, Vari-focal, Remote Focus |
| Focal Length |
IB9365-HT-A (4-9 mm): f = 4 ~ 9 mm (f = 3.5 ~ 11.4 mm, equivalent focal length @ 1/2.8")
IB9365-HT-A (12-40 mm): f = 12 ~ 40 mm
|
| Aperture |
IB9365-HT-A (4-9 mm): F1.3 ~ 2.2
IB9365-HT-A (12-40 mm): F1.8
|
| Auto-iris |
P-iris
|
| Field of View |
IB9365-HT-A(4-9mm): 100° ~ 46° (Horizontal) , 52° ~ 26° (Vertical) , 120° ~ 53° (Diagonal)
IB9365-HT-A(12-40mm): 35° ~ 12° (Horizontal) , 19° ~ 7° (Vertical) , 40° ~ 14° (Diagonal)
|
| Shutter Time |
1/5 sec. to 1/32,000 sec. |
| WDR Technology |
WDR Pro |
| Day/Night |
Yes |
| Removable IR-cut Filter |
Yes |
| IR Illuminators |
IB9365-HT-A(4-9mm): Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*6
IB9365-HT-A(12-40mm): Built-in IR illuminators, effective up to 100 meters with Smart IR II, IR LED*4
|
| Minimum Illumination |
IB9365-HT-A (4-9mm):
- 0.015 lux @ F1.3 (Color)
- < 0.005 lux @ F1.3 (B/W)
- 0 lux with IR illumination on
IB9365-HT-A (12-40mm):
- 0.075 lux @ F1.8 (Color)
- < 0.005 lux @ F1.8 (B/W)
- 0 lux with IR illumination on
|
| Tilt range |
90° |
| Rotation range |
180° |
| Pan/ Tilt/ Zoom Functionalities |
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
|
| Storage |
Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
|
| Built-in Installation Aids |
Remote focus, remote zoom, CVBS
|
| Video |
|
| Video Compression |
H.265, H.264, MJPEG |
| Maximum Frame Rate |
60 fps @ 1920x1080
|
| Maximum Streams |
3 simultaneous streams |
| S/N Ratio |
68 dB
|
| Dynamic Range |
120 dB |
| Video Streaming |
Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings |
General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
Illuminators: illuminators, anti-overexposure
Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS
Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
Focus: zoom, focus
Privacy mask, Scheduled profile settings
|
| Audio |
|
| Audio Capability |
Two-way Audio (full duplex) |
| Audio Compression |
G.711
G.726 |
| Audio Interface |
External microphone input
External line output |
| Network |
|
| Users |
Live viewing for up to 10 clients |
| Security |
Access list, digest authentication, HTTPS , IEEE 802.1x, password protection
Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
User access log, user account management |
| Protocols |
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP
PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface |
10 Base-T/100 Base-TX Ethernet (RJ-45)
* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF |
Profile G, S supported, specification available at www.onvif.org |
| Solution Integration |
|
| Smart Motion Detection |
Five-window video motion detection, people detection, time filter |
| Smart VCA |
Intrusion detection, loitering detection, line crossing detection, unattended object detection
Missing object detection, face detection, crowd detection, running detection |
| VADP Package |
Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial) |
| Alarm and Event |
|
| Event Trigger |
Audio detection, camera tampering detection, digital input, manual trigger, motion detection
Periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
|
| Event Action |
Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card |
| General |
|
| Connectors |
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
AC 24 V power input
DC 12 V power input
Digital input *2
Digital output *2
BNC out
|
| LED Indicator |
System power and status indicator
|
| Power input |
AC 24V
DC 12V
IEEE 802.3af PoE Class 0
(Simultaneous Power Redundancy Supported)
|
| Power consumption |
PoE: Max. 12.95/7.86 W (IR on/off)
DC 12V: Max. 10.8/5.8 W (IR on/off)
AC 24V: Max. 12.5/7.5 W (IR on/off)
|

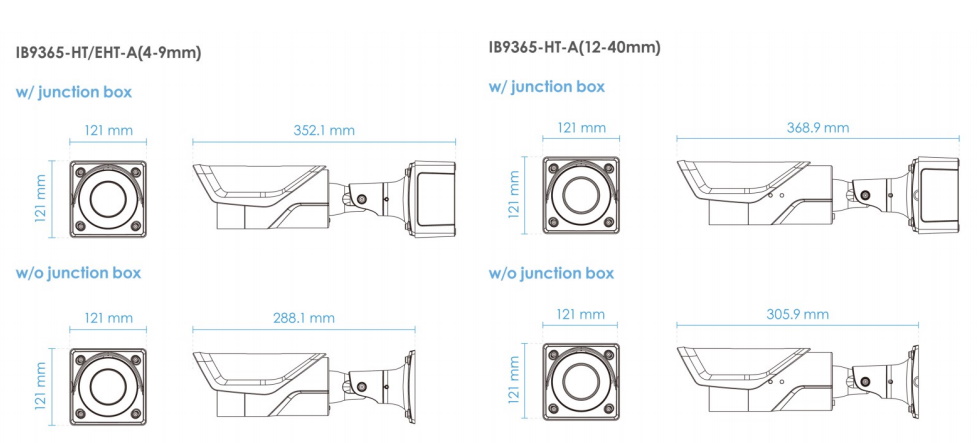

| Dimensions |
IB9365-HT-A (4-9mm):
- Ø 121 x 121 x 352.1 mm (w/ junction box)
- Ø 121 x 121 x 288.1 mm (w/o junction box)
IB9365-HT-A (12-40mm):
- Ø 121 x 121 x 368.9 mm (w/ junction box)
- Ø 121 x 121 x 305.9 mm (w/o junction box)
|
| Weight |
IB9365-HT-A (4-9mm): 1.3 kg
IB9365-HT-A (12-40 mm): 2.0 kg
|
| Certifications |
EMC: CE (EN 55032 Class A, EN 55024, EN 50121-4), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Environment: IK10 (IEC 62262), IP66/67 (IEC 60529)
IA: BIS (IS 13252) for IB9365-HT-A (4-9mm/12-40mm)
*IK10 (Metal Housing)
|
| Operating Temperature |
Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F)
Working Temperature (IR off): -30°C ~ 60°C (-22°F ~ 140°F)
Working Temperature (IR on): -30°C ~ 50°C (-22°F ~ 122°F)
|
| Humidity |
98% |
| Warranty |
36 Months |
| System Requirements |
|
| Operating System |
Microsoft Windows 10/8/7
Mac 10.12 (Chrome only) |
| Web Browser |
Chrome 58.0 or above
Internet Explorer 11 |
| Other Players |
VLC: 1.1.11 or above
|
| Included Accessories |
|
| Packing Contents |
Quick installation guide, screw pack, alignment sticker, desiccant bag, waterproof accessory bag, junction box, sunshield
|
