AM-21M

L-shape Bracket

Supported Models
  • V01: IT9389-H, IT9389-HT, IT9360-H, IT9380-H
  • V02: IT9389-H, IT9389-HT, IT9360-H, IT9380-H, FD9366-HV
  • V03: IT9389-H-v2, IT9360-H, IT9380-H, FD9366-HV, FD9369
  • Model
  • AM-21M
  • P/N
  • 100217600G (V01)
  • 100217601G (V02)
  • 100217602G (V03)
  • Material
  • Aluminum Alloy
  • Color
  • White
  • Dimensions
  • 135 (L) x 110 (W) x 60 (H) mm
  • Weight
  • 354 g
  • Box Dimension
  • 171 (L) x 125 (W) x 66 (H) mm (1pc)
  • Box Weight
  • 438 g
  • Carton Dimension
  • 531 (L) x 351 (W) x 195 (H) mm (20pcs)
  • Carton Weight
  • 9,606 g
  • Note
  • This product is recommended for general outdoor environments, excluding coastal areas with high salinity.
  • QIG Download

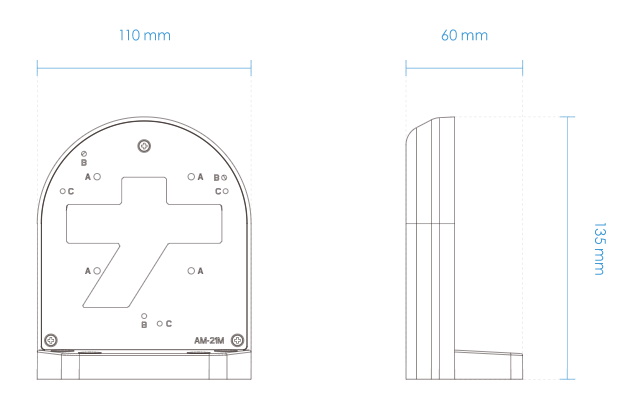

    Dimension
