AE-23E-v2

Outdoor Enclosures - Supreme Series

Key Features

  • IEEE 802.3bt PoE Complaint
  • Weather-proof IP68-rated Enclosure
  • Vandal-proof IK10-rated Cast Aluminum Housing
  • Window Demister Heater and Fan
  • Adjustable Sunshield
  • Side-Opening Alarm Switch
  • VAIR Illuminators (Optional)


  • Model
  • AE-23E-v2
  • P/N
  • 900060000G
  • Input Voltage
  • IEEE 802.3 bt
  • PoE 50~57VDC
  • Power Output
  • PoE 802.3 at*1
  • DC 24V*1
  • Max. Output Power Budget
  • 25W through 30W PoE PSE
  • 48W through 60W PoE PSE
  • 72W through 95W PoE PSE
  • Optional IR LEDs
  • AI-106: 6W, 10~40°, 40~100 m
  • AI-108: 24W, 10° ~ 30°, 70 ~ 200 m
  • AI-109: 48W, 10~40°, 150~350 m
  • Power Consumption
  • Window Heater: 10W
  • Fan: 2W
  • Others: 2W
  • Optional 10L Water Tank & Pump
  • -
  • Operating Temperature
  • -20°C ~ 65°C (-4°F ~ 149°F)
  • -20°C ~ 50°C (-4°F ~ 122°F) (IR ON)
  • Windows Heater ON/OFF
  • ≤ 30°C (86°F) ON
  • ≥ 35°C (95°F) OFF
  • Fan ON/OFF
  • ≥ 40°C (104°F) ON
  • ≤ 35°C (95°F) OFF
  • Waterproof IP Rating
  • IP68
  • Vandal Proof
  • IK10
  • Impact Rated on Cast
  • Aluminum Housing
  • Supported Cameras
  • All VIVOTEK Box Cameras
  • Included Accessories
  • Quick Installation Guide, Screw Kit, Wall Mount Bracket (AM-21E), Sunshield (AE-2S1)
  • Mount Type
  • Wall Mount
  • Ceiling Mount
  • Corner Mount
  • Standing Mount
  • Optional Accessories
  • Wall Mount Bracket: AM-21D
  • Ceiling Mount Bracket: AM-11F
  • Standing Mount Bracket: AM-811
  • Pole Mount Bracket: AM-314, AM-315
  • Corner Mount Bracket: AM-414
  • VAIR IR LEDs: AI-106, AI-108, AI-109
  • Datasheet Download
    QIG Download

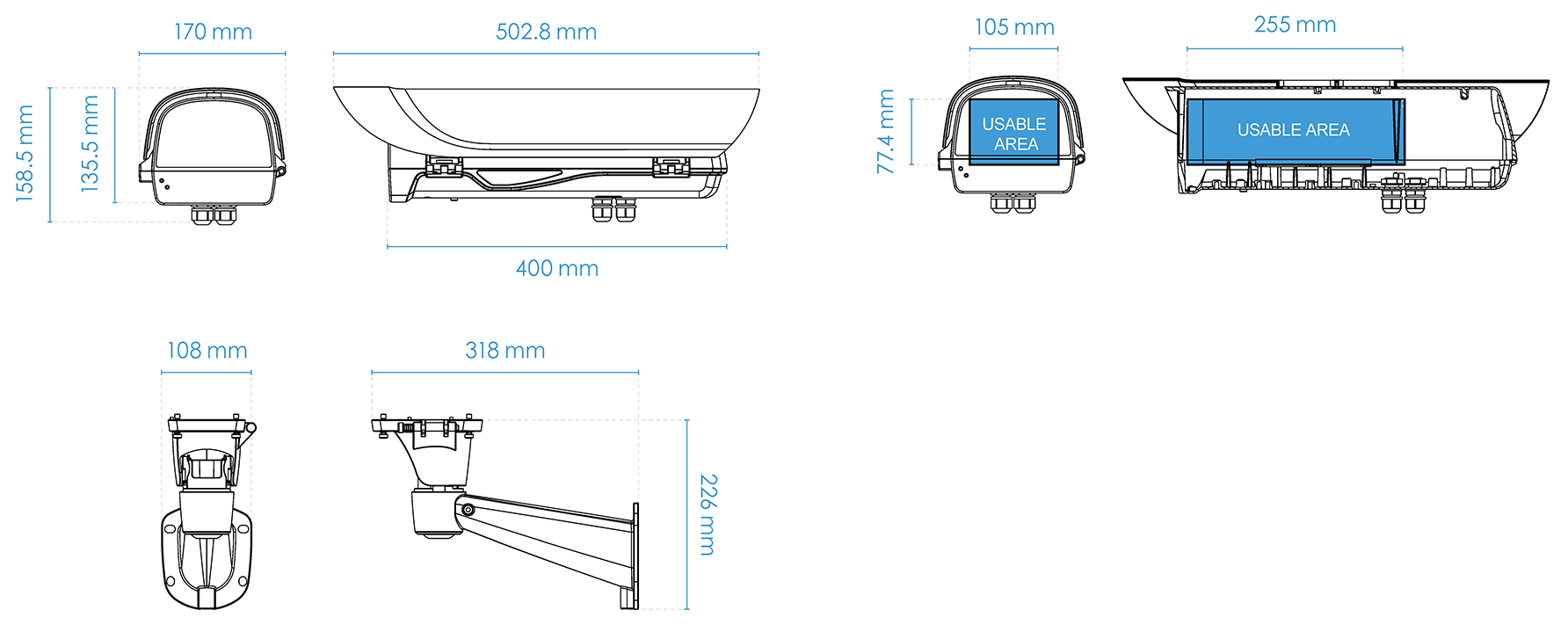

    Dimension
