AU-001

Network Horn Speaker

Key Features

  • All Metal Housing & Clear Sound
  • Dust and Water Tight – IP66
  • Powered from the IP Network Cable Using PoE+
  • Remote configuration and Firmware upgrade by HTTPS


  • Model
  • AU-001
  • Product Information
    Rated Impedance
  • 8 ohm
  • Average Min. Power
  • 20 W
  • Voice coil Former
  • Kapton Bobbin spherical polyimide 16 ohm
  • Frequency Ranges
  • 330 Hz~ 8000 Hz
  • Max. SPL 1W / 1M
  • 106 dB
  • Material
  • Aluminum cast powder painting
  • Microphone
  • 100Hz-16KHz Single point, SPL-44 ± 2db AT 2 KΩ
  • LED Luminous
  • 1x LED display status
  • Network
    SIP Support
  • RFC 3261(SIP base standard)
  • Interface
  • WAN: RJ-45x1, 10/100Mbps Fast Ethernet port
  • Supported Protocols
  • SIP, IPv4/v6, RIPv2 / OSPF, HTTPS, QoS DSCP, FTP, TFTP, SNMP v2c / v3, SNMP, IGMP, DHCP, SSHv2, PIM- DVMRP, RMON
  • Audio Codec
  • G.711 a/uLaw, G.726, G.722, G.729, iLBC, L16
  • Support Function
  • Auto provision, Audio tone testing, System log
  • Security
  • Password protection, IP address filter, user access log, authentication
  • VAST 2 Integration (Extension License Required)
    Two-way Communication
  • Supported
  • Automatic Trigger Audio Clips
  • Supported
  • General
    Casing
  • Robust aluminum, IP-66 water/dust proof
  • Power
  • PoE+ (Power over Ethernet), IEEE 802.3at
  • Operating Temperature
  • -35°C ~ 60°C (-95°F ~ 140°F)
  • Dimensions
  • 280 x 200 x 280 mm (11 x 7 x 11 inch)
  • Weight
  • 1.95 kg (4.3lbs)
  • Certifications
  • CE, FCC, LVD EN62368-1
  • Warranty
  • 24 months
  • PDF
    Datasheet Download
    QIG Download
    Manual Download

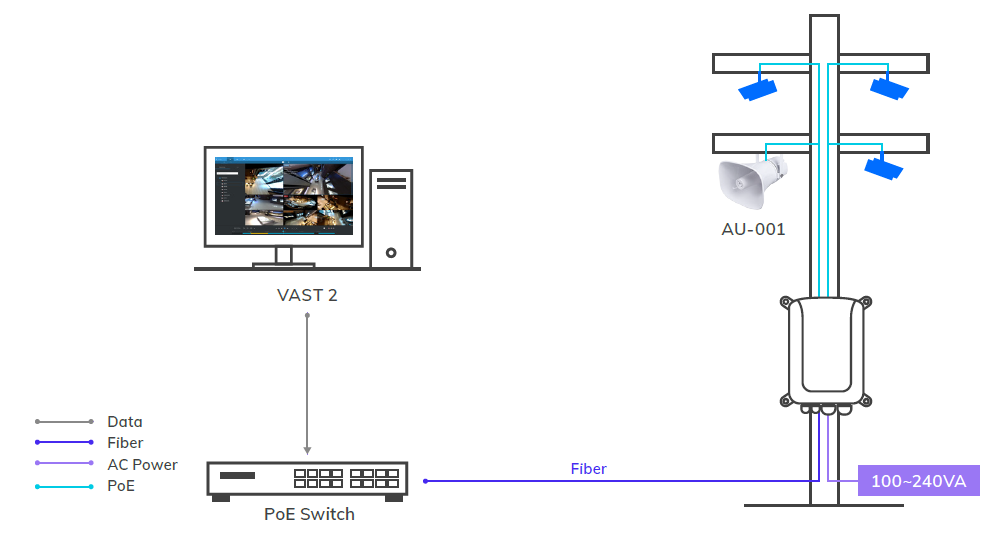

    System Architecture
