The SD9366-EHL is the latest professional speed dome camera with wiper from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 150M IR illuminators and a 30x optical zoom lens, the SD9366-EHL provides a superb low light image in the most challenging situations. The camera also adopts VIVOTEK's latest Smart IR II technology, Vari-Angle IR. VIVOTEK's Vari-Angle IR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.

The SD9366-EHL is the PTZ surveillance camera with IR Illumination to utilize H.265 compression technology. When combined with VIVOTEK's Smart Stream II technology users can obtain bandwidth savings of up to 80%* compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, Vari-Angle IR, WDR, and 30x optical zoom, the SD9366-EHL is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week.

VIVOTEK further strengthened the camera performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9366-EHL has a wide operating temperature range from -50°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9366-EHL ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required.

* Depending on scene

Feature

  • Real-time H.265, H.264 and MJPEG Compression (Triple Codec)
  • 60 fps @ 1080p Full HD
  • 30x Zoom Lens
  • 150M IR with Smart IR II (Vari-Angle IR)
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Weather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing
  • -50°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions (AC24V/PoH)
  • Smart Stream II to Optimize Bandwidth Efficiency
  • EIS (Electronic Image Stabilization) to Control Image Stability
  • Easy Cleaning with Built-in Wiper
    • System Information
    Model
  • SD9366-EHL(with Bracket, IO Cable): 30x, 150M IR
  • SD9366-EHL(without Bracket, IO Cable): 30x, 150M IR
    		•
    CPU
  • Multimedia SoC (System-on-Chip)
    		•
    Flash
  • 128 MB
    		•
    RAM
  • 512 MB
    		•
    Camera Features
    Image sensor
  • 1/3" progressive CMOS
    		•
    Max. Resolution
  • 1920x1080 (2MP)
    		•
    Lens Type
  • 30x Optical Zoom, Auto Focus
    		•
    Focal Length
  • f = 4.3 ~ 129 mm (30x zoom)
    		•
    Aperture
  • F1.6 ~ F4.7
    		•
    Iris Type
  • DC-iris
    		•
    Field of View
  • 59° ~ 2° (Horizontal)
  • 45° ~ 2° (Vertical)
  • 71° ~ 3° (Diagonal)
    		•
    Shutter Time
  • 1/8 sec. to 1/30,000 sec.
    		•
    WDR Technology
  • WDR Pro
    		•
    Day/Night
  • Yes
    		•
    Removable IR-cut Filter
  • Yes
    		•
    IR Illuminators
  • Built-in 850nm IR Illuminators up to 150 meters with Smart IR II, IR LED*2
    		•
    Minimum Illumination
  • 0.42 lux @ F1.6 (Color)
  • 0.01 lux @ F1.6 (B/W)
  • 0 lux with IR illumination on
    		•
    Pan Speed
  • 0.1° ~ 300°/sec.
    		•
    Pan Range
  • 360° endless
    		•
    Tilt Speed
  • 0.1° ~ 300°/sec.
    		•
    Tilt Range
  • 220° (-110° ~ +110°)
    		•
    Preset Locations
  • 256 preset locations, 128 presets per tour
    		•
    Pan/ Tilt/ Zoom Functionalities
  • 128x digital zoom (4x on IE plug-in, 32x built-in)
  • Auto pan mode
  • Auto patrol mode
    		•
    Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
    		•
    Video
    Video Compression
  • H.265, H.264, MJPEG
    		•
    Maximum Frame Rate
  • H.265 & H.264: 60 fps @ 1920x1080
  • MJPEG: 30 fps @ 1920x1080
    		•
    Maximum Streams
  • 4 video streams (Up to 9 configurable profiles)
    		•
    S/N Ratio
  • 54 dB
    		•
    Dynamic Range
  • 110 dB
    		•
    Video Streaming
  • Adjustable resolution, quality and bit rate control, Smart Stream II
    		•
    Image Settings
  • Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness
  • White balance, exposure control, gain, backlight compensation, privacy masks (Up to 24)
  • Scheduled profile settings, defog, 3D noise reduction, EIS, HLC
    		•
    Audio
    Audio Capability
  • Two-way Audio (full duplex)
    		•
    Audio Compression
  • G.711
  • G.726
    		•
    Audio Interface
  • External microphone input
  • External line output
    		•
    Network
    Users
  • Live viewing for up to 10 clients
    		•
    Security
  • Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, signed firmware
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • User access log, user account management
    		•
    Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP
  • PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
    		•
    Interface
  • 10 Base-T/100 Base-TX Ethernet (RJ-45)
    • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S, T supported, specification available at www.onvif.org
    		•
    Solution Integration
    Video Motion Detection
  • Five-window video motion detection
    		•
    Auto-Tracking
  • Auto-tracking on moving object
    		•
    VADP Package
  • Trend Micro (3-year free trial), Stratocast
    		•
    Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, digital input, manual trigger
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
    		•
    Event Action
  • Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card, push notification
  • File upload via email, HTTP, FTP, NAS server, SD card
    		•
    General
    Connectors
  • RJ-45 cable connector for 10/100Mbps Network/PoE connection
  • Audio line input
  • Audio line output
  • AC/DC 24V power input
  • Digital input *4
  • Digital output *2
  • RS-485 (Pelco D, Baud rate 2400)* 1
    		•
    LED Indicator
  • System power and status indicator
    		•
    Power input
  • AC 24V, DC 24V, PoH/PoE (95W)
    • (Simultaneous Power Redundancy Supported)
    Power consumption
  • AC/DC 24V: Max. 63/45 W(Heater on/off)
  • PoH/PoE (95W): Max. 70/51 W (Heater on/off)
    		•
    Dimensions
  • 236.45 x 364.2 mm
    		•
    Weight
  • 7.1 kg (with bracket)
  • 5.7 kg (without bracket)
    		•
    Certifications
  • EMC: CE, LVD, FCC Class A, VCCI; Safety: UL; Environment: IK10, IP66, NEMA 4X
    		•
    Operating Temperature
  • Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
  • Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F), DC 24V power input
  • Working Temperature: -50°C ~ 55°C (-58°F ~ 131°F), AC 24V/ PoH(95W) power input
    • *Wiper is functional at 10°C to 55°C (50°F to 131°F)
    Humidity
  • 98% RH (non-condensing)
    		•
    Warranty
  • 36 Months
    		•
    System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
    		•
    Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
    		•
    Other Players
  • VLC: 1.1.11 or above
    		•
    Included Accessories
    Packing Contents
  • Wall mount bracket, I/O cable, screws, waterproof connectors, terminal blocks, quick installation guide
  • Alignment sticker, ground wire, T25 star driver, desiccant bags
    		•
    Datasheets Download
    QIG Download
    User's Manual Download

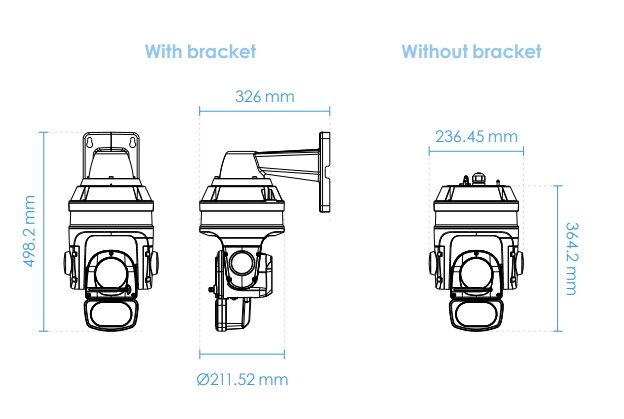

    Dimension
