MD9584-H is the latest professional network camera with 5MP resolution focused on transportation application. Designed specifically for mounting on a vehicle's exterior, the MD9584-H functions either as a side-view camera (also known as a back-mirror camera or DOO camera) or a pantograph monitoring camera if mounted on the roof of the vehicle. In both options, the camera provides the driver with clear view of critical areas for incident monitoring and operational awareness. Also armed with built-in IR illuminators, the MD9584-H is also able to provide superior image quality for up to 50 meters in total darkness.

MD9584-H is compliant with EN50155 and the camera body is protected with IP6K9K, IK10+ and NEMA 4X-rated rugged design, it can withstand harsh operating conditions, including extreme temperatures, shocks, vibration, humidity, dust, and even temperature fluctuations to maintain stable and reliable video during vehicle movement. MD9584-H also features a tempered glass window with internal heater than can provide an optimized view under nearly all environmental conditions.

Feature

  • Designed for Vehicle Exterior Monintoring
  • Support High Resolution up to 30 fps @ 2560x1920
  • Support High Frame Rate up to 60 fps @ 1920x1080
  • H.265 Compression Technology with Smart Stream III
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Built-in IR Illuminators, Effective up to 50 Meters
  • Weather-proof IP6K9K/IP68-rated, Vandal-proof IK10+ and NEMA 4X-rated Housing
  • De-icing Function with Front Glass
  • EN50155 2017 OT4 Compliance for Professional Mobile Surveillance
  • Cyber Protection via Trend Micro IoT Security
  • System Information
    Model
  • MD9584-H(3.6mm)
  • MD9584-H(6mm)
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 8 GB
  • RAM
  • 2 GB
  • Camera Features
    Image sensor
  • 1/2.7" progressive CMOS
  • Max. Resolution
  • 2560x1920 (5MP)
  • Lens Type
  • Fixed-focal
  • Focal Length
  • MD9584-H(3.6mm): f = 3.6 mm
  • MD9584-H(6mm): f = 6 mm
  • Aperture
  • MD9584-H(3.6mm): F2.0
  • MD9584-H(6mm): F2.0
  • Iris Type
  • Fixed-iris
  • Field of View
  • MD9584-H(3.6mm):
    • 83° (Horizontal)
    • 61° (Vertical)
    • 111° (Diagonal)
  • MD9584-H(6mm):
    • 50° (Horizontal)
    • 37° (Vertical)
    • 63° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • IR Illuminators
  • Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
  • Minimum Illumination
  • MD9584-H(3.6mm):
    • 0.1 lux @ F2.0 (Color)
    • 0.01 lux @ F2.0 (B/W)
    • 0 lux with IR illumination on
  • MD9584-H(6mm):
    • 0.1 lux @ F2.0 (Color)
    • 0.01 lux @ F2.0 (B/W)
    • 0 lux with IR illumination on
  • Tilt range
  • 0~30°
  • Rotation range
  • ±90°
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 30 fps @ 2560x1920
  • 60 fps @ 1920x1080
  • Maximum Streams
  • 3 simultaneous streams (Up to 8 configurable profiles)
  • S/N Ratio
  • MD9584-H(3.6mm:): 55 dB
  • MD9584-H(6mm:): 80 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and bit rate, Smart Stream III
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • Illuminators: illuminators, anti-overexposure
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, EIS, scene mode (SignalLight,RailTrack)
  • Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  • Privacy mask, Scheduled profile settings
  • Audio
    Audio Capability
  • Two-way audio (Full duplex)*
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • External microphone input*
  • External line output*
  • * Requires optional cable
    Network
    Users
  • Live viewing for up to 10 clients
  • Security
  • AAccess list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot
  • Signed firmware, user access log, user account management
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP
  • PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface
  • 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded)
  • ONVIF
  • Profile G, S, T supported, specification available at www.onvif.org
  • Solution Integration
    Smart Motion Detection
  • Five-window video motion detection, people detection, time filter
  • VADP Package
  • Smart Motion Detection, Trend Micro (3-year free trial)
  • Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, digital input, manual trigger, motion detection
  • Periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Event Action
  • Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card, push notification
  • File upload via email, HTTP, FTP/SFTP, NAS server, SD card
  • General
    Connectors
  • M12 4pin D-coded, Female connector for 10/100Mbps Network/PoE connection
  • M12 5pin A-coded, Male connector for DC 24V heater
  • External Microphone input *
  • External line output *
  • Digital input *
  • Digital output*
  • * Requires optional cable
    LED Indicator
  • System power and status indicator
  • Power input
  • Camera: IEEE 802.3af PoE Class 0
  • Heater: DC 24V
  • Power consumption
  • Camera: Max. 10.26 W/ 6.08 W (IR on/off)
  • Heater: 24 W
  • Dimensions
  • 122 x 180 x 59 mm
  • Weight
  • 812 g
  • Certifications
  • EMC: CE (EN 55035, EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
  • Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
  • Environment: IK10+ (IEC 62262), IP68/6K9K (IEC 60529), NEMA (NEMA 250 Type 4X)
  • Railway: EN 50155: 2017 (OT4/ST1) , EN 50121-3-2:2016, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:2010, EN 45545-2, IEC 60571 Ed 3.0,IEC 62236-3-2 Ed 3.0)
  • Vehicles: ECE R118; BI: BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
  • Operating Temperature
  • Starting Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
  • Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) (IR on)
  • Working Temperature: -40°C ~ 70°C (-40°F ~ 158°F) (IR off)
  • Storage Temperature
  • -40°C ~ 70°C (-40°F ~ 158°F)
  • Humidity
  • 98% RH (non-condensing)
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, alignment sticker, screwdriver, accessories bag
  • Datasheets Download
    QIG Download
    User's Manual Download

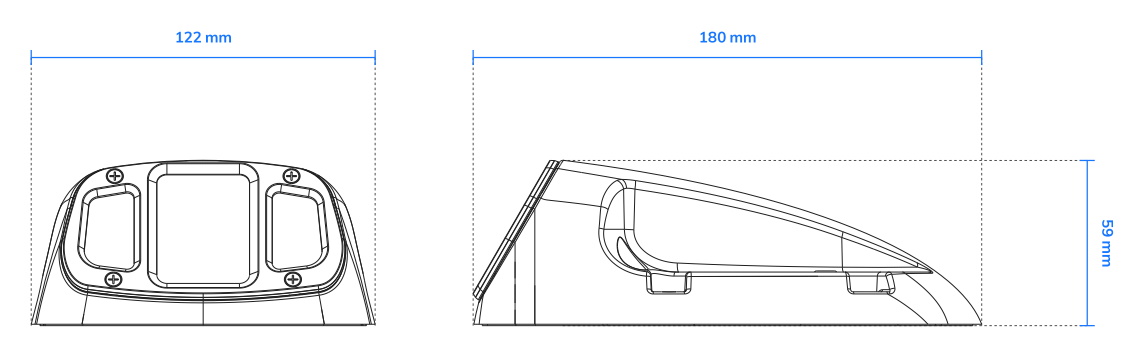

    Dimension
