VIVOTEK’s IP9191-HP is a professional H.265 box network camera offering true 3840x2160 resolution at 30 fps. With ultra HD resolution at 30 frames per second, this camera is capable of delivering clear and detailed images for a variety of applications such as city surveillance, transportation and industrial monitoring.

With the most up to date VIVOTEK Smart Stream III technology, the IP9191-HP delivers excellent images while keeping bandwidth and storage levels to a minimum. VIVOTEK's self-developed algorithm brings video compression into the next level and reduces the 4K image compression size to even smaller than a 2-Megapixel image size.

The IP9191-HP also employs VIVOTEK’s SNV and WDR Pro technologies which allows the camera to capture the highest quality images in both low light and high contrast environments. Furthermore, if combined with VIVOTEK’s AE Series Enclosure and equipped with the AL-248 (12~50mm) lens, the IP9191-HP is an outstanding choice for long-range outdoor applications, capable of delivering exceptional images even from surveillance objects over 100 meters away.

Feature

  • H.265 Compression Technology
  • 30 fps @ 3840x2160 (WDR Pro on), 120 fps @ 1920x1080 (WDR Pro off)
  • Smart Stream III to Optimize Bandwidth Efficiency
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Remote Back Focus for Easy Focus Adjustments
  • DIS (Digital Image Stabilization)
  • Video Rotation for Corridor View
  • Lens Profile for Camera Quality Optimization
  • Trend Micro IoT Security
  • System Information
    Model
  • IP9191-HP
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 128 MB
  • RAM
  • 1 GB
  • Camera Features
    Image sensor
  • 1/2" Progressive CMOS
  • Max. Resolution
  • 3840x2160 (4K/8MP)
  • Lens Type
  • Vari-focal, Remote Back Focus
  • Focal Length
  • f = 3.9 ~ 10 mm
  • Aperture
  • F1.5 ~ F2.7
  • Iris Type
  • P-iris (DC-iris reserved)
  • Field of View
  • 45° ~ 119° (Horizontal)
  • 25° ~ 63° (Vertical)
  • 52° ~ 142° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • Minimum Illumination
  • 0.02 lux @ F1.5 (Color)
  • 0.01 lux @ F1.5 (B/W)
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Slot type: MicroSD/SDHC/SDXC card slot
  • Seamless Recording
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 30 fps @ 3840x2160 (WDR Pro on)
  • 120 fps @ 1920x1080 (WDR Pro off)
  • Maximum Streams
  • 3 simultaneous streams
  • S/N Ratio
  • 60.5 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and bit rate control, Smart Stream III
  • Image Settings
  • Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance
  • Exposure control, gain, backlight compensation, AE speed, privacy masks, scheduled profile settings
  • HLC, defog, 3D noise reduction, DIS, video rotation, lens profile
  • Audio
    Audio Capability
  • Two-way Audio (full duplex)
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • External microphone input
  • External line output
  • Network
    Users
  • Live viewing for up to 10 clients
  • Protocols
  • 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP
  • PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Supported, specification available at www.onvif.org
  • Solution Integration
    Video Motion Detection
  • Five-window video motion detection
  • Alarm and Event
    Event Trigger
  • Motion detection, manual trigger, digital input, periodical trigger, system boot
  • Recording notification, camera tampering detection, audio detection, SD card life expectancy
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Event Action
  • Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
  • File upload via email, HTTP, FTP, NAS server, SD card
  • General
    Connectors
  • RJ-45 cable connector for 10/100/1000Mpbs Network/PoE connection
  • Audio input
  • Audio output
  • DC 12V/AC 24V power input
  • Digital input*2
  • Digital output*2
  • RS-485
  • LED Indicator
  • System power and status indicator
  • Power input
  • DC 12V
  • AC 24V
  • IEEE 802.3af PoE Class 0
  • Power consumption
  • Max 12 W
  • Dimensions
  • 151 x 70 x 61 mm (w/o lens)
  • 209 x 70 x 61 mm (w/ lens)
  • Weight
  • 671 g (w/o lens)
  • 743 g (w/ lens)
  • Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick, UL
  • Operating Temperature
  • Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Humidity
  • 90%
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, warranty card, lens, camera stand, screw pack
  • Datasheets Download
    QIG Download
    User's Manual Download

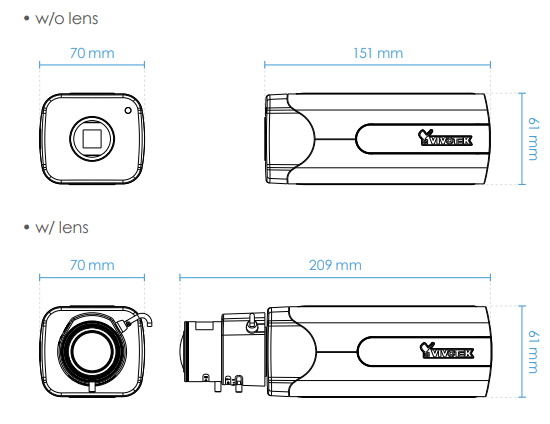

    Dimension
