VIVOTEK’s IP9171-HP is a brand-new professional H.265 box network camera offering up to 30 fps at 3-Megapixel with superb image quality. By combining both H.265 and Smart Stream III, the IP9171-HP can reduce both bandwidth and storage consumption by up to 90%* while maintaining the high standard of image quality. This unique combination of high resolution and low storage consumption make the IP9171-HP suitable for a wide range of video surveillance applications, including government and industrial buildings, retail environments, airports, railway stations and schools.

Additionally, employing WDR Pro, a True WDR allows the camera to capture both the dark and bright areas of an image, combining the differences to create a highly realistic representation of the original scene. Further improving the IP9171-HP’s range of operating conditions, SNV technology makes high-quality full-color surveillance video possible under low-light conditions. Together, these features enable the camera to provide video quality strikingly close to the capabilities of the human eye. Further enhancing the camera’s ability to adapt to its environment, precise software controls maintain the iris opening of the IP9171-HP's lens at an optimal level at all times, resulting in superior sharpness as well as depth of field. Finally, the IP9171-HP is also endowed with VIVOTEK's RBF (Remote Back Focus) System, empowering the installer to adjust focus both precisely and with greater flexibility.

*Depending on scenes

Feature

  • 30 fps @ 2048x1536
  • H.265 Compression Technology
  • P-iris Lens
  • Smart Stream III to Optimize Bandwidth Efficiency
  • WDR Pro, a True WDR for Unparalleled Visibility in High Contrast Environments
  • Remote Back Focus for Easy Focus Adjustments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Video Rotation for Corridor View
  • Lens Profile to Ensure the Full Compatibility for Different Lens Options
  • Gigabit Ethernet for High Speed of Transmission
  • System Information
    Model
  • IP9171-HP
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 128 MB
  • RAM
  • 512 MB
  • Camera Features
    Image sensor
  • 1/2.8" Progressive CMOS
  • Max. Resolution
  • 2048x1536 (3MP)
  • Lens Type
  • Vari-Focal, Remote Back Focus via UI
  • Focal Length
  • f = 2.8 ~ 8 mm
  • Aperture
  • F1.2 ~ F1.95
  • Iris Type
  • P-iris
  • Field of View
  • 51° ~ 114° (Horizontal)
  • 39° ~ 84° (Vertical)
  • 63° ~ 143° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/16,000 sec.
  • WDR Technology
  • WDR Pro, a True WDR
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • Minimum Illumination
  • 0.01 lux @ F1.2 (Color)
  • 0.001 lux @ F1.2 (B/W)
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Slot type: MicroSD/SDHC/SDXC card slot
  • Seamless Recording
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • H.265, H.264: 30 fps @ 2048x1536
  • MJPEG: 15 fps @ 2048x1536
  • Maximum Streams
  • 3 simultaneous streams
  • S/N Ratio
  • 60 dB
  • Dynamic Range
  • True WDR, 100 dB
  • Video Streaming
  • Adjustable resolution, quality and bit rate control, Smart Stream III
  • Image Settings
  • Timestamp, text overlay, flip & mirror configurable brightness/contrast/saturation/sharpness, white balance
  • Exposure control, gain, backlight compensation, privacy masks scheduled profile settings
  • video rotation, 3D noise reduction, defog, snapshot focus, lens profile, DIS
  • Audio
    Audio Capability
  • Two-way Audio (full duplex)
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • External microphone input
  • External line output
  • Network
    Users
  • Live viewing for up to 10 clients
  • Protocols
  • 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP
  • PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Supported, specification available at www.onvif.org
  • Solution Integration
    Video Motion Detection
  • Five-window video motion detection
  • Alarm and Event
    Event Trigger
  • Motion detection, manual trigger, digital input, periodical trigger, system boot
  • Recording notification, camera tampering detection, audio detection
  • Event Action
  • Event notification using digital output, HTTP, SMTP, FTP, NAS server, SD card, push notification
  • File upload via HTTP, SMTP, FTP, NAS server and SD card
  • General
    Connectors
  • RJ-45 cable connector for 10/100/1000Mpbs Network/PoE
  • Audio input
  • Audio output
  • DC 12V power input
  • AC 24V power input
  • Digital input*3
  • Digital output*1
  • RS-485
  • LED Indicator
  • System power and status indicator
  • Power input
  • DC 12V
  • AC 24V
  • IEEE 802.3af PoE Class 2
  • Power consumption
  • Max 8.6 W
  • Dimensions
  • 210 (D) x 70 (W) x 63 (H) mm
  • Weight
  • 623 g
  • Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick, UL
  • Operating Temperature
  • Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Humidity
  • 90%
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
  • Included Accessories
    CD
  • User's manual, quick installation guide, Shepherd, VAST
  • Packing Contents
  • Quick installation guide, mounting bracket, screw pack, lens
  • Datasheets Download
    QIG Download
    User's Manuals Download

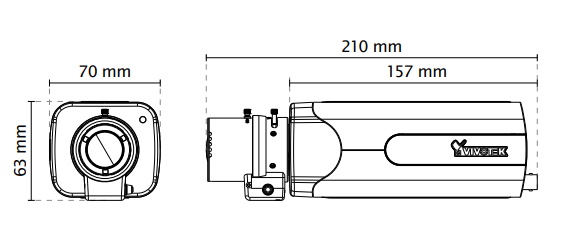

    Dimension
