VIVOTEK’s IP9167-HP is a brand-new professional H.265 box network camera designed for diverse surveillance applications. Equipped with a 2-Megapixel sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps. By utilizing VIVOTEK's sophisticated Smart Stream III, the camera is able to optimize quality for desired regions and thus ensure maximum efficiency of bandwidth usage. Combining both H.265 and Smart Stream III, the IP9167-HP can reduce both bandwidth and storage consumption by up to 90%*.

Additionally, employing WDR Pro allows the camera to capture both the dark and bright areas of an image, combining the differences to create a highly realistic representation of the original scene. Further improving the camera’s range of operating conditions, SNV technology makes high quality full color surveillance video possible under low-light conditions.

Together, these features enable the camera to provide video quality strikingly close to the capabilities of the human eye. Further enhancing the camera’s ability to adapt to its environment, precise software controls maintain the iris opening of the IP9167-HP’s lens at an optimal level at all times, resulting in superior sharpness as well as depth of field.

* Depending on scenes

Feature

  • H.265 Compression Technology
  • 30 fps @ 1920x1080
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Smart Stream III to Optimize Bandwidth Efficiency
  • DIS (Digital Image Stabilization) to Control Image Stabilization
  • Video Rotation for Corridor View
  • Lens Profile to Ensure the Full Compatibility for Different Lens Options
  • Trend Micro IoT Security
  • VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package)
  • System Information
    Model
  • IP9167-HP
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 128 MB
  • RAM
  • 512 MB
  • Camera Features
    Image sensor
  • 1/2.8" Progressive CMOS
  • Max. Resolution
  • 1920x1080 (2MP)
  • Lens Type
  • Vari-focal, Manual Focus, CS-mount
  • Iris Type
  • P-iris/DC-iris
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • Minimum Illumination
  • 0.07 lux @ F1.6 (Color)
  • 0.01 lux @ F1.6 (B/W)
  • *Depends on lens aperture
    Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Slot type: MicroSD/SDHC/SDXC card slot
  • Seamless Recording
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 30 fps @ 1920x1080
  • Maximum Streams
  • 3 simultaneous streams
  • S/N Ratio
  • 61 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and bit rate control, Smart Stream III
  • Image Settings
  • Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance
  • Exposure control, gain, AE speed, backlight compensation, privacy masks, scheduled profile settings
  • HLC, defog, 3D noise reduction, DIS, video rotation, lens profilee
  • Audio
    Audio Capability
  • Two-way Audio (full duplex)
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • External microphone input
  • External line output
  • Network
    Users
  • Live viewing for up to 10 clients
  • Protocols
  • 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP
  • PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Supported, specification available at www.onvif.org
  • Solution Integration
    Video Motion Detection
  • Five-window video motion detection
  • Alarm and Event
    Event Trigger
  • Motion detection, manual trigger, digital input, periodical trigger, system boot
  • Recording notification, camera tampering detection, audio detection, SD card life expectancy
  • Event Action
  • Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
  • File upload via email, HTTP, FTP, NAS server, SD card
  • General
    Connectors
  • RJ-45 cable connector for 10/100Mpbs Network/PoE connection
  • Audio input
  • Audio output
  • DC 12V power input
  • Digital input*2
  • Digital output*2
  • RS-485
  • LED Indicator
  • System power and status indicator
  • Power input
  • DC 12V
  • IEEE 802.3af PoE Class 2
  • Power consumption
  • Max 6.5 W
  • Dimensions
  • 151 (D) x 70 (W) x 61 (H) mm
  • Weight
  • 590 g
  • Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50121-4
  • Operating Temperature
  • Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Humidity
  • 90%
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, warranty card, camera stand, screw pack
  • Datasheets Download
    QIG Download
    User's Manual Download

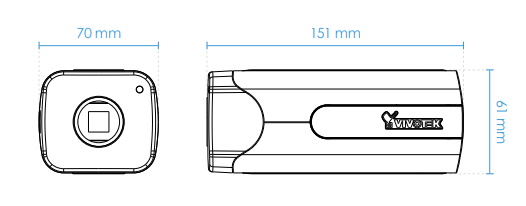

    Dimension
