VIVOTEK’s IP9165-LPR camera is embedded 60mph (90kmph) license plate recognition software supporting white-lists and black-lists for advanced license plate verification. It can read the license plates of multiple countries or states simultaneously (e.g., Singapore and Malaysia; Texas, Oklahoma and neighboring states). Besides, the IP9165-LPR offers various APIs for integration with 3rd party systems to fulfill different applications such as city surveillance, living communities, expressway, and toll management. Featuring with the new evidence function can be combined with a snapshot of the connecting camera through the RTSP stream, providing the road overview and LPR result images simultaneously to reinforce the strength of evidence.

Feature

  • Embedded LPR Software for Urban/Road Applications
  • Supports License Plates from over 70+ Countries
  • Black and White Lists for License Plate Verification
  • Centralized List Management in Single Camera
  • Taking Snapshots from Another Related Overview Camera as Evidence Images
  • Fully Integrated with VAST 2
  • Various Open APIs Available for 3rd Party Integration
  • System Information
    Model
  • IP9165-LPR(9-50mm)
  • IP9165-LPR(12-40mm)
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 512 MB
  • RAM
  • 1 GB
  • Camera Features
    Image sensor
  • 1/2" progressive CMOS
  • Max. Resolution
  • 1920x1080 (2MP)
  • Lens Type
  • Vari-focal, Remote Focus, i-CS
  • Focal Length
  • f = 9 ~ 50 mm [IP9165-LPR (9-50mm)]
  • f = 12 ~ 40 mm [IP9165-LPR (12-40mm)]
  • Aperture
  • F1.5 [IP9165-LPR (9-50mm)]
  • F1.8 ~ F2.3 [IP9165-LPR (12-40mm)]
  • Iris Type
  • i-CS [IP9165-LPR (9-50mm)]
  • P-iris [IP9165-LPR (12-40mm)]
  • (DC-iris reserved)
    Field of View
  • IP9165-LPR (9-50mm):
    • 8.3° ~ 42.8° (Horizontal)
    • 4.7° ~ 24.3° (Vertical)
    • 9.46° ~ 48.9° (Diagonal)
  • IP9165-LPR (12-40mm):
    • 11.6° ~ 34.2° (Horizontal)
    • 6.6° ~ 18.7° (Vertical)
    • 13.3° ~ 39.8° (Diagonal)
  • Shutter Time
  • 1/60 sec. to 1/16,000 sec.
  • WDR Technology
  • WDR Pro II
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • Minimum Illumination
  • IP9165-LPR (9-50mm): 0.01 lux @ F1.5 (Color)
  • IP9165-LPR (12-40mm): 0.08 lux @ F1.8 (Color)
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Built-in 32GB MicroSD card for LPR images
  • Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity:128GB)
  • Seamless Recording
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 60 fps @ 1920x1080
  • Maximum Streams
  • 4 simultaneous streams
  • S/N Ratio
  • 66.2 dB
  • Dynamic Range
  • 140 dB
  • Video Streaming
  • Adjustable resolution, quality and constant bit rate control, Smart Stream III
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • IR control: illuminators, spectrum mode, anti-overexposure
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, Lens distortion correction, DIS, scene mode (LPC-parking, LPC-street)
  • Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  • Focus: zoom, focus
  • Privacy mask, Scheduled profile settings
  • Audio
    Audio Capability
  • Two-way Audio (full duplex)
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • External microphone input
  • External line output
  • Network
    Users
  • Live viewing for up to 10 clients
  • Security
  • Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • User access log, user account management
  • Protocols
  • Camera:
    • 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTCIP, NTP
    • PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Urban ANPR package:
    • Socket client, Socket server, ONVIF event, FTP/FTPS, HTTP/HTTPS
  • Interface
  • 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S supported, specification available at www.onvif.org
  • Solution Integration
    Video Motion Detection
  • Five-window video motion detection
  • Embedded Software
  • VIVOTEK ANPR
  • VADP Package
  • Trend Micro IoT Security
  • Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, digital input, manual trigger, motion detection
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
  • Event Action
  • Camera:
    • Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
    • File upload via email, HTTP, FTP, NAS server, SD card
  • ANPR Software:
    • Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, send event to Milestone VMS, wiegand protocol supported
  • General
    Connectors
  • RJ-45 cable connector for 10/100/1000Mpbs Network/PoE connection
  • Audio input
  • Audio output
  • DC 12V/AC 24V power input
  • Digital input*2
  • Digital output*2
  • RS485*1
  • BNC*1
  • LED Indicator
  • System power and status indicator
  • Power input
  • AC 24V
  • DC 12V
  • IEEE 802.3af PoE Class 0
  • (Power Redundancy)
    Power consumption
  • PoE: Max. 9.06 W
  • DC 12V: Max. 9 W
  • AC 24V: Max. 18 W
  • Dimensions
  • IP9165-LPR (9-50mm): 263 (D) x 78 (W) x 84 (H) mm
  • IP9165-LPR (12-40mm): 203 (D) x 70 (W) x 61 (H) mm
  • Weight
  • 680 g (w/o lens)
  • 790 g (w/ lens)
  • Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick, UL
  • Operating Temperature
  • Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
  • Humidity
  • 90% RH (non-condensing)
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, warranty card, lens, camera stand, screw pack
  • Datasheets Download
    QIG Download
    User's Manual Download

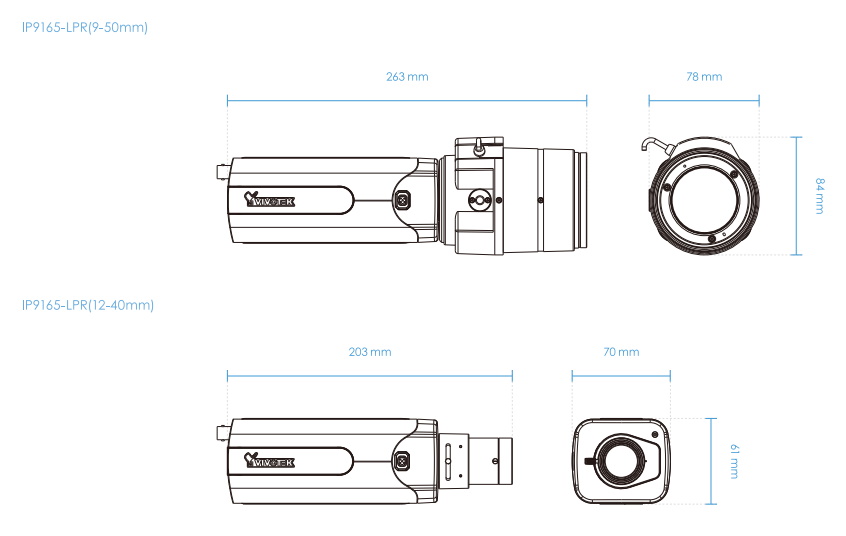

    Dimension
