VIVOTEK’s IP9165-LPC-v2 Kit is embbed powerful new generation SoC with 2GB RAM and 8GB Storage represents a total solution for LPC (License Plate Capture) applications by leveraging the top tier image quality and traffic monitoring ability of the IP9165-LPC-v2 box camera. The IR Illuminator utilizing CVA Tech provides adjustable beam angles for different distances. The Headlight filter is implemented to reduce instances of glare from direct headlight contact. The IP9165-LPC-v2 Kit delivers clear license plate images for reliable recognition, in both the sunniest days, and in the darkest nights.

Empowered with VIVOTEK Scene Mode, which provides different exposure levels to avoid overexposure in some lighting conditions, the IP9165-LPC-v2 Kit can capture clear plate images from the vehicles moving at speeds of up to 110MPH (180km).

Value-added features such as i-CS (intelligent-CS) lens, EIS (Electric Image Stabilization) and remote IR beam angle adjustment ensure that the IP9165-LPC-v2 Kit can be easily installed and adjusted to provide the perfect LPR solution. Further, with the high-resolution images supporting a wide range of up to two lanee, the IP9165-LPC-v2 Kit is also the most economic solution in LPR applications.

Feature

  • Capture Vehicle Speed up to 110MPH (180km/hr)
  • One Camera Covers Both Scene Overview & LPC View
  • Supreme Anti-Glare Capability
  • One Camera Covers Dual Lanes
  • Easy Installation and Low Maintenance with i-CS Lens and Remote IR
  • i-CS Lens and Remote Controllable IR Illuminator for Clear Images and Easy Installation
  • Certified by Numerous LPR Software Manufacturers around the World
  • Vandal-Proof IK10-rated and Weather-Proof IP68-rated Housing
  • System Information
    Model
  • IP9165-LPC-v2 Kit (Street, 9-50mm, i-CS)
  • IP9165-LPC-v2 Kit (Street, 12-40mm)
  • IP9165-LPC-v2 Kit (Highway, 9-50mm, i-CS)
  • IP9165-LPC-v2 Kit (Highway, 12-40mm)
  • Max. Speed
  • Highway: 110MPH (180 km/hr)
  • Street: 60MPH (90 km/hr)
  • IR Threshold
  • IR on: 300 lux
  • IR off: 600 lux
  • RS485 configurable
  • Shutter Time
  • Street: 60MPH (90 km/hr).
  • Street: 1/1,000 to 1/10,000 sec.
  • Max. Shutter Time
  • 1/5 to 1/32,000 sec.
  • Illuminators
  • Highway: CA80I8-2040 *1, 80W, 20° ~ 40° remote control beam angle
  • Street: AI-109 *1, 48W, 10° ~ 30° remote control beam angle, embedded IR illuminator
  • Capture Range
  • Up to 35 meters
  • *Suggested Distance: 10 ~ 20 m
    Captured Lanes
  • Highway:
    • Road-side: 2 Lanes
    • Gantry: 2 Lanes
  • Street:
    • Road-side: 1 Lane
    • Gantry: 2 Lanes
  • *Suggested width per lane: 3.5 ~ 4M
    Power Input
  • AC/DC 24V
  • Power Consumption
  • Highway:
    • Max. 110W (AC 24V / DC 24V)
    • Suggested Power: AC 24V or DC 24V/5A
  • Street:
    • Max. 110W (AC 24V / DC 24V)
    • Suggested Power: DC 24V or AC 24V/3.5A
  • Weight
  • 9-50mm:
    • Highway: 6.66 kg
    • Street: 6.38 kg
  • 12-40mm:
    • Highway: 6.48 kg
    • Street: 6.2 kg
  • Housing
  • Weather-proof IP68-rated housing
  • Vandal-proof IK10-rated housing
  • Operating Temperature
  • Starting Temperature: 0°C ~ 60°C (32°F ~ 140°F)
  • Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F)
  • Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater
  • Humidity
  • 90%(non-condensing)
  • Video
    Compression
  • H.265, H.264, MJPEG
  • Maximum Streams
  • 3 simultaneous streams
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • Illuminators: illuminators, anti-overexposure
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur)
  • Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  • Focus: zoom, Remote focus(i-CS), Remove back focus
  • Privacy mask, Scheduled profile settings
  • Network
    Users
  • Live viewing for up to 10 clients
  • Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP
  • PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, SFTP, TCP/IP, TLS 1.2, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S, T supported, specification available at www.onvif.org
  • Solution Integration
    Video Motion Detection
  • Five-window video motion detection
  • Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, digital input, manual trigger, motion detection
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
  • Event Action
  • Event notification via audio clip, camera link, digital output, email, HTTP, FTP/SFTP, NAS server, SD card
  • File upload via email, HTTP, FTP/SFTP, NAS server, SD card
  • General
    Smart Focus System
  • Remote Focus with i-CS lens
  • RBF (Remote Back Focus) reserved
  • IP Camera Connectors
  • RJ-45 cable connector for 10/100/1000Mbps Network/PoE connection
  • Audio input
  • Audio output
  • AC 24V power input *1
  • DC 12V power input*1
  • Digital input *2
  • Digital output *2
  • RS485*1
  • BNC *1
  • Safety Certifications
  • IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL/CUL, BIS, BSMI
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • System Information
    Model
  • IP9165-LPC-v2 Kit(9-50mm, i-CS)
  • IP9165-LPC-v2 Kit(12-40mm)
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 8 GB
  • RAM
  • 2 GB
  • Camera Features
    Image sensor
  • 1/2" progressive CMOS
  • Max. Resolution
  • 1920x1080 (2MP)
  • Lens Type
  • 9-50mm: Vari-f ocal, Remote Focus(i-CS)
  • 12-40mm: Vari-focal, Manual Focus
  • Focal Length
  • f = 9 ~ 50 mm
  • f = 12 ~ 40 mm
  • Aperture
  • 9-50mm: F1.5 ~ F1.6
  • 12-40mm: F1.8 ~ F2.3
  • Iris Type
  • 9-50mm: i-CS
  • 12-40mm: P-iris
  • (i-CS/P-iris/DC-iris all reserved)
    Field of View
  • 9-50mm:
    • 42.8° ~ 8.3° (Horizontal)
    • 24.3° ~ 4.7° ~ (Vertical)
    • 48.9° ~ 9.46° (Diagonal)
  • 12-40mm:
    • 34.2° ~ 11.6° (Horizontal)
    • 18.7° ~ 6.6° (Vertical)
    • 39.8° ~ 13.3° (Diagonal)
  • WDR Technology
  • WDR Pro II
  • Day/Night
  • Removable IR-cut filter for day & night function
  • (Headlight filter design for Anti-Glare)
    Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • On-board Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
  • Video
    Maximum Frame Rate
  • 60 fps @ 1920x1080
  • S/N Ratio
  • 66.2 dB
  • Dynamic Range
  • 140 dB
  • Audio
    Audio Capability
  • Two-way Audio (full duplex)
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • External microphone input
  • External line output
  • General
    Model
  • CA80I8-2040: IP9165-LPC-v2 Kit (Highway), 80W, 20° ~ 40° remote adjustable
  • AI-109: IP9165-LPC-v2 Kit (Street), 48W, 10° ~ 30° remote adjustable
  • Max. Distance
  • CA80I8-2040: 170 ~ 280 meters
  • AI-109: 150 ~ 350 meters
  • Beam Angle
  • CA80I8-2040: 20° ~ 40° remote adjustable
  • AI-109: 10° ~ 30° remote adjustable
  • Power Input
  • CA80I8-2040: 24VDC ±10%, 24VAC(50/60Hz) ±10%
  • AI-109: 24VAC/28VDC with AE-23A enclosure
  • Power Consumption
  • CA80I8-2040: 80W
  • AI-109: 48W
  • Weight
  • CA80I8-2040: 2.1 kg
  • AI-109: 1.2 kg
  • Housing
  • Weather-proof IP68-rated housing
  • Vandal-proof IK10-rated housing
  • Operating Temperature
  • CA80I8-2040: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
  • AI-109: -40 °C ~ 50 °C (-40°F ~ 122°F)
  • Color
  • CA80I8-2040: Black
  • AI-109: White
  • Wavelength
  • 850nm
  • Dimensions
  • CA80I8-2040: 220 x 160 x 73 mm
  • AI-109: 135 x 106 x 111 mm
  • Included Accessories
  • CA80I8-2040: U-Type Bracket (134 × 34 × 81.5 mm)
  • Certifications
  • CA80I8-2040: IEC 62471, EN 50130-4, CE: EN61000-6-3, EN60598-1, EN60598-2-5, FCC Class A, EN60529
  • AI-109: CE, FCC class B, EN62471
  • Integrated Control
  • Built-in photocell for automatic IR on/off
  • Datasheets Download
    QIG Download

    Suggested Installation

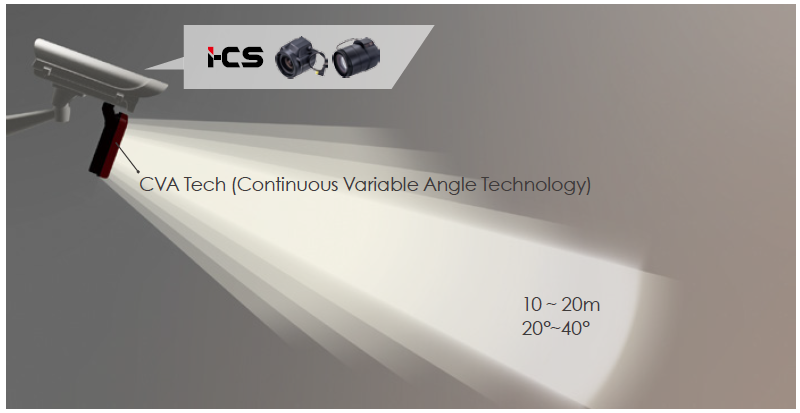

    i-CS
