VIVOTEK IP8365EH is a professional outdoor bullet network camera offering 30 fps @ 2-Megapixel resolution with superb image quality.
Featuring the Wide Dynamic Range Technology WDR Pro, it provides improved visibility in the extremely dark & light environment. Combined with 3D Noise Reduction Technology, which enables the IP8365EH to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can identify an increased level of image details in pretty bright as well as dark environments.
Additionally, as a professional day/night camera, IP8365EH adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on the changes of light in the ambient environment.
To provide top-notch image quality, IP8365EH also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Therefore, IP8365EH is also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment.
The camera's IP67-rated housing is designed to protect the camera body from being immersed in the water, even against the immersion at the depth of at least 1m. Additionally, the wide temperature range further enhances the IP8365EH performance and reliability in extremely cold and hot weather.
Feature
| CPU | Multimedia SoC (System-on-Chip) |
|---|---|
| Flash | 256 MB |
| RAM | 384 MB |
| Image sensor | 1/2.8" Progressive CMOS |
| Maximum Resolution | 1920x1080 (2MP) |
| Lens Type | Vari-focal, remote focus |
| Focal Length | f = 3 ~ 9 mm |
| Aperture | F1.2 (wide), F2.3 (tele) |
| Auto-iris | P-iris |
| Field of View |
39° ~ 89° (horizontal) 22° ~ 49° (vertical) 44° ~ 103° (diagonal) |
| Shutter Time | 1/5 sec. to 1/10,000 sec. |
| WDR Technology | WDR Pro |
| Day & Night |
Removable IR-cut filter for day & night function Smart IR Technology to Avoid Overexposure |
| Minimum Illumination |
0.39 Lux @ F1.2, 50 IRE ( Color ) 0.001 Lux @ F1.2, 50 IRE ( B/W ) |
| Pan / Tilt / Zoom | ePTZ: 48x digital zoom (4x on IE plug-in,12x built in) |
| IR Illuminators |
Built-in IR illuminators, effective up to 30 meters IR LED*4 with Smart IR Technology |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video Compression | H.264,MJPEG |
| Maximum Frame Rate | 30 fps @ 1920x1080 |
| Maximum Streams | 2 simultaneous streams |
| S/N Ratio | Above 62 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D Noise Reduction, EIS |
| Audio Capability | Audio input/output (full duplex) |
| Audio Compression | AAC, G.711, G.726 |
| Audio Interface |
External microphone input Audio output |
| Network Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| ONVIF | Supported, specification available at www.onvif.org |
| Interface | 10Base-T/100 BaseTX Ethernet (RJ-45) |
| Video Motion Detection | Triple-window video motion detection |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events |
Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| Smart Focus System | Remote focal & focus control |
| Connectors |
RJ-45 cable connector for Network/PoE connection Audio input/output AV output AC 24V power input DC 12V power input Digital input*1 Digital output*1 |
| LED Indicator | System power and status indicator |
| Power input |
DC12V/AC24V IEEE 802.3af PoE |
| Power consumption |
DC Max. 30W (Heater on) 8W (Heater off) AC Max. 30W (Heater on) 8.8W (Heater off) PoE Max. 11W |
| Dimensions | Ø: 85mm x 219 mm |
| Weight |
Net: 1,314g (Body only) Net: 1,911g (with stand and sunshield) |
| Casing | Weather-proof IP67-rated housing |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
| Operating Temperature |
Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F) PoE: -10°C ~ 50°C (14°F ~ 122°F) Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F) |
| Warranty | 24 months |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Browser |
Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7/8/9/10 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |

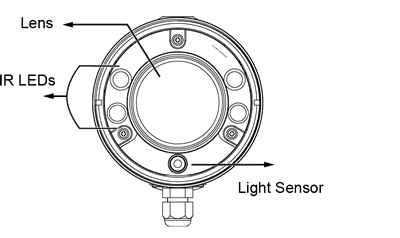

Product Front View

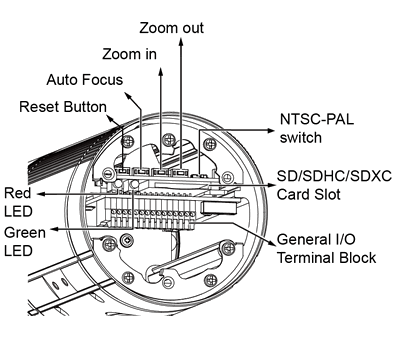

Product Rear View
