VIVOTEK IP8364-C is a best-in-class, bullet-style network camera designed for diverse outdoor applications. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the IP8364-C is an all-in-one outdoor camera capable of capturing high quality and high resolution video up to 2 Megapixel.

In order to adapt to constantly changing outdoor lighting conditions, the IP8364-C features a removable IR-cut filter as well as IR illuminators effective up to 20M for superior image quality around the clock. For protection against harsh outdoor environments, the camera is encased in an IP66-rated housing and weather-proof casing to withstand rain and dust. The IP8364-C further strengthens the robustness of the camera by protecting the cable within the bracket.

The IP8364-C supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264 & MJPEG compatibility all included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. The streams can also be individually configured to meet different needs or bandwidth constraints, thereby further optimizing bandwidth and storage.

Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXCcard slot, and VIVOTEK's 32-channel recording software, the IP8364-C is the ideal solution for your outdoor surveillance needs.

Feature

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • Removable IR-cut Filter for Day and Night Function
  • Built-in IR Illuminators, Effective up to 20 Meters
  • Weather-proof IP66-rated Housing
  • Mounting Bracket with Cable Management
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • 3D Noise Reduction
  • CPU Multimedia SoC (System-on-Chip)
    Flash 128 MB
    RAM 256 MB
    Image sensor 1/2.7" Progressive CMOS
    Maximum Resolution 1920x1080
    Lens Type Fixed-focal
    Focal Length f = 6 mm
    Aperture F1.6
    Field of View 59° (horizontal)
    32° (vertical)
    70° (diagonal)
    Shutter Time 1/5 sec. to 1/32,000 sec.
    Day & Night Removable IR-cut filter for day & night function
    Minimum Illumination 0.18 Lux @ F1.6, 50 IRE ( Color )
    0.001 Lux @ F1.6, 50 IRE ( B/W )
    Pan / Tilt / Zoom ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
    IR Illuminators Built-in IR illuminators, effective up to 30 meters
    IR LED*24, High Power IR LED*2
    On-board Storage MicroSD/SDHC/SDXC card slot
    Video Compression H.264, MJPEG
    Maximum Frame Rate 30 fps @ 1920x1080
    Maximum Streams 2 simultaneous streams
    S/N Ratio Above 53 dB
    Video Streaming Adjustable resolution, quality and bit rate
    Configurable video cropping for bandwidth saving
    Image Settings Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings
    3D Noise Reduction
    Network Users Live viewing for up to 10 clients
    Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
    ONVIF Supported, specification available at www.onvif.org
    Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
    Video Motion Detection Triple-window video motion detection
    Alarm Triggers Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
    Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server
    Connectors RJ-45 for Network/PoE connection
    Digital input*1
    LED Indicator System power and status indicator
    Power input IEEE 802.3af PoE Class 3
    Power consumption Max 7 W (PoE)
    Dimensions Ø: 60 mm x 294 mm
    Weight Net: 1190 g
    Casing Weather-proof IP66-rated housing
    Mounting bracket with cable management
    Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick
    Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F~122°F)
    Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
    Warranty 24 months
    Operating System Microsoft Windows 8/7/Vista/XP/2000
    Browser Mozilla Firefox 7~10 (Streaming only)
    Internet Explorer 7/8/9/10
    Other Players VLC: 1.1.11 or above QuickTime: 7 or above
    Datasheets Download
    User's Manuals Download

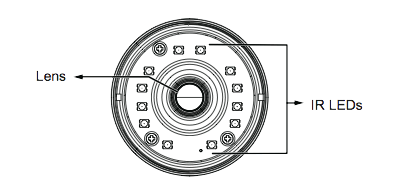

    Product Front View

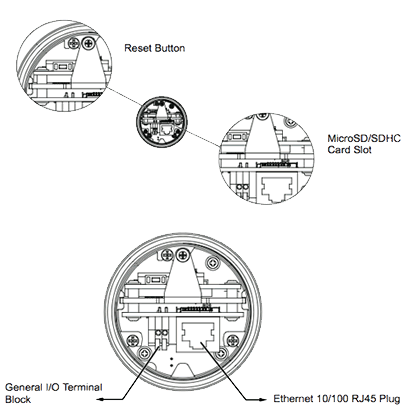

    Product Rear View
