System Information |
|
Model |
IB9387-EHT
|
CPU |
Multimedia SoC (System-on-Chip) |
Flash |
256 MB |
RAM |
1 GB |
Camera Features |
|
Image sensor |
1/2.7" progressive CMOS |
Max. Resolution |
2560x1920 (5MP) |
Lens Type |
Motorized, Vari-focal, Remote Focus |
Focal Length |
f = 2.7 ~ 13.5 mm
|
Aperture |
F1.4 ~ F2.8
|
Auto-iris |
P-iris
|
Field of View |
30° ~ 100° (Horizontal)
23° ~ 72° (Vertical)
38° ~ 135° (Diagonal)
|
Shutter Time |
1/5 sec. to 1/32,000 sec. |
WDR Technology |
WDR Pro |
Day/Night |
Yes |
Removable IR-cut Filter |
Yes |
IR Illuminators |
Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*6
|
Minimum Illumination |
0.06 lux @ F1.4 (Color)
< 0.01 lux @ F1.4 (B/W)
0 lux with IR illumination on
|
Pan range |
350° |
Tilt range |
90° |
Rotation range |
180° |
Pan/ Tilt/ Zoom Functionalities |
ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
|
Storage |
Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording
|
Video |
|
Video Compression |
H.265, H.264, MJPEG |
Maximum Frame Rate |
30 fps @ 2560x1920
30 fps @ 2560x1440
60 fps @ 1920x1080
|
Maximum Streams |
3 simultaneous streams |
S/N Ratio |
50 dB
|
Dynamic Range |
120 dB |
Video Streaming |
Adjustable resolution, quality and bit rate control, Smart Stream III |
Image Settings |
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog, deblur, metering
|
Audio |
|
Audio Capability |
Two-way Audio (full duplex) |
Audio Compression |
G.711
G.726 |
Audio Interface |
External microphone input
External line output |
Network |
|
Users |
Live viewing for up to 10 clients |
Protocols |
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP
PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
Interface |
10 Base-T/100 Base-TX Ethernet (RJ-45)
* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
ONVIF |
Supported, specification available at www.onvif.org |
Solution Integration |
|
Smart Motion Detection |
Five-window video motion detection, people detection, time filter |
Smart VCA |
Intrusion detection, loitering detection, line crossing detection, unattended object detection
Missing object detection, face detection, crowd detection, running detection
*Please access https://license.vivotek.com/ to get the free trial license. |
VADP Package |
Stratocast, Trend Micro IoT Security, Deep Learning VCA (Smart Motion Detection, Smart VCA) |
Alarm and Event |
|
Event Trigger |
Motion detection, manual trigger, digital input, periodical trigger, system boot
Recording notification, camera tampering detection, audio detection, shock detection, SD card life expectancy
Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
|
Event Action |
Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card |
General |
|
Connectors |
RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
AC 24V power input (optional)
DC 12V power input
Digital input*1
Digital output*1
|
LED Indicator |
System power and status indicator
|
Power input |
IEEE 802.3at PoE Class 4
DC 12V
AC 24V (optional)
(Redundant Power)
|
Power consumption |
PoE: Max. 23.3/12 W (Heater on/off)
DC 12V: Max. 19/10 W (Heater on/off)
AC 24V: Max. 21.8/11.5 W (Heater on/off)
|

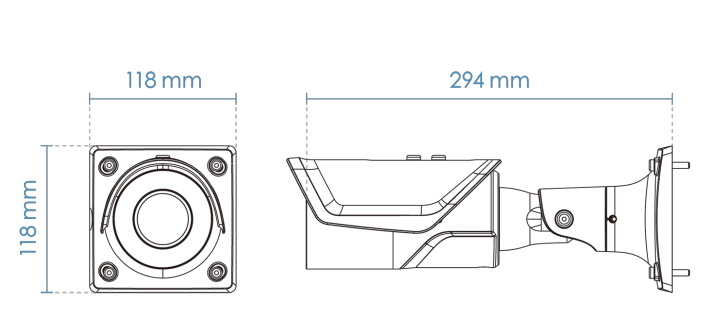

Dimensions |
118 x 118 x 294 mm
|
Weight |
1,254 g
|
Casing |
IP66, IP67, IK10 (Metal Housing)
|
Certifications |
CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
|
Operating Temperature |
Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature (IR off): -50°C ~ 60°C (-58°F ~ 140°F)
Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F)
|
Humidity |
90% |
Warranty |
36 Months |
System Requirements |
|
Operating System |
Microsoft Windows 8/7
Mac 10.12 (Chrome only) |
Web Browser |
Chrome 58.0 or above
Internet Explorer 10/11 |
Other Players |
VLC: 1.1.11 or above
|
Included Accessories |
|
Packing Contents |
Quick installation guide, warranty card, screw pack, alignment sticker
|
