The IB9367-EH is the new professional outdoor IR bullet network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 30 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the IB9367-H is capable of capturing the highest quality images in both low light and high contrast environments

The IB9367-EH also offers great image in night time by equipping IR illuminators with effective range up to 30 meters. With an IP66, IP67 and IK10 rated housing, the IB9367-EH is capable of operating under the harshest of conditions.

Additionally, the IB9367-EH employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the IB9367's IP66, IP67 and IK10 rated housing, capable of operating from -50°C to 50°C.

* Depending on scenes

Feature

  • 30 fps @ 1920x1080
  • Smart Stream III to Optimize Bandwidth Efficiency
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
  • -50°C ~ 50°C Wide Temperature Range for Extreme Weather Conditions
  • Trend Micro IoT Security
  • VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package)
  • System Information
    Model
  • IB9367-EH
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 128 MB
  • RAM
  • 512 MB
  • Camera Features
    Image sensor
  • 1/2.8" progressive CMOS
  • Max. Resolution
  • 1920x1080 (2MP)
  • Lens Type
  • Fixed-Focus
  • Focal Length
  • f = 3.6 mm
  • Aperture
  • F1.6
  • Auto-iris
  • Fixed-iris
  • Field of View
  • 88° (Horizontal)
  • 47° (Vertical)
  • 104° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • IR Illuminators
  • Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
  • Minimum Illumination
  • 0.07 lux @ F1.6 (Color)
  • 0.001 lux @ F1.6 (B/W)
  • 0 lux with IR illumination on
  • Tilt range
  • 90°
  • Rotation range
  • 180°
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Slot type: MicroSD/SDHC/SDXC card slot
  • Seamless Recording
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 30 fps @ 1920x1080
  • Maximum Streams
  • 3 simultaneous streams
  • S/N Ratio
  • 58 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and bit rate control, Smart Stream III
  • Image Settings
  • Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness
  • White balance, exposure control, gain, backlight compensation, privacy masks
  • Scheduled profile settings, video rotation, defog, 3D noise reduction, DIS, HLC
  • Audio
    Audio Capability
  • Two-way Audio (full duplex)
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • External microphone input
  • External line output
  • Network
    Users
  • Live viewing for up to 10 clients
  • Protocols
  • 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP
  • PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Supported, specification available at www.onvif.org
  • Solution Integration
    Video Motion Detection
  • Five-window video motion detection
  • VADP Package
  • Genetec Package, Stratocast, Trend Micro IoT Security
  • Alarm and Event
    Event Trigger
  • Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification
  • Camera tampering detection, audio detection, shock detection, SD card life expectancy
  • Event Action
  • Event notification via digital output, email, HTTP, FTP, NAS server, SD card
  • File upload via email, HTTP, FTP, NAS server, SD card
  • General
    Connectors
  • RJ-45 cable connector for 10/100Mpbs Network/PoE connection
  • Audio input
  • Audio output
  • DC 12V power input
  • Digital input *1
  • Digital output *1
  • LED Indicator
  • System power and status indicator
  • Power input
  • DC 12V
  • IEEE 802.3at PoE Class 4
  • (Power Redundancy)
    Power consumption
  • Max. 19 W
  • Dimensions
  • 266 x 118 x 118 mm
  • Weight
  • 1,142 g
  • Casing
  • IP66, IP67, IK10 (Metal Housing)
  • Certifications
  • CE, LVD, FCC Class A, VCCI, C-Tick, UL
  • Operating Temperature
  • Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
  • Humidity
  • 90%
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, warranty card, screw pack, alignment sticker
  • Datasheets Download
    QIG Download
    User's Manual Download

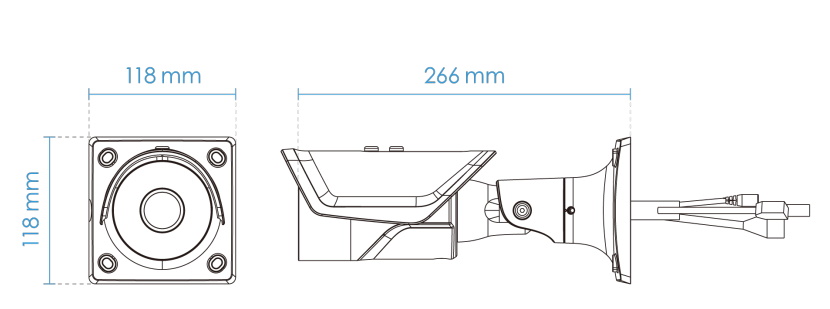

    Dimension
