VIVOTEK’s updated FE9180-H is a low profile fisheye network camera, featuring a detailed 5-Megapixel resolution sensor with superb image quality. At only 94 mm wide, the FE9180-H is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Now equipped with WDR Pro, the FE9180-H is able to provide consistent crystal clear video quality even in high contrast lighting environments. Also with the addition of a built-in microphone, the FE9180-H is more versatile than ever.

Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view without blind spots (ceiling mount), the sleek and discreet FE9180-H is able to provide full video coverage for sensitive areas like retail, hotels, banking, and education. The FE9180-H offers various display layouts, including original surround view, panoramic view, and regional view. Additionally, in both the panoramic and regional viewing modes users can utilize the ultra-smooth ePTZ function to effortlessly zoom in and focus on a region of interest (ROI).

Feature

  • 15 fps @ 1920x1920
  • 1.16 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Smart Stream III to Optimize Bandwidth Efficiency
  • Built-in Microphone
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • ePTZ for Data Efficiency
  • Compact Design
  • VIVOCloud App & Portal for 24/7 Surveillance (manually upload VIVOCloud VADP package)
  • System Information
    Model
  • FE9180-H
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 128 MB
  • RAM
  • 512 MB
  • Camera Features
    Image sensor
  • 1/2.7" Progressive CMOS in 2688x1944
  • Max. Resolution
  • 1920x1920
  • Lens Type
  • Fixed-focal
  • Focal Length
  • f = 1.16 mm
  • Aperture
  • F2.25
  • Iris Type
  • Fixed-iris
  • Field of View
  • 180° (Horizontal)
  • 180° (Vertical)
  • 180° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Minimum Illumination
  • 0.25 lux @ F2.25 (Color), 50IRE
  • 0.13 lux @ F2.25 (Color), 30IRE
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 12x digital zoom (12x on IE plug-in)
  • Storage
  • Seamles Recording to MicroSD/SDHC/SDXC card
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 15 fps @ 1920x1920
  • 30 fps @ 1920x1080
  • Maximum Streams
  • 4 simultaneous streams
  • S/N Ratio
  • 64 dB
  • Dynamic Range
  • 87 dB
  • Video Streaming
  • Adjustable resolution, quality and bit rate control, Smart Stream III
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS
  • Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), WDR
  • Privacy mask, Scheduled profile settings
  • Display Mode
  • Client dewarping
  • Ceiling mounted:
    • 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions
  • Wall mounted:
    • 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions
  • Audio
    Audio Capability
  • One-way Audio
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • Built-in microphone
  • Effective Range
  • 5 meters
  • Network
    Users
  • Live viewing for up to 10 clients
  • Security
  • Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, user access log, user account management
  • Protocols
  • 802.1X, ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP
  • PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S supported, specification available at www.onvif.org
  • Solution Integration
    Video Motion Detection
  • Five-window video motion detection
  • VADP Package
  • Stratocast
  • Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, manual trigger, motion detection
  • Periodical trigger, recording notification, SD card life expectancy, system boot
  • Event Action
  • Event notification via email, HTTP, FTP, NAS server, SD card
  • File upload via email, HTTP, FTP, NAS server, SD card
  • General
    Connectors
  • RJ-45 cable connector for 10/100Mbps Network/PoE connection
  • LED Indicator
  • System power and status indicator
  • Power input
  • IEEE 802.3af PoE Class 1
  • Power consumption
  • Max. 3.6 W
  • Dimensions
  • Ø 94 x 35 mm
  • Weight
  • 140g
  • Certifications
  • EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), KC (KN32, KN35)
  • Safety: UL (UL60950-1), CB (IEC/EN 60950-1)
  • Operating Temperature
  • Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Humidity
  • 90%
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, alignment sticker, screw pack, mounting bracket
  • Datasheets Download
    QIG Download
    User's Manuals Download

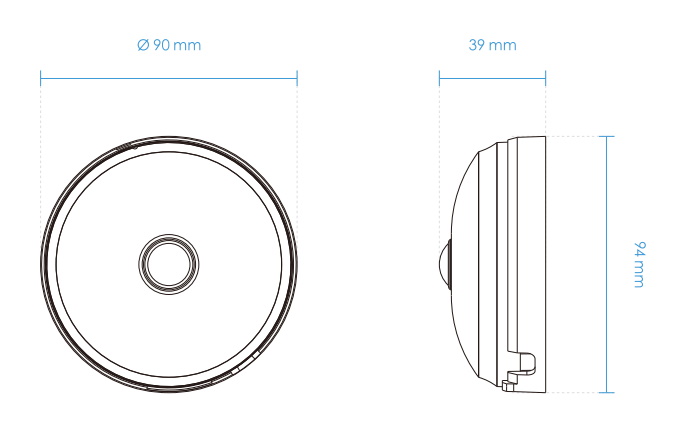

    Dimension
