VIVOTEK FE8173 is the latest fisheye fixed dome network camera from VIVOTEK, featuring a detailed 3-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open indoor areas, such as airports, shopping malls, train stations, retail stores, offices and more.
The FE8173 offers various display layouts, including original surround view, panoramic view, and regional view for various mounting applications. With the latest cutting-edge image processing capabilities, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in both the panoramic as well as regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI). The new cutting-edge pixel calculator function helps the user to ensure the image quality of a desired area.
As with all VIVOTEK true day/night cameras, the FE8173 features a removable IR-cut filter, maintaining clear images 24 hours a day. Together with 802.3af Compliant PoE, MicroSD/SDHC/SDXC card slot for on-board storage, and iViewer app support, the FE8173 is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.
Feature
| CPU | Multimedia SoC (System-on-Chip) |
|---|---|
| Flash | 128 MB |
| RAM | 256 MB |
| Image sensor | 1/2.5" Progressive CMOS sensor in 2560 x 1920 resolution |
| Maximum Resolution | 1536x1536 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.19 mm |
| Aperture | 2.0 |
| Field of View | 180° (horizontal) 180° (vertical) 180° (diagonal)) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR enhanced |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination |
0.2 Lux @ F2.0 ( Color ) 0.001 Lux @ F2.0 ( B/W ) |
| Pan speed |
ePTZ 12x digital zoom ( 12x on IE plug-in ) |
| On-board Storage | SD/SDHC/SDXC card slot |
| Compression | H.264, MJPEG & MPEG-4 |
| Maximum Frame Rate |
In all compression modes: 15 fps at 1920x1920 30 fps at 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 62 dB |
| Dynamic Range | 57 dB |
| Video Streaming | Adjustable resolution, quality and bit rate |
| Image Settings |
Adjustable image size, quality, and bit rate Pixel Calculator Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings |
| Audio Capability | Audio input / Audio output (Full duplex) |
| Compression |
GSM-AMR AAC G.711 |
| Interface |
Built-in microphone input External line output |
| Effective Range | 5 meters |
| Remote users | Live viewing for up to 10 clients |
| Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ICMP, UDP |
| Interface | 10 Base-T / 100BaseTX Ethernet (RJ-45) |
| ONVIF | Supported, specification available at www.onvif.org |
| Video Motion Detection | Five-window video motion detection |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events |
Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
| Connectors |
RJ-45 cable connector for Network/PoE connection Audio input Audio output DC 12V power input Digital input*1 Digital output*1 |
| LED Indicator | System power and status indicator |
| Power input |
12V DC IEEE 802.3af PoE Class 2 |
| Power consumption |
Max. 5.1 W (DC 12V ) Max. 5.3 W (PoE ) |
| Dimensions | Ø: 139 mm x 43 mm |
| Weight | Net: 353 g |
| Safety Certifications | CE C-Tick FCC ( Class A ) LVD UL VCCI |
| Operating Temperature | -25°C ~ 50°C (-13°F ~ 122°F) |
| Warranty | 36 Months |
| Operating System | Microsoft Windows 7/Vista/XP/2000 |
| Browser |
Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x |
| Other Players |
VLC: 1.1.11 or above QuickTime: 7 or above |

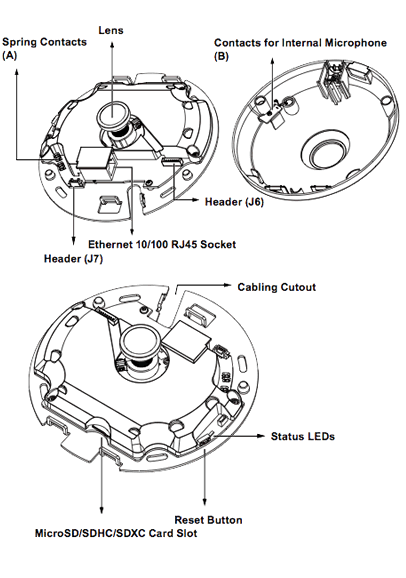

Product Internal View
