VIVOTEK’s FD9389 series is a H.265 outdoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.

The FD9389 series offers various lens options for different user scenarios: fixed focus, manual focus, and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the FD9389 series is encased in IP66 and IK10 housing.

The FD9389 series comes with VIVOTEK's Smart Stream III technology and H.265 codec suppor t. It is capable of reducing bandwidth consumption to 90%* while maintaining supreme image quality. Additionally, VIVOTEK’s VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

* Depending on scenes

Feature

  • 30 fps @ 2560x1920, 60 fps @ 1920x1080 (WDR Pro on)
  • H.265 Compression Technology
  • Smart Stream III to Optimize Bandwidth Efficiency
  • WDR Pro (120 dB) for Unparalleled Visibility in Extremely Bright and Dark Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • Built-in IR illuminators, effective up to 30 meters
  • Smart IR Technology to Avoid Overexposure
  • Trend Micro IoT Security
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • System Information
    Model
  • FD9389-HV
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 128 MB
  • RAM
  • 512 MB
  • Camera Features
    Image sensor
  • 1/2.7" progressive CMOS
  • Max. Resolution
  • 2560x1920 (5MP)
  • Lens Type
  • Fixed-focal
  • Focal Length
  • f= 2.8
  • Aperture
  • F2.0
  • Auto-iris
  • Fixed-iris
  • Field of View
  • 103° (Horizontal)
  • 76° (Vertical)
  • 134° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • IR Illuminators
  • Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*4
  • Minimum Illumination
  • 0.06 lux @ F2.0 (Color)
  • 0.01 lux @ F2.0 (B/W))
  • 0 lux with IR illumination on
  • Pan range
  • 353°
  • Tilt range
  • 80°
  • Rotation range
  • 350°
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 30 fps @ 2560x1920
  • 60 fps @ 1920x1080
  • Maximum Streams
  • 3 video streams (Up to 8 configurable profiles)
  • S/N Ratio
  • 54 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and bit rate control, Smart Stream III
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • Illuminators: illuminators, anti-overexposure
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur)
  • Exposure: BLC, HLC, exposure control, AE speed adjustment, WDR
  • Focus (FD9389-HTV/EHTV): zoom, focus
  • Privacy mask, Scheduled profile settings
  • Audio
    Audio Capability
  • One-way Audio
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • Built-in microphone
  • Effective Range
  • 5 meters
  • Network
    Users
  • Live viewing for up to 10 clients
  • Security
  • Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, signed firmware
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • User access log, user account management
  • Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP
  • PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S, T supported, specification available at www.onvif.org
  • Solution Integration
    Smart Motion Detection
  • Five-window video motion detection, people detection, time filter
  • Smart VCA
  • Intrusion detection, loitering detection, line crossing detection, unattended object detection
  • missing object detection, face detection, crowd detection, running detection
  • VCA
  • Standard VCA (optional)
  • *Including line crossing detection, field detection, loitering detection
    VADP Package
  • Deep Learning VCA (Smart Motion Detection, Smart VCA), Trend Micro IoT Security (3-year free trial)
  • *Smart Motion Detection is only for FD9389-HV/EHV, FD9389-HTV/EHTV.
    Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, manual trigger, motion detection
  • Periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Event Action
  • Event notification via email, HTTP, SMTP, FTP, NAS server and SD card
  • File upload via HTTP, SMTP, FTP, NAS server and SD card
  • General
    Connectors
  • RJ-45 cable connector for 10/100Mpbs Network/PoE connection
  • LED Indicator
  • System power and status indicator
  • Power input
  • IEEE 802.3af PoE Class 0
  • Power consumption
  • Max. 8.7 W (IR on)
  • Max. 5.7 W (IR off)
  • Dimensions
  • Ø 129 x 94 mm
  • Weight
  • 610 g
  • Certifications
  • EMC: CE (EN55032 Class B, EN55024, EN61000-3), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32), VCCI (VCCI-CISPR 32 Class B)
  • Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
  • Environment: IK10 (IEC 62262), IP66/67 (IEC 60529)
  • IA: BIS (IS 13252) for FD9389-HV
  • Operating Temperature
  • Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
  • Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  • Humidity
  • 90%
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, alignment sticker, screw pack
  • Datasheets Download
    QIG Download
    User's Manual Download

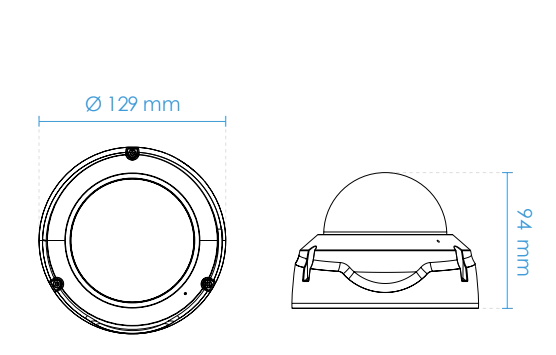

    Dimension
