VIVOTEK’s FD9189-v2 series is a H.265 indoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9189-v2 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.

The FD9189-v2 series offers two lens options for different user scenarios: fixed-focal and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility.

The FD9189-v2 series comes with VIVOTEK's Smart Stream III technology and H.265 codec support. It is capable of reducing bandwidth consumption to 90%* while maintaining supreme image quality. Additionally, VIVOTEK's VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.

* Depending on scenes

Feature

  • 30 fps @ 2560x1920, 60 fps @ 1920x1080
  • WDR Pro (120 dB) for Improved Visibility in High Contrast Scenes
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Smart IR Technology to Avoid Overexposure
  • Trend Micro IoT Security
  • 2.8 ~ 10mm Motorized Lens
  • System Information
    Model
  • FD9189-HT-v2
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 8 GB
  • RAM
  • 1 GB
  • Camera Features
    Image sensor
  • 1/2.7" progressive CMOS
  • Max. Resolution
  • 2560x1920 (5MP)
  • Lens Type
  • Motorized, Vari-focal, Remote Focus
  • Focal Length
  • f= 2.8 ~ 10 mm
  • Aperture
  • F1.8 ~ F2.74
  • Auto-iris
  • Fixed-iris
  • Field of View
  • 95° ~ 41° (Horizontal)
  • 69° ~ 31° (Vertical)
  • 127° ~ 51° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • IR Illuminators
  • Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*4
  • Minimum Illumination
  • 0.06 lux @ F1.8 (Color)
  • 0.01 lux @ F1.8 (B/W))
  • 0 lux with IR illumination on
  • Pan range
  • > 350°
  • Tilt range
  • 80°
  • Rotation range
  • ±175°
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
  • Built-in Installation Aids
  • Remote focus, remote zoom
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 30 fps @ 2560x1920
  • 60 fps @ 1920x1080
  • Maximum Streams
  • 3 video streams (Up to 8 configurable profiles)
  • S/N Ratio
  • 55 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and constant bit rate control, Smart Stream III
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • Illuminators: illuminators, anti-overexposure
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur)
  • Exposure: BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  • Focus: zoom, focus
  • Privacy mask, Scheduled profile settings
  • Audio
    Audio Capability
  • One-way Audio
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • Built-in microphone
  • Effective Range
  • 5 meters
  • Network
    Users
  • Live viewing for up to 10 clients
  • Security
  • Access list, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • User access log, user account management
  • Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP
  • PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S, T supported, specification available at www.onvif.org
  • Solution Integration
    Smart Motion Detection
  • Five-window video motion detection, human detection, time filter (Without bounding box)
  • Smart VCA
  • Intrusion detection, loitering detection, line crossing detection, unattended object detection
  • Missing object detection, face detection, crowd detection, running detection
  • VADP Package
  • Deep Learning VCA (Smart Motion Detection, Smart VCA*), Trend Micro IoT Security (3-year free trial)
  • *License required. Free trial license is not supported.
    Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, manual trigger, motion detection
  • Periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Event Action
  • Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card
  • File upload via email, HTTP, FTP/SFTP, NAS server, SD card
  • General
    Connectors
  • RJ-45 cable connector for 10/100Mpbs Network/PoE connection
  • LED Indicator
  • System power and status indicator
  • Power input
  • IEEE 802.3af PoE Class 0
  • Power consumption
  • Max. 9.7 W (IR on)
  • Max. 7.3 W (IR off)
  • Dimensions
  • Ø 130 x 95 mm
  • Weight
  • 355 g
  • Certifications
  • EMC: CE (EN55032, EN55024 Class B, E50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B)
  • Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
  • IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
  • Operating Temperature
  • Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
  • Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) (IR off)
  • Working Temperature: -10°C ~ 45°C (14°F ~ 113°F) (IR on)
  • Humidity
  • 90% RH (non-condensing)
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, alignment sticker, screw pack
  • Datasheets Download
    QIG Download
    User's Manual Download

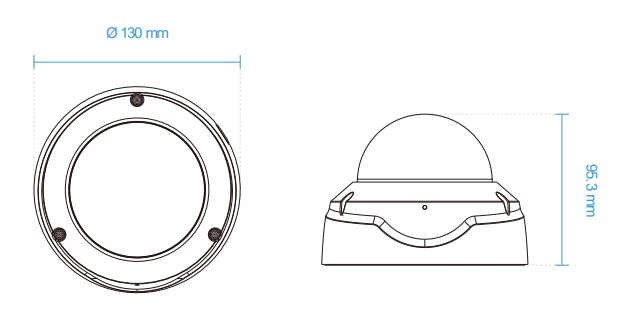

    Dimension
