VIVOTEK FD8363 is a professional outdoor dome network camera, offering 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As with other true day/night models, the camera comes with a removable IR-cut filter and 15-meter IR illuminators to provide great clarity 24 hours a day. It is especially suitable for monitoring wide open outdoor areas such as building entrances, airports, or applications requiring accurate identification.
For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus, VIVOTEK has introduced the revolutionary Smart Focus System, including Easy Focus Button and Remote Focus to make installation and image adjustment easier. VIVOTEK has adopted lenses with a built-in stepper motor that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance.
The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions, while its metal vandal-proof housing effectively provides robust protection from vandalism. With other advanced features such as WDR enhanced, tamper detection, 802.3af Compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, video cropping, and e-PTZ functionality, the FD8363 provides the most robust solution suitable for demanding outdoor environments.
Feature
CPU | Multimedia SoC (System-on-Chip) |
---|---|
Flash | 128 MB |
RAM | 256 MB |
Image sensor | 1/2.7" Progressive CMOS |
Maximum Resolution | 1920x1080 |
Lens Type | Vari-focal, remote focus |
Focal Length | f = 3 ~ 9 |
Aperture | 1.2 (wide), 2.1 (tele) |
Auto-iris | DC-iris |
Field of View | 38° ~ 104° (horizontal) 22° ~ 71° (vertical) 43° ~ 111° (diagonal) |
Shutter Time | 1/5 sec. to 1/32,000 sec. |
WDR Technology | WDR enhanced |
Day & Night | Removable IR-cut filter for day & night function |
Minimum Illumination |
0.08 Lux @ F1.2, 50 IRE ( Color ) 0.001 Lux @ F1.2, 50 IRE ( B/W ) |
Pan speed | 360° |
Tilt range | 180° |
Pan / Tilt / Zoom |
ePTZ 48x digital zoom (4x on IE plug-in, 12x built-in) |
IR Illuminators |
Built-in IR illuminators, effective up to 15 meters IR LED*8 |
On-board Storage | SD/SDHC/SDXC card slot |
Compression | H.264, MJPEG & MPEG-4 |
Maximum Frame Rate |
H.264: 15 fps at 1920x1920, 30 fps at 1920x1080 MPEG-4: 15 fps at 1920x1920, 30 fps at 1920x1080 MJPEG: 15 fps at 1920x1920, 30 fps at 1920x1080 |
Maximum Streams | 4 simultaneous streams |
S/N Ratio | Above 52 dB |
Dynamic Range | 55 dB |
Video Streaming |
Adjustable resolution, quality and bit rate Configurable video cropping for bandwidth saving |
Image Settings |
Adjustable image size, quality, and bit rate Pixel Calculator Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings |
Audio Capability | Audio input / Audio output (Full duplex) |
Compression |
GSM-AMR AAC G.711 |
Interface |
Built-in microphone input External line output |
Effective Range | 5 meters |
Remote users | Live viewing for up to 10 clients |
Protocols |
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ICMP, UDP |
Interface | 10 Base-T / 100BaseTX Ethernet (RJ-45) |
ONVIF | Supported, specification available at www.onvif.org |
Video Motion Detection | Five-window video motion detection |
Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
Alarm Events |
Event notification using digital output, HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server |
Smart Focus System | Remote focus & easy focus |
Connectors |

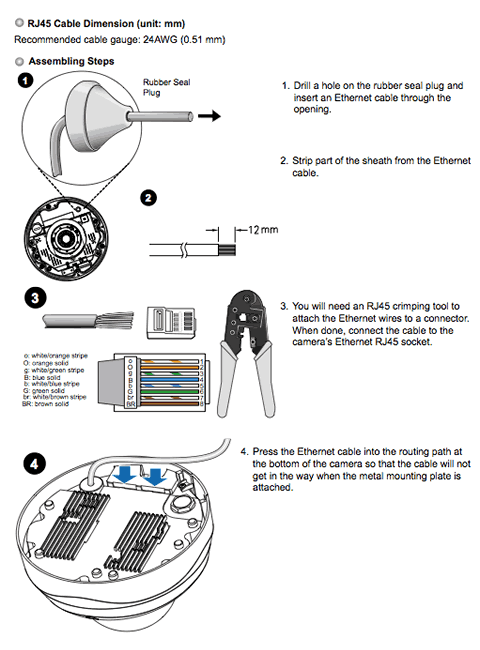

RJ-45 cable connector for Network/PoE connection Audio input Audio output DC 12V power input Digital input*1 Digital output*1 |
LED Indicator | System power and status indicator |
Power input |
12V DC 24V AC IEEE 802.3af PoE Class 3 |
Power consumption |
DC 12V: 6.9 W PoE: 9.3W AC 24V: 8.5W |
Dimensions | Ø: 173 mm x 115 mm |
Weight | Net: 1220 g |
Casing |
Vandal-proof IK10-rated metal housing Weather-proof IP66-rated housing |
Safety Certifications | CE, C-Tick, FCC Class A, LVD, UL, VCCI |
Operating Temperature |
Starting Temperature: -10°C ~ 50°C ( 14°F ~ 122°F ) Working Temperature: -20°C ~ 50°C ( -4°F ~ 122°F ) |
Warranty | 36 Months |
Operating System | Microsoft Windows 7/Vista/XP/2000 |
Browser |
Mozilla Firefox 7~10 (Streaming only) Internet Explorer 7.x or 8.x |
Other Players |
VLC: 1.1.11 or above QuickTime: 7 or above |
