VIVOTEK FD8164 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish exterior. Equipped with a 2MP sensor enabling viewing resolution of 1920x1080 at a smooth 30 fps, the FD8164 is an all-in-one camera capable of capturing high quality and high resolution video up to 2 Megapixel.

In order to adapt to constantly changing lighting conditions, the FD8164 features a removable IR-cut filter as well as improved IR illuminators effective up to 15M for superior image quality around the clock. Featuring 3D Noise Reduction Technology, it enables the FD8164 to capture clear, polished video under low-light conditions, which also helps to reduce bandwidth from sensor noise.

The FD8164 supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With H.264, and MJPEG compatibility both included, multiple streams can be simultaneously transmitted in any of these formats at different resolutions, frame rates, and image qualities for versatile platforms. Thereby it further optimizes bandwidth and storage efficiency.

Incorporating a number of advanced features standard for VIVOTEK cameras, including tamper detection, 802.3af compliant PoE, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the FD8164 is the ideal solution for your indoor surveillance needs.

Feature

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 15 Meters
  • Built-in 802.3af Compliant PoE
  • Build-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
  • 3D Noise Reduction
  • CPU Multimedia SoC (System-on-Chip)
    Flash 128 MB
    RAM 256 MB
    Image sensor 1/2.7" Progressive CMOS
    Maximum Resolution 1920x1080 (2MP)
    Lens Type Fixed-focal
    Focal Length f = 2.8 mm (FD8164-F2)
    f = 3.6 mm (FD8164-F3)
    Aperture F 2.0 (FD8164-F2)
    F 1.8 (FD8164-F3)
    Field of View FD8164-F2
    120° (Horizontal)
    68° (Vertical)
    141° (Diagonal)

    FD8164-F3
    95° (Horizontal)
    51° (Vertical)
    112° (Diagonal)
    Shutter Time 1/5 sec. to 1/32,000 sec.
    Day & Night Removable IR-cut filter for day & night function
    Minimum Illumination FD8164-F2
    0.33 Lux @ F2.0 , 50 IRE (Color)
    0.001 Lux @ F2.0, 50 IRE (B/W)


    FD8164-F3
    0.28 Lux @ F1.8, 50 IRE (Color)
    0.001 Lux @ F1.8, 50 IRE (B/W)
    Pan / Tilt / Zoom ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
    IR Illuminators Built-in IR illuminators, effective up to 15 meters
    IR LED*8
    On-board Storage MicroSD/SDHC/SDXC card slot
    Video Compression H.264,MJPEG
    Maximum Frame Rate 30 fps @ 1920x1080
    Maximum Streams 2 simultaneous streams
    S/N Ratio Above 53 dB
    Dynamic Range 54.5 dB
    Video Streaming Adjustable resolution, quality and bit rate
    Configurable video cropping for bandwidth saving
    Image Settings Adjustable image size, quality and bit rate
    Time stamp, text overlay, flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
    Scheduled profile settings
    3D Noise Reduction
    Audio Capability Audio input
    Audio Compression G.711
    Audio Interface Built-in microphone
    Effective Range 5 meters
    Network Users Live viewing for up to 10 clients
    Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
    ONVIF Supported, specification available at www.onvif.org
    Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
    Video Motion Detection Triple-window video motion detection
    Alarm Triggers Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
    Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server
    Connectors RJ-45 cable connector for Network/PoE connection
    Digital input * 1
    LED Indicator System power and status indicator
    Power input IEEE 802.3af PoE Class 2
    Power consumption Max. 5.1 W
    Dimensions Ø: 127 mm x 91 mm
    Weight Net: 440 g
    Safety Certifications CE C-Tick FCC ( Class B ) LVD VCCI
    Operating Temperature 0°C ~ 50°C (32°F~ 122°F)
    Warranty 24 months
    Operating System Microsoft Windows 8/7/Vista/XP/2000
    Browser Mozilla Firefox 7~10 (Streaming only)
    Internet Explorer 7/8/9/10
    Other Players VLC: 1.1.11 or above QuickTime: 7 or above
    Datasheets Download
    User's Manuals Download

    Product Front View

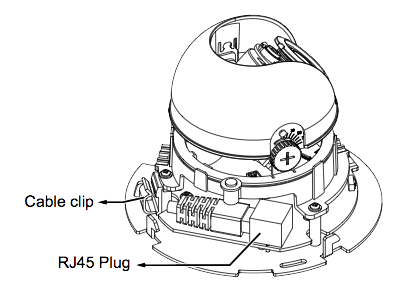

    Product Rear View
