VIVOTEK's FD8135H network camera features an HD WDR CMOS sensor to cope with challenging lighting conditions. The WDR feature allows the camera to capture both the dark and bright parts of an image and combines the differences to generate a highly realistic image representative of the original scene, enabling it to provide video quality close to the capabilities of the human eye. This function enables the FD8135H to be widely applicable in high contrast environments such as lobby entrances, and much more. The P-iris lens controls the iris with extreme precision; with its built-in stepper motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality.

Incorporating an IR-cut filter that can be removed automatically at night and built-in IR illuminators with coverage of up to 20 meters, the FD8135H is an outstanding 24-hour surveillance solution. Together with a PIR sensor for human detection, 802.3af Compliant PoE, tamper detection, MicroSD/SDHC card for on-board storage, the FD8135H is indisputably the top choice for reliable and performance surveillance.

Feature

  • 1-megapixel CMOS Sensor
  • Up to 30 fps @ 1280x800 (720p)
  • 3 ~ 9 mm Vari-focal, P-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, effective up to 20 Meters
  • WDR Pro
  • Built-in PIR Sensor for Human Detection
  • Built-in 802.3af Compliant PoE
  • Built-in MicroSD/SDHC Card Slot for On-board Storage
  • CPU Multimedia SoC (System-on-Chip)
    Flash 16 MB
    RAM 128 MB
    Image sensor 1/3" Progressive CMOS
    Maximum Resolution 1280x800
    Lens Type Vari-focal
    Focal Length f = 3 ~ 9 mm
    Aperture 1.2 ( wide ), 2.1 ( tele )
    Auto-iris P-iris
    Field of View 102.68° ~ 35.4° (horizontal)
    61.93° ~ 22.80° (vertical)
    122.56° ~ 41.11° (diagonal)
    Shutter Time 1/5 sec. to 1/25,000 sec.
    WDR Technology WDR Pro
    Day & Night Removable IR-cut filter for day & night function
    Smart IR Technology to Avoid Overexposure
    Minimum Illumination 0.8 Lux @ F1.2, 50 IRE
    0.001 Lux @ F1.2, 50 IRE ( B/W )
    Pan / Tilt / Zoom ePTZ
    IR Illuminators Built-in IR illuminators, Effective up to 20 meters
    IR LED * 18
    On-board Storage MicroSD/SDHC/SDXC card slot
    Video Compression H.264, MPEG-4, MJPEG
    Maximum Frame Rate 30 fps @ 1280x800
    Maximum Streams 2 simultaneous streams
    S/N Ratio Above 60.5 dB
    Dynamic Range 110.4 dB
    Video Streaming Adjustable resolution, quality and bit rate
    Configurable video cropping for bandwidth saving
    Image Settings Adjustable image size, quality, and bit rate
    Time stamp and text caption overlay
    Flip & mirror
    Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
    Gain
    BLC (Backlight compensation)
    Supports privacy masks
    Scheduled profile settings
    Audio Capability Audio input/output (full duplex)
    Audio Compression AAC, G.711, G.726
    Audio Interface External microphone
    Effective Range 5 meters
    Network Users Live viewing for up to 10 clients
    Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
    ONVIF Supported, specification available at www.onvif.org
    Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
    Video Motion Detection Triple-window video motion detection
    Alarm Triggers Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification
    Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server
    File upload via HTTP, SMTP, FTP and NAS server
    Smart Focus System Focus Assist OSD ( Network streaming )

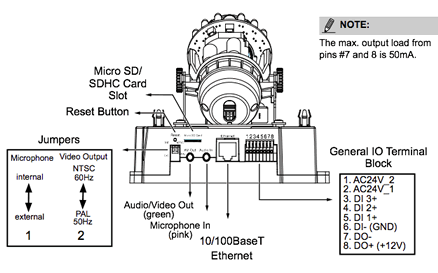

    Connectors RJ-45 cable connector for Network/PoE connection
    Audio input
    Audio output
    3.5 mm phone jack * 2 for audio input / output
    24V AC Power input
    Terminal block * 4 for Digital input * 3
    Terminal block * 2 for Digital output * 1
    MicroSD/SDHC card slot
    LED Indicator System power and status indicator
    Power input 24V AC
    802.3af Power-over-Ethernet (Class 3)
    Power consumption Max. 8 W
    Dimensions Ø: 157 mm x 110 mm
    Weight Net: 778 g
    Safety Certifications CE C-Tick FCC ( Class B ) LVD VCCI
    Operating Temperature Operating Temperature: -20 ~ 50 °C (-4 ~ 122 °F)
    Warranty 24 months
    Operating System Microsoft Windows 8/7/Vista/XP/2000
    Browser Mozilla Firefox 7~10 (Streaming only)
    Internet Explorer 7/8/9/10
    Other Players VLC: 1.1.11 or above QuickTime: 7 or above
    Datasheets Download
    User's Manuals Download

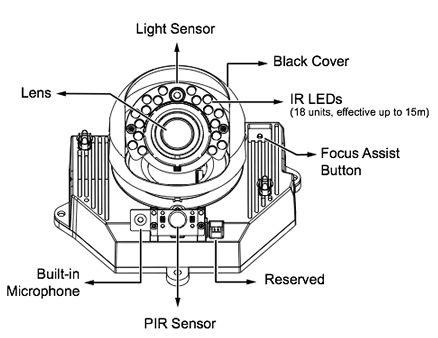

    Product Intenal View
