Feature
Outdoor 95W PoH/PoE Injector
| Model |
AP-GIC-015B-095
|
| Ethernet |
|
| Gigabit Ethernet 10/100/1000Mbps (RJ45) |
1 |
| Standards |
|
| IEEE 802.3 10-BASE-T (Ethernet) |
Supported |
| IEEE 802.3u 100-BASE-TX (Fast Ethernet) |
Supported |
| IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet) |
Supported |
| IEEE 802.3at Power over Ethernet Plus |
Supported |
| Transmission Media |
|
| 10Base T |
Cat. 3, 4, 5 UTP/STP |
| 100Base TX |
Cat. 5, 5e UTP/STP |
| 1000Base T |
Cat. 5e, 6, 7 UTP/STP
* It is highly recommended to use standard Cat. 5e/6/7 cables which are compliant with the 3P/ETL standard. |
| PoE Function |
|
| Number of PoE Port |
1 |
| Max. PoE Output Power/Per Port |
54VDC/95W |
| 802.3at Standard Compatible |
Yes |
| Over Current Protection |
Supported |
| Circuit Shorting Protection |
Supported |
| Total PoE Power Budget |
95W |
| Power Pin Assignment |
1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE PD Auto Detection |
Supported |
| General |
|
| Power Input |
100~240V AC / 50~60Hz |
| Power Consumption |
100W |
| Surge Protection Data/ PoE port |
12KV |
| Surge Protection AC Power |
10KV |
| Waterproof |
IP67 |
| Vandal Proof |
IK10 |
| Dimensions |
255.2 (L) x 199.9 (W) x 90 (H) mm |
| Weight |
3.35 kg |
| Operating Temperature |
-40°C ~ 60°C (-40°F ~ 140°F) |
| Storage Temperature |
-40°C ~ 85°C (-40°F ~ 185°F) |
| Humidity |
Operating: 10 ~ 90% (Non-condensing)
Storage: 10 ~ 90% (Non-condensing) |
| Certifications |
CE, C-Tick, FCC, VCCI |
| Warranty |
24 months |

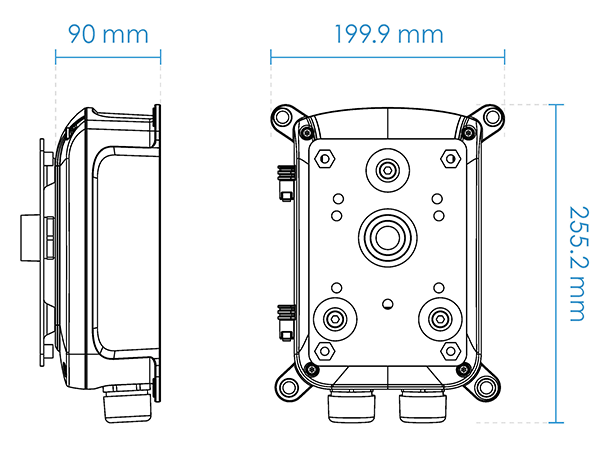

Dimension
