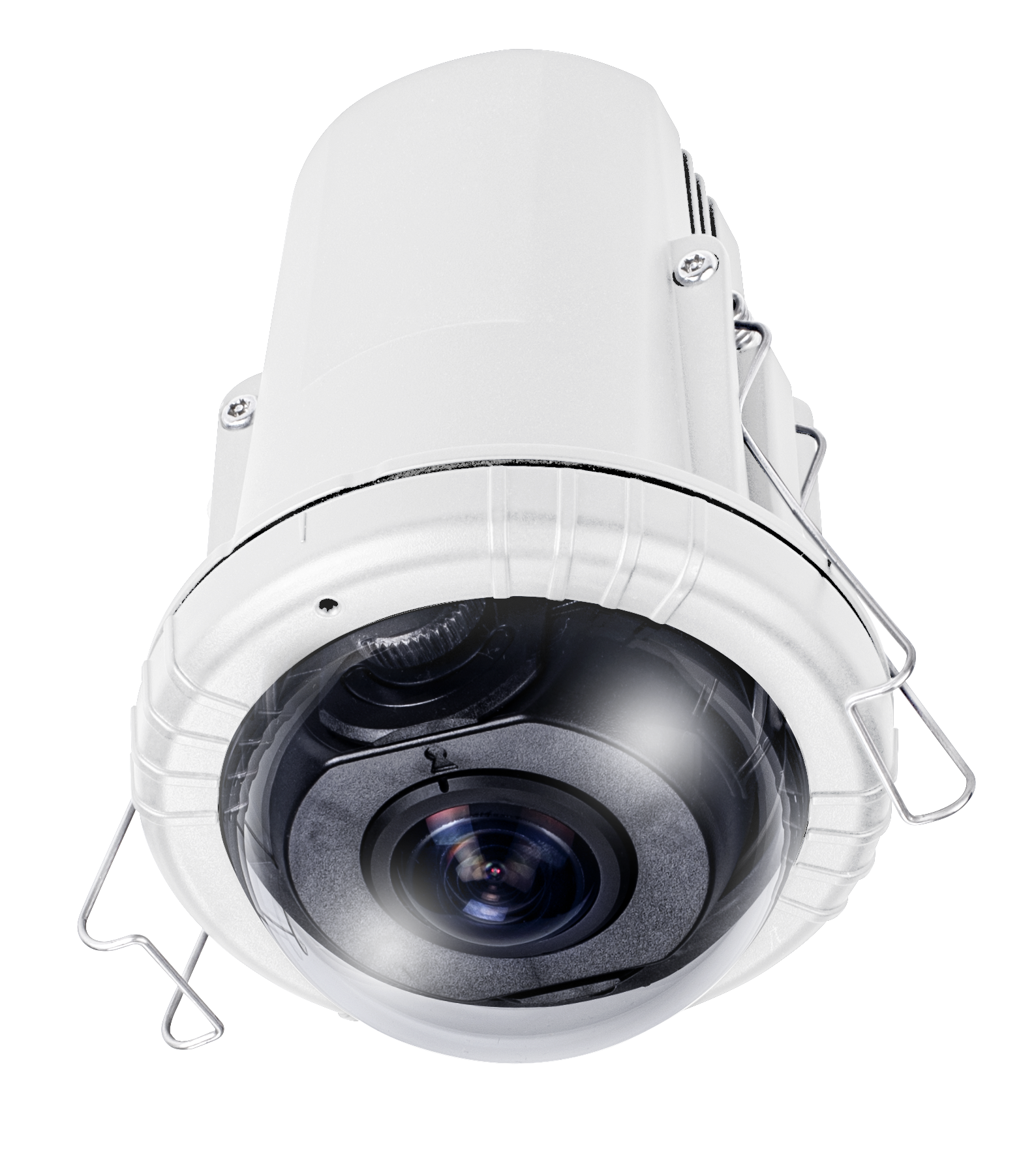

FE912-H

12 MP
Indoor
Fixed-focal

Image Resolution

Compatibility

Lens Type

  • Premium Series
  • 12 MP
  • Fixed Lens
  • Recessed Mount
  • Indoor
  • FCC/CE/UL/NDAA/TAA


    • Monitor Anywhere, Anytime, Any Device

      VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.

      Comprehensive 360° Coverage with Fisheye

      VORTEX fisheye cameras provide 360° coverage with no blind spots, which is ideal for full situational awareness. Dewarping technology lets users focus on specific areas with various viewing modes for a comprehensive and quick overview.

      AI Analytics for Comprehensive Surveillance

      VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.

      Streamline Your Surveillance with Deep Search

      Quickly review camera footage with the Scene Search feature from the Deep Search tab page. Use intrusion, line crossing, or loitering detection to enhance efficiency. Draw a line at any point of interest and select a timeframe to find all events where a person or vehicle crossed that line. This allows users to identify and respond to security incidents swiftly.

      Advanced Deep Search with Attributes

      VORTEX's Deep Search leverages AI for efficient and enhanced search capabilities. It includes Attribute Search, Scene Search, and Re-Search. Using metadata-defined attributes and rules eliminates the need to scroll through footage, enabling faster, smarter, and easier video evidence searches. Quickly find the target person or vehicle by setting criteria such as gender or license plate number.

      Peace of Mind with 10-Year Warranty

      VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.

    • Technical Specifications

      Camera Features
      Image Sensor

      1/2.3" Progressive CMOS

      Resolution

      SD: 1024 x 1024

      HD: 2944x2944

      Lens Type

      Fixec-focal

      Focal Length

      f = 1.22 mm

      Aperture

      F2.0

      Iris

      Fixed iris

      Field of View

      180° (Horizontal)

      180° (Vertical)

      180°(Diagonal)

      Shutter Speed

      1/5 sec. to 1/32,000 sec.

      Day/Night

      Yes

      IR Cut Filter

      Yes

      WDR Technology

      WDR Pro

      Minimum Illumination

      0.1 lux @ F2.0 (Color)

      < 0.005 lux @ F2.0 (B/W)

      Onboard Storage

      MicroSD/SDHC/SDXC card slot

      (Built-in 512GB industrial SD Card)

      Standard Video Settings
      Frame Rate

      15FPS

      Video Streaming Settings

      HD Video 2944 x 2944@15fps 3Mbps upload

      SD Video 1024 x 1024@15fps 300Kbps upload

      Standard Audio Settings
      Audio

      One-way Audio

      Interface

      Built-in microphone

      Effective Range

      5 meters

      Power and Network
      Power Input

      IEEE 802.3af PoE Class 0

      Power Consumption

      Max. 9W

      Connectivity

      RJ-45 cable connector for 10/100 Mbps PoE network connection

      RTSP

      WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP

      Users

      Up to 6 clients

      * Live viewing for 6 clients

      * live viewing up to 4 clients and playback 2 clients)

      Security

      Secure boot

      Signed firmware

      HTTPS/TLS encryption

      Video encryption

      Interface

      10 Base-T/100 Base-TX Ethernet (RJ-45)

      * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

      General
      Operating Temperature

      Starting Temperature:

      0°C ~ 50°C (32°F ~122°F)

      Working Temperature:

      -10°C ~ 50°C (14°F ~122°F)

      Humidity

      90% RH (non-condensing)

      Certifications

      EMC: CE (EN 55032 Class B, EN 55035, EN 50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B)

      Safety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)

      Environment: IP54 (IEC 60529)

      Warranty

      120-month

      Included Accessories

      Quick installation guide

      Mechanical
      Weight

      353 g

      Dimensions

      ø 82 x 122 mm

      Body

      Metal

      AI Analytics
      Audio Detection

      Yes

      Tampering Detection

      Yes

      People Analytics

      Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search

      Vehicle Analytics

      Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search

      Object Analytics

      Unattended object detection, Missing object detection

    • Download

      Datasheets Download
      Specsheet Download
      QIG Download
      Photo Download
