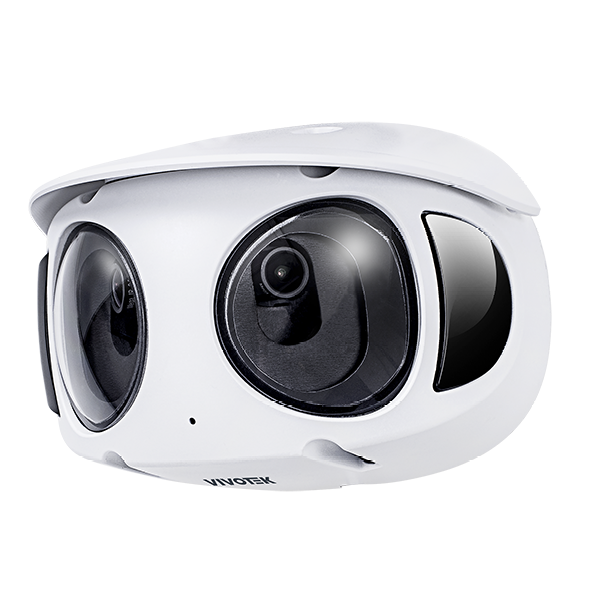

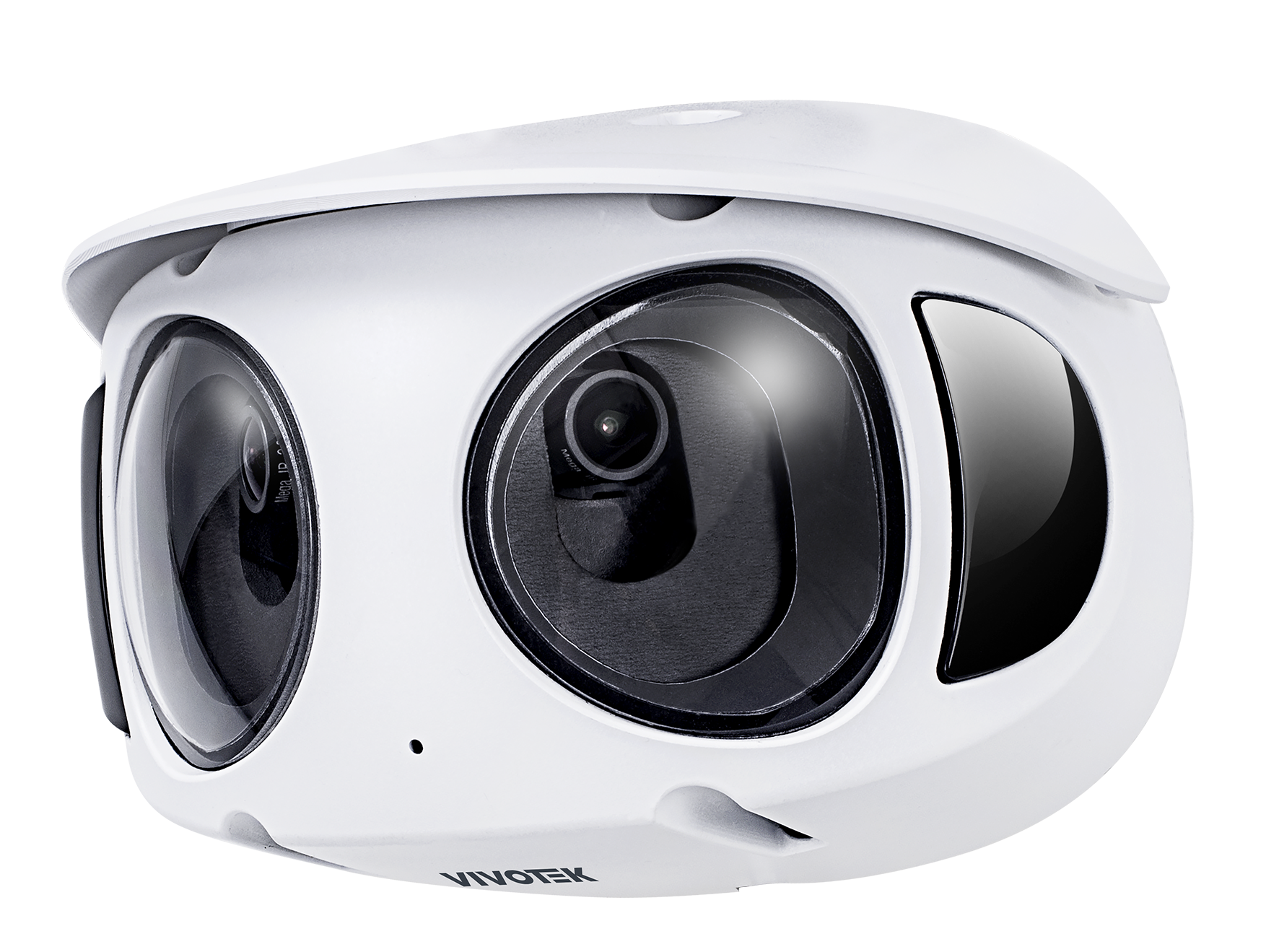

MS930-EHV
| 8 MP |
20 M |
Fixed-focal |
Image Resolution |
IR Illuminators |
Lens Type |
-
Replace 3 Cameras with 1
Streamline surveillance with the panoramic camera – a single unit that effortlessly replaces the need for three separate cameras. Enjoy comprehensive coverage without the clutter, while saving valuable resources and minimizing installation hassles.

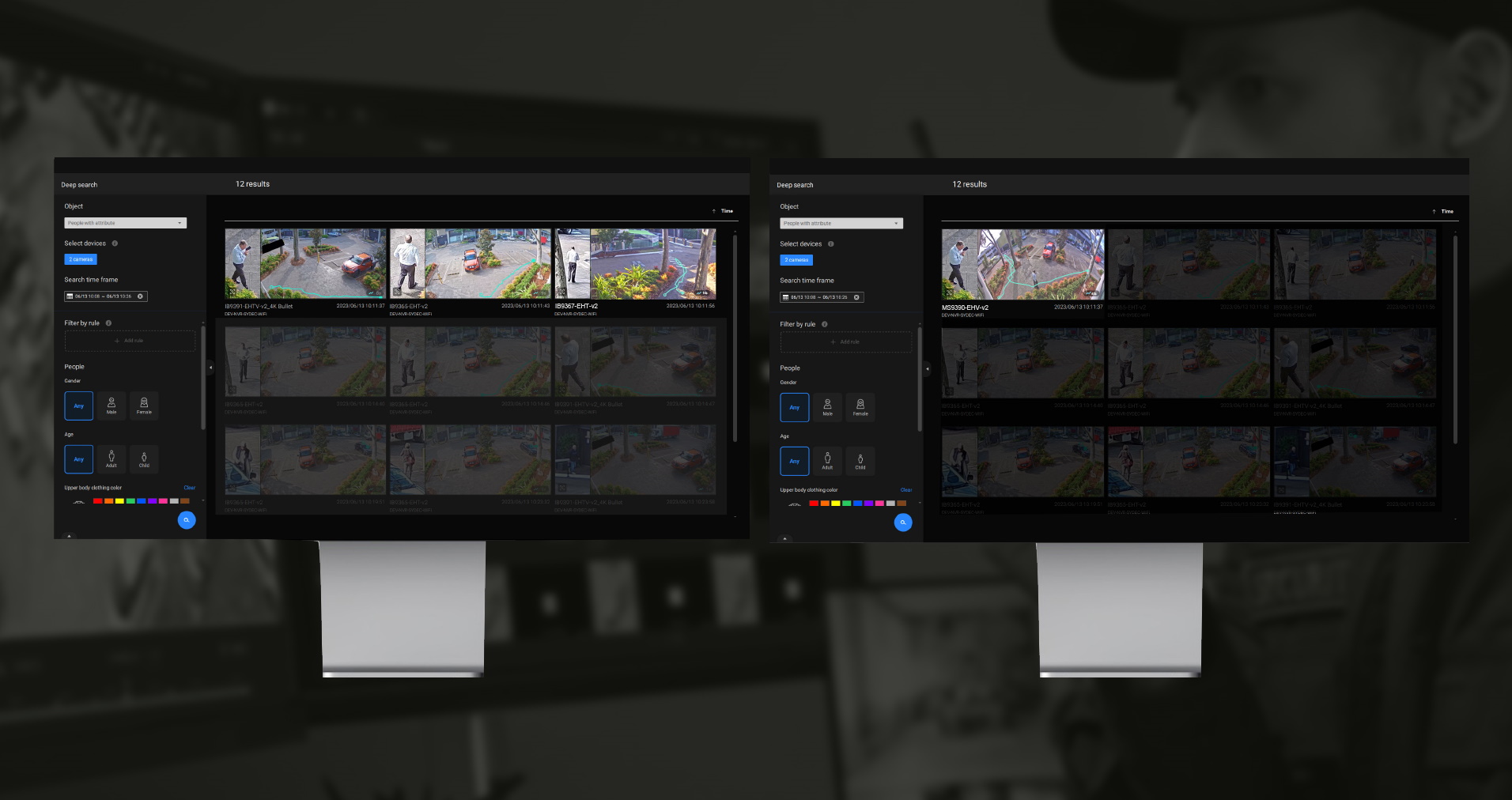

Consolidate 3 Search into 1
Efficient footage search is now achievable with the panoramic camera. It offers the footage search capabilities of three cameras into a single, user-friendly interface, facilitating post-incident analysis without repeatedly checking images from different angles.
Consolidate 3 Alarms into 1
Simplify security systems with the panoramic camera's video analytics. Receive consolidated alerts that combine the insights of three separate cameras into one notification, allowing users to react promptly and effectively without being misled by repeated alerts.
One Camera, One Installation, One License
The panoramic camera transforms surveillance infrastructure. Through the installation process of a single camera, users gain complete coverage without the complexities of deploying multiple cameras. This approach saves time and resources without compromising security standards. Not only the above, users only need to purchase one license and a set of accessories, which greatly saves the cost of ownership.
Peace of Mind with 10-Year Warranty
VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.
-
Technical Specifications
Camera Features Image Sensor 1/2.7" Progressive CMOS
Resolution HD 4864 x 1632 (8MP)
SD 2432x 816
Lens Type Fixed-focal
Focal Length f = 2.8 mm
Aperture F1.2
Iris Fixed iris

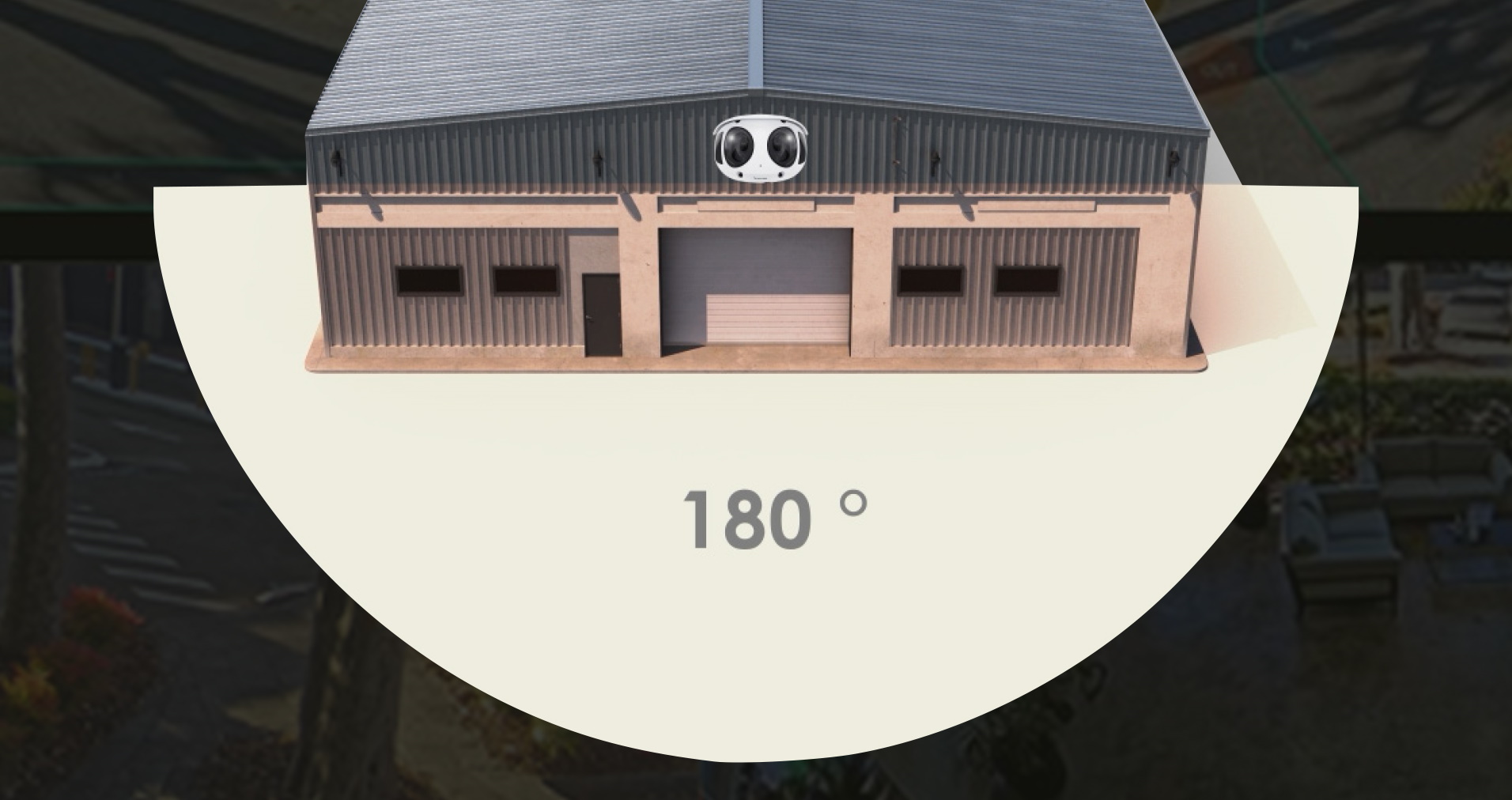

Field of View 180° (Horizontal)
50° (Vertical)
180°(Diagonal)
Camera Movement Tilt: 20°
Shutter Speed 1/30 sec. to 1/32,000 sec.
Day/Night Yes
IR Cut Filter Yes
IR Range 20 meters
WDR Technology WDR Pro
Minimum Illumination 0.018 lux @ F1.2 (Color), 30IRE
< 0.01 lux @ F1.2 (B/W)
0 lux with IR illumination on
Onboard Storage MicroSD/SDHC/SDXC card slot
(Built-in 512GB industrial SD Card)
Standard Video Settings Frame Rate 15FPS
Video Streaming Settings HD 4864 x 1632 (8MP)@15fps 3Mbps upload
SD 2432x 816@15fps 400Kbps upload
Standard Audio Settings Audio One-way Audio
Interface Built-in microphone
Effective Range 5 meters
Power and Network Power Input IEEE 802.3at PoE Class 4
Power Consumption Max. 20 W / 13.5W (IR on/ IR off)
Connectivity RJ-45 cable connector for 10/100 Mbps PoE network connection
RTSP WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users Up to 6 clients
* Live viewing for 6 clients
* live viewing up to 4 clients and playback 2 clients)
Security Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General Operating Temperature Starting Temperature:
-30°C ~ 55°C (-22°F ~ 131°F)
Working Temperature:
-40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity 90% RH (non-condensing)
Certifications EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1)
Environment: IK10 (IEC 62262), IP66(IEC 60529)
Warranty 120-month
Included Accessories Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack, sunshield
Mechanical Weight 1.2 kg
Dimensions 165 x 112 x 97 mm (w/o sunshield)
165 x 100 x 119 mm (w/ sunshield)
Body Metal
AI Analytics Audio Detection Yes
Tampering Detection Yes
People Analytics Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search
Vehicle Analytics Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search
Object Analytics Unattended object detection, Missing object detection
-
