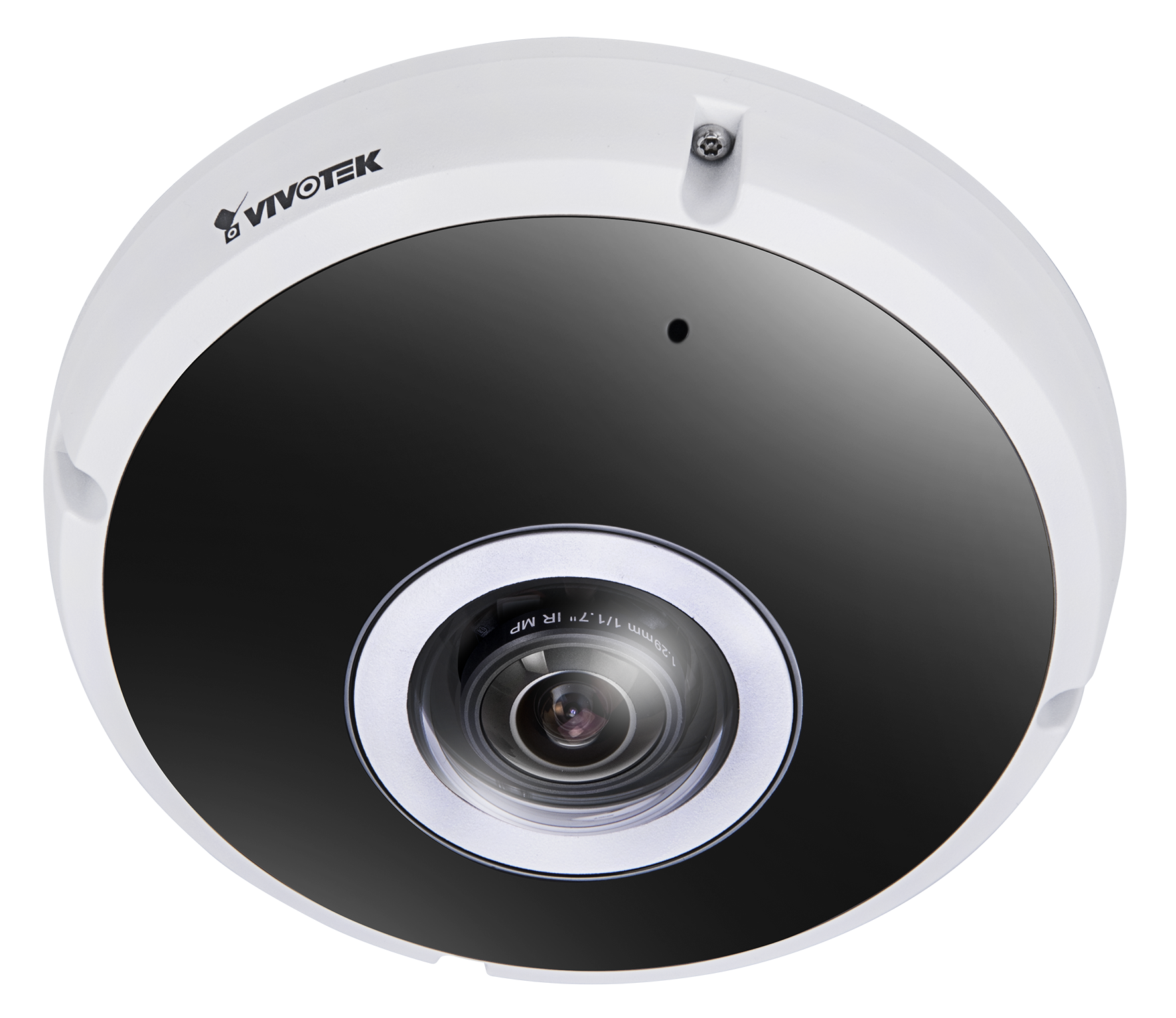

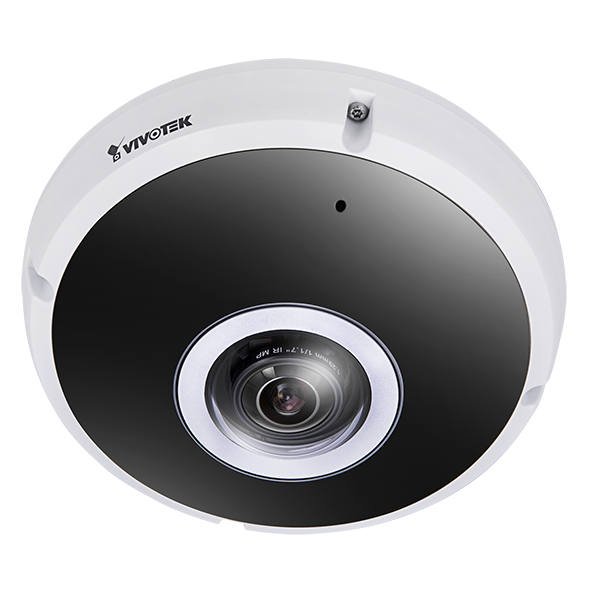

FE931-EHV
| 12 MP |
20 M |
Fixed-focal |
Image Resolution |
IR Illuminators |
Lens Type |
-
Monitor Anywhere, Anytime, Any Device
VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.

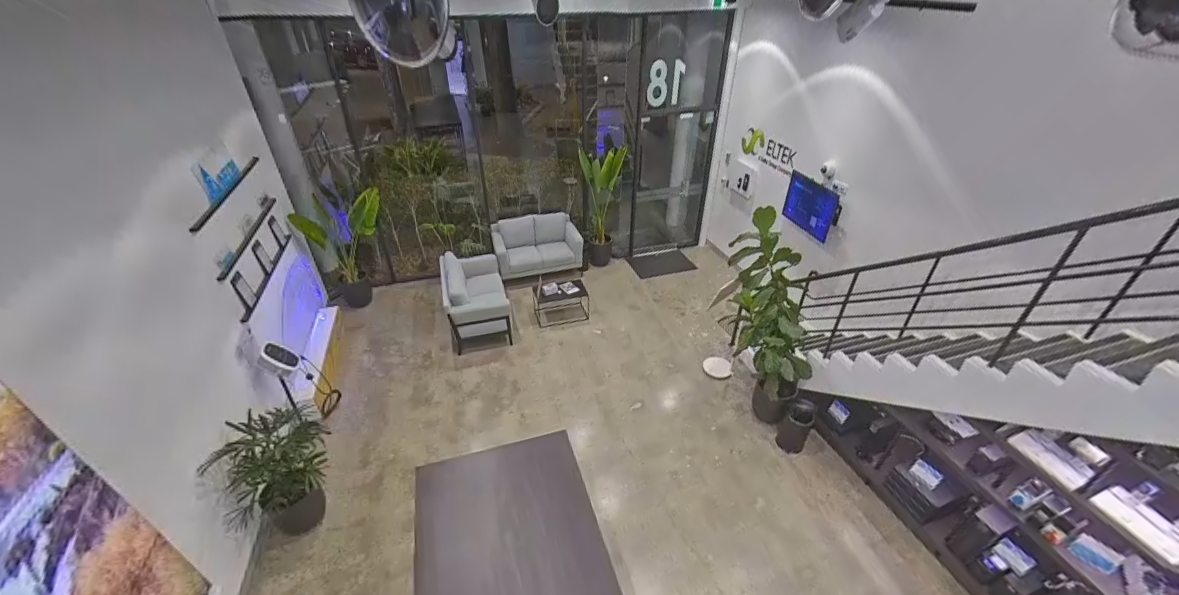

Comprehensive 360° Coverage with Fisheye
VORTEX fisheye cameras provide 360° coverage with no blind spots, which is ideal for full situational awareness. Dewarping technology lets users focus on specific areas with various viewing modes for a comprehensive and quick overview.

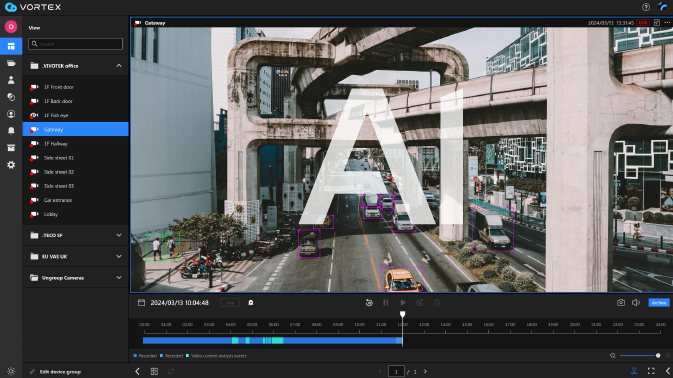

AI Analytics for Comprehensive Surveillance
VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.

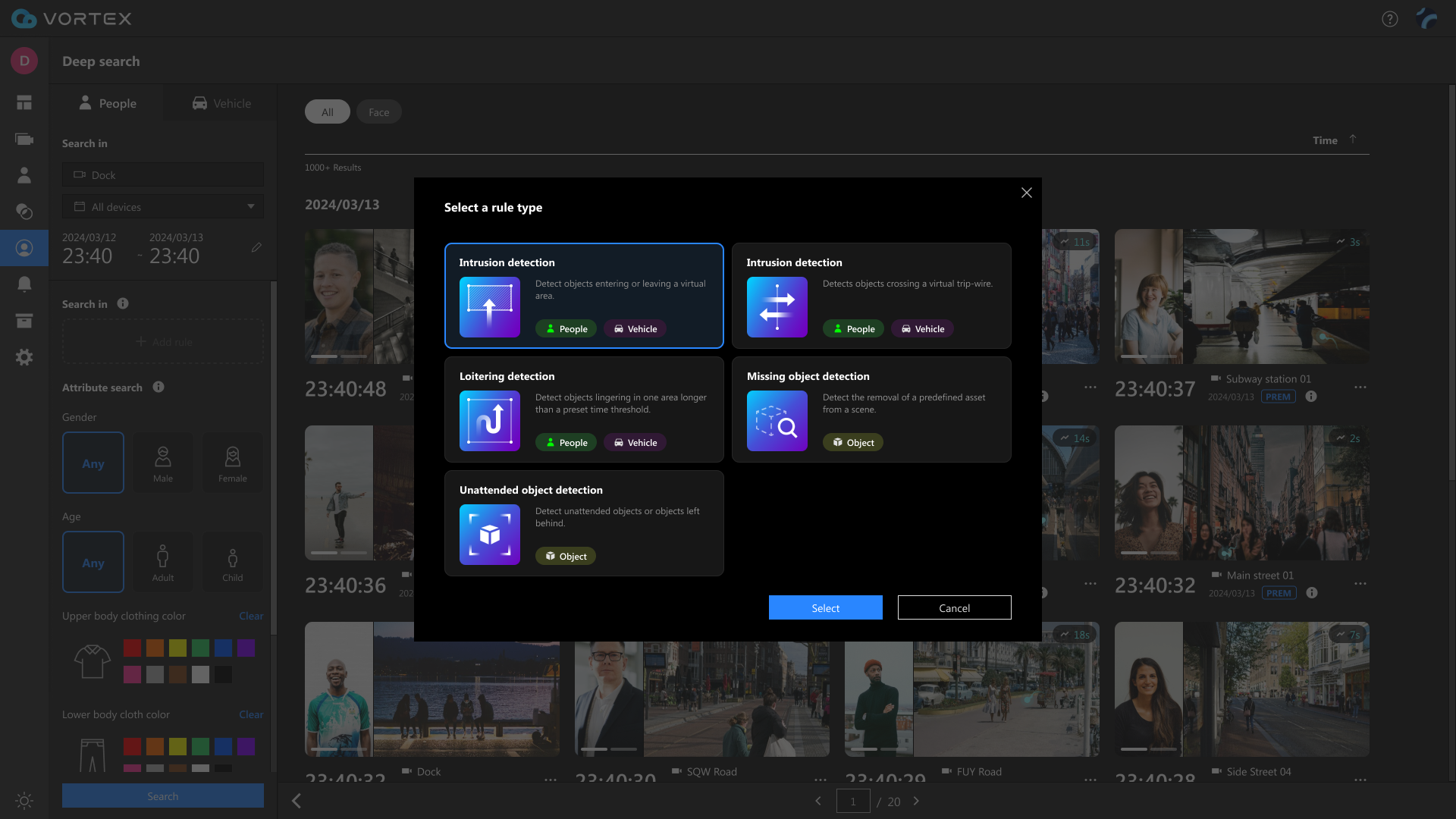

Streamline Your Surveillance with Deep Search
Quickly review camera footage with the Scene Search feature from the Deep Search tab page. Use intrusion, line crossing, or loitering detection to enhance efficiency. Draw a line at any point of interest and select a timeframe to find all events where a person or vehicle crossed that line. This allows users to identify and respond to security incidents swiftly.

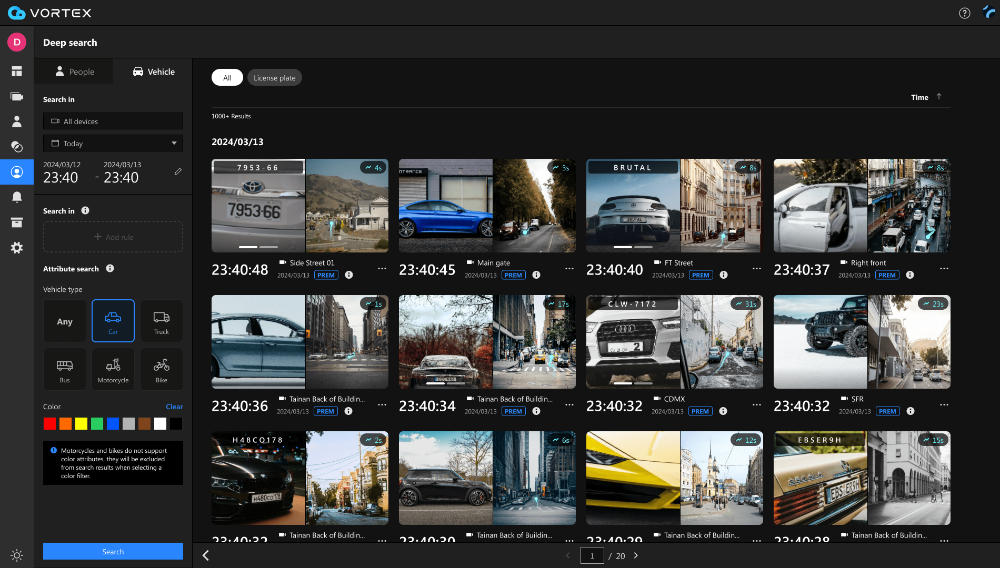

Advanced Deep Search with Attributes
VORTEX's Deep Search leverages AI for efficient and enhanced search capabilities. It includes Attribute Search, Scene Search, and Re-Search. Using metadata-defined attributes and rules eliminates the need to scroll through footage, enabling faster, smarter, and easier video evidence searches. Quickly find the target person or vehicle by setting criteria such as gender or license plate number.
Peace of Mind with 10-Year Warranty
VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.
-
Technical Specifications
Camera Features Image Sensor 1/2.3" Progressive CMOS
Resolution SD: 1024 x 1024
HD: 2944x2944
Lens Type Fixec-focal
Focal Length f = 1.22 mm
Aperture F2.0
Iris Fixed iris
Field of View 180° (Horizontal)
180° (Vertical)
180°(Diagonal)
Shutter Speed 1/5 sec. to 1/32,000 sec.
Day/Night Yes
IR Cut Filter Yes
IR Range 20 meters
WDR Technology WDR Pro
Minimum Illumination 0.1 lux @ F2.0 (Color)
< 0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
Onboard Storage MicroSD/SDHC/SDXC card slot
(Built-in 512GB industrial SD Card)
Standard Video Settings Frame Rate 15FPS
Video Streaming Settings HD Video 2944 x 2944@15fps 3Mbps upload
SD Video 1024 x 1024@15fps 300Kbps upload
Standard Audio Settings Audio One-way Audio
Interface Built-in microphone
Effective Range 5 meters
Power and Network Power Input IEEE 802.3at PoE Class 4
Power Consumption Max. 22.5 W/9.55 W (IR on/off)
Connectivity RJ-45 cable connector for 10/100 Mbps PoE network connection
RTSP WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users Up to 6 clients
* Live viewing for 6 clients
* live viewing up to 4 clients and playback 2 clients)
Security Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General Operating Temperature Starting Temperature:
-20°C ~ 50°C (-4°F ~ 122°F)
Working Temperature:
-40°C ~ 55°C (-40°F ~ 131°F) (IR off)
-40°C ~ 50°C (-40°F ~ 122°F) (IR on)
Humidity 90% RH (non-condensing)
Certifications EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), VCCI (VCCI-CISPR 32 Class A)
Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22)
Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X)
Warranty 120-month
Included Accessories Quick installation guide, alignment sticker, screw pack, desiccant bag
Mechanical Weight 701 g
Dimensions ø 150 x 68.2 mm
Body Metal
AI Analytics Audio Detection Yes
Tampering Detection Yes
People Analytics Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search
Vehicle Analytics Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search
Object Analytics Unattended object detection, Missing object detection
-
