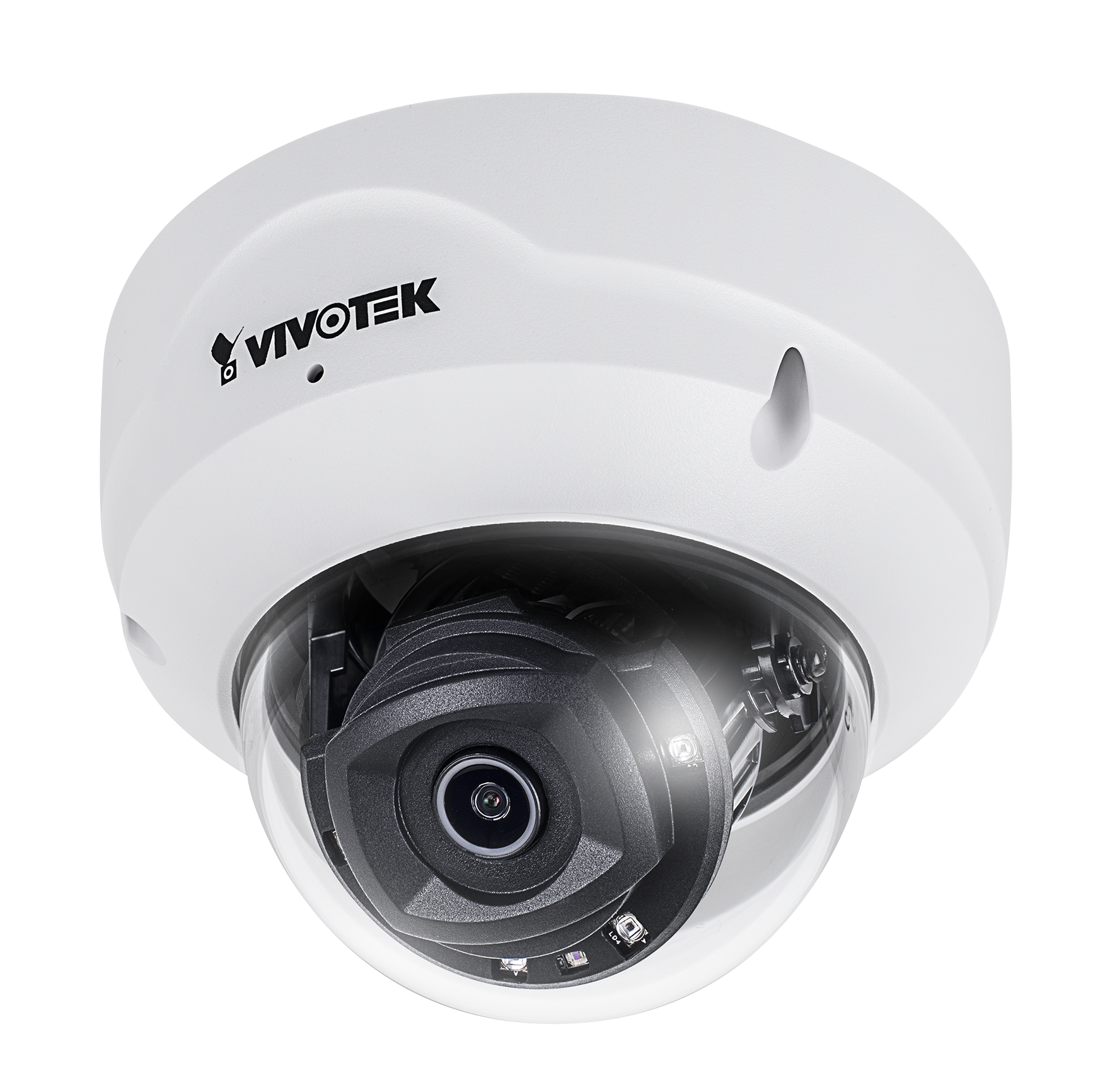

FD819-H
| 5 MP |
30 M |
Fixed-focal |
Image Resolution |
IR Illuminators |
Lens Type |
-
Monitor Anywhere, Anytime, Any Device
VORTEX unifies surveillance extensions on one platform, offering seamless consistency with various cameras. Automate tasks for better productivity and efficiency. Enjoy seamless remote management with instant notifications to your mobile, email, sirens, and Webhooks, ensuring simplified IT maintenance.
AI Analytics for Comprehensive Surveillance
VORTEX provides real-time alerts and notifications via AI analytics like intrusion, line-crossing, and loitering detection. Its machine learning capabilities enhance accuracy over time, ensuring robust surveillance and peace of mind.
Streamline Your Surveillance with Deep Search
Quickly review camera footage with the Scene Search feature from the Deep Search tab page. Use intrusion, line crossing, or loitering detection to enhance efficiency. Draw a line at any point of interest and select a timeframe to find all events where a person or vehicle crossed that line. This allows users to identify and respond to security incidents swiftly.
Peace of Mind with 10-Year Warranty
VORTEX cameras effortlessly connect to the cloud, scaling without extra servers. Enjoy peace of mind with up to 10-year warranties and continuous license subscriptions for significant cost savings per camera.
-
Technical Specifications
Camera Features Image Sensor 1/2.7" Progressive CMOS
Resolution SD: 1280 x 960
HD: 2560 x 1920
Lens Type Fixed-focal
Focal Length f = 2.8 mm
Aperture F2.0
Iris Fixed-iris
Field of View 103° (Horizontal)
76° (Vertical)
134° (Diagonal)
Camera Movement Pan: 350° Tilt: 80° Rotate:±175°
Shutter Speed 1/5 sec. to 1/32,000 sec.
Day/Night Yes
IR Cut Filter Yes
IR Range 30 meters
WDR Technology WDR Pro
Minimum Illumination 0.06 lux @ F2.0 (Color)
0.01 lux @ F2.0 (B/W)
0 lux with IR illumination on
Onboard Storage MicroSD/SDHC/SDXC card slot
(Built-in 256GB industrial SD Card)
Standard Video Settings Frame Rate 15FPS
Video Streaming Settings HD Video 2560 x 1920@15fps 1.2Mbps upload
SD Video 1280 x 960@15fps 300Kbps upload
Standard Audio Settings Audio One-way Audio
Interface Built-in microphone
Effective Range 5 meters
Power and Network Power Input IEEE 802.3af PoE Class 0
Power Consumption MAX. 6.3 W (IR on)
MAX. 3.9 W (IR off)
Connectivity RJ-45 cable connector for 10/100 Mbps PoE network connection
RTSP WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP
Users Up to 6 clients
* Live viewing for 6 clients
* live viewing up to 4 clients and playback 2 clients)
Security Secure boot
Signed firmware
HTTPS/TLS encryption
Video encryption
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
General Operating Temperature Starting Temperature:
0°C ~ 50°C (32°F ~ 122°F)
Working Temperature:
-10°C ~ 50°C (14°F ~ 122°F) (IR Off)
-10°C ~ 45°C (14°F ~ 113°F) (IR On)
Humidity 90% RH (non-condensing)
Certifications EMC: CE (EN55032, EN55024 Class B, E50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR32 Class B), VCCI (VCCI-CISPR 32 Class B)
Safety : UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
Warranty 120-month
Included Accessories Quick installation guide, alignment sticker, screw pack
Mechanical Weight 350 g
Dimensions Ø 130 x 95 mm
Body Plastic
AI Analytics Audio Detection Yes
Tampering Detection Yes
People Analytics Intrusion detection, Line crossing detection, Loitering detection, Scene Search
Vehicle Analytics Intrusion detection, Line crossing detection, Loitering detection, Scene Search
Object Analytics Unattended object detection, Missing object detection
