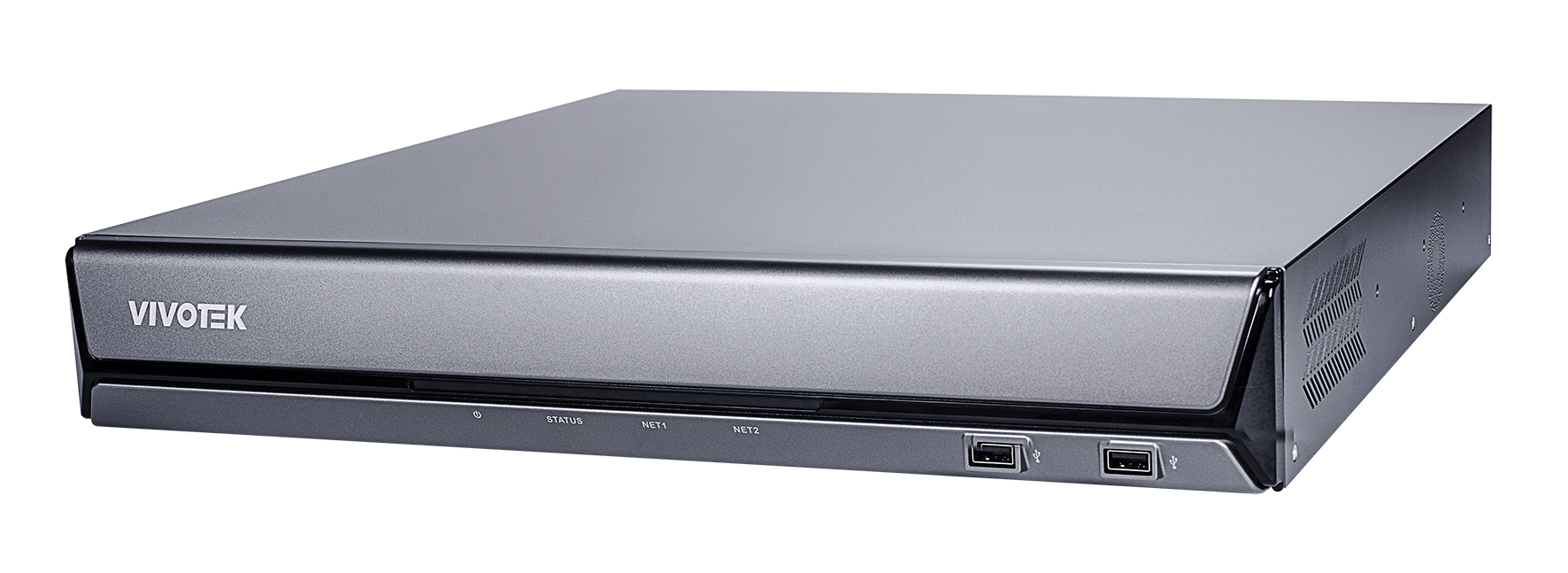

ND9442P

    H.265 16-CH Embedded PoE NVR


NDAA

AI

Intro Video

Key Features

  • 1080P 360 fps with H.265 Compression Technology
  • Up to 20MP Cameras Supported
  • 4K Video Output Display for Clear and Detailed Monitoring
  • Deep Search (Attribute Search, Scene Search)
  • VIVOTEK Smart VCA Camera Supported for Event Search & Recording
  • 802.3at/af PoE with PoE Management
  • RAID 0, 1, 5 Supported to Prevent from Recording Data Loss
  • Alarm In *16, Alarm Out *8
  • Trend Micro IoT Security & Cybersecurity Management
  • VIVOCloud App, VAST 2, and VAST Security Station (VSS)
  • Made in Taiwan

    • Highlight Feature

      Next Generation NVR Firmware: Core+AI

      Core+ AI firmware take Core+ up a level. Core+ AI NVR's are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search's AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.

      Deep Search

      Attribute Search uses people and vehicles as search criteria utilizing multiple attributes (e.g., gender, age group, clothing or car color, vehicle type, etc.) to quickly and accurately find the person / vehicle of interest.

      Smart VCA Event Search

      ND9542P supports alarm management and event search of VIVOTEK's deep-learning video analytics technology, Smart VCA. Users can search by single or multiple event types, playback triggered events and then export these search results to video clips.

      *Requires Smart VCA enabled cameras

      4K IP Camera Video Input and 4K Local Video Output

      Supporting 4K IP camera video input and 4K local video output, VIVOTEK’s ND9542P can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording.

      VIVOCloud App & Portal for 24/7 Viewing

      The free VIVOCloud app makes surveillance lightweight and portable, ensuring efficient operation. The latest P2P technology makes remote access even more convenient, by simply scanning the QR-code and installing the app, users can view live streams and play recorded clips with the intuitive interface anytime, anywhere. Armed with the Push Notification function, users will directly get an alert message on their Android/iOS mobile device and directly playback the video to check for any suspicious activity.

    NDAA Compliance

    Device
    Model
  • ND9442P
    		•
    OS
  • Embedded Linux
    		•
    Watchdog
  • Hardware + Software
    		•
    Power Restoration
  • System Restart Automatically after Power Recovery
    		•
    Display
    LiveView Display
  • 16 Channels
  • Multi-Layout Display: 1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4
    		•
    Video Output
  • HDMI x1, VGA x1
    		•
    Display Resolution
  • 3840x2160, 1920x1080, 1280x720
    		•
    Fisheye Dewarp
  • Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3R
  • Web: 1O, 1R, 1P
    		•
    PTZ Operation
  • Direction Control, Home, Iris, Preset, Patrol (Group)
    		•
    Video
    Video Format
  • H.265, H.264, MJPEG
    		•
    Graphic Decoder
  • Hardware decoding
    		•
    Decoding Resolution
  • Up to 7680x2560
    		•
    Decoding Capability
  • H.265/H.264:
    • 3840x2160 @ 90 fps (3-CH)
    • 1920x1080 @ 360 fps (12-CH)
    Audio
    Audio Format
  • G.711, G.726
    		•
    Audio In/Out
  • 3.5 Phone Jack Audio Output x1
  • 3.5 Phone Jack Audio Input (Reserved) x1
    		•
    Record
    Recording Time (sec.)
  • Pre-Record: 5 (Max. 10)
  • Post-Record: 20 (Max. 300)
    		•
    Recording Stream
  • Dual
    		•
    Recording Throughput
  • 192 Mbps
    		•
    Recording Mode
  • Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
    		•
    Recording Setting
  • Recycle (unit: Day)
    		•
    Watermark
  • Supported
    		•
    Storage & Backup
    HDD Devices
  • Internal x4 (3.5")
    • *HDD purchased separately.
    HDD Max. Capacity *Please refer to the recommended HDD list on the VIVOTEK website.
    RAID
  • RAID 0, 1, 5
    		•
    Disk Management
  • Create, Format and Remove Disk
  • HDD S.M.A.R.T.
    		•
    External Storage
  • USB Storage (USB 3.0)
    		•
    Video Clip Export
  • USB Dongle (FAT Format)
    		•
    Schedule Backup
  • FTP
    		•
    Playback
    Playback Display
  • 4 Channels
  • Multi-Layout Display: 1x1, 2x2, 1P+3, 3V
    		•
    Playback Control
  • Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)
    		•
    Video Search
  • By calendar, date/time, and alarm
    		•
    Thumbnail Explorer (Storyboard)
  • Listing the thumbnail of recorded video (Max. 2-CH)
    		•
    Snapshot
  • JPEG
    		•
    Video Clip Export
  • Supported
    		•
    Network
    Ethernet
  • 10/100/1000Mbps Ethernet (RJ-45) x2
    		•
    Network Throughput Input/Output Total
  • 224 Mbps
    		•
    PoE
  • 802.3at/af compliant PoE ports x 16 (Total Max. 200 W)
    • * DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
    PoE Management
  • Supported
    		•
    Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS
    		•
    External Interface
    USB
  • Front: 2 (USB 2.0)
  • Back: 1 (USB 3.0)
    		•
    Alarm In
  • 16
    		•
    Alarm Out
  • 8
    		•
    Audio
  • 3.5 Phone Jack Audio Output x 1
  • 3.5 Phone Jack Audio Input (Reserved) x 1
    		•
    RS485
  • 1 (Reserved)
    		•
    System
    Camera Integration
  • ONVIF Profile S
    		•
    Event
  • Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Fan error
    		•
    Event Action
  • Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, VIVOCloud APP Notification
    		•
    User Management
  • User level: administrator, regular user
    		•
    Log
  • System, recording, user, error
    		•
    Date & Time
  • Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
    		•
    Language
  • Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic
    		•
    Deep Search
    Object Search
  • People, Vehicle
    		•
    Scene Search
  • Line crossing, Intrusion, Loitering
    		•
    Attribute Search
  • People: Gender, Age, Clothing Color, Accessories
  • Vehicles: Type, Color
    		•
    Advanced Features
    VCA Counting Solution
  • Supported
    		•
    VCA Event Search
  • Supported
    		•
    Smart Search II
  • Supported
    		•
    Trend Micro IoT Security
  • Supported
    		•
    Cybersecurity Management
  • Supported
    		•
    Remote Client
    Software AP
  • Shepherd, VAST 2, VSS (VAST Security Station)
    		•
    Mobile/Tablet App
  • iViewer (Android & iOS)
    		•
    Web Browser
  • Chrome
    		•
    VIVOCloud
  • Supported
    		•
    General
    Power Input
  • 100-240V AC, 50/60Hz
    		•
    Power Consumption
  • Max. 300 W
    		•
    Dimensions
  • 432 (W) x 421 (D) x 66 (H) mm
    		•
    Weight
  • 4.6 kg (without HDD)
    		•
    Operating Temperature
  • -10°C ~ 55°C (14°F ~ 131°F)
    		•
    Humidity
  • 0 ~ 95%
    		•
    Safety Certifications
  • CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
    		•
    Warranty
  • 36 months
    		•
    Datasheets Download
    QIG Download
    User's Manuals Download
    Photo Download

    Dimension

    Recommended HDD List

    Brand Model Capacity
    Western Digital* WD8001PURP 8TB
    WD101PURP 10TB
    WD121PURP 12TB
    WD141PURP 14TB

    * WD (Western Digital) is one of VIVOTEK's SIA (Solution Integration Alliance) partners for developing customized features on an open platform. WD provides well maintained and repair services for VIVOTEK. For further direct service of WD HDD product, please refer to WD Global Warranty website.

    Accessories

    AM-612
