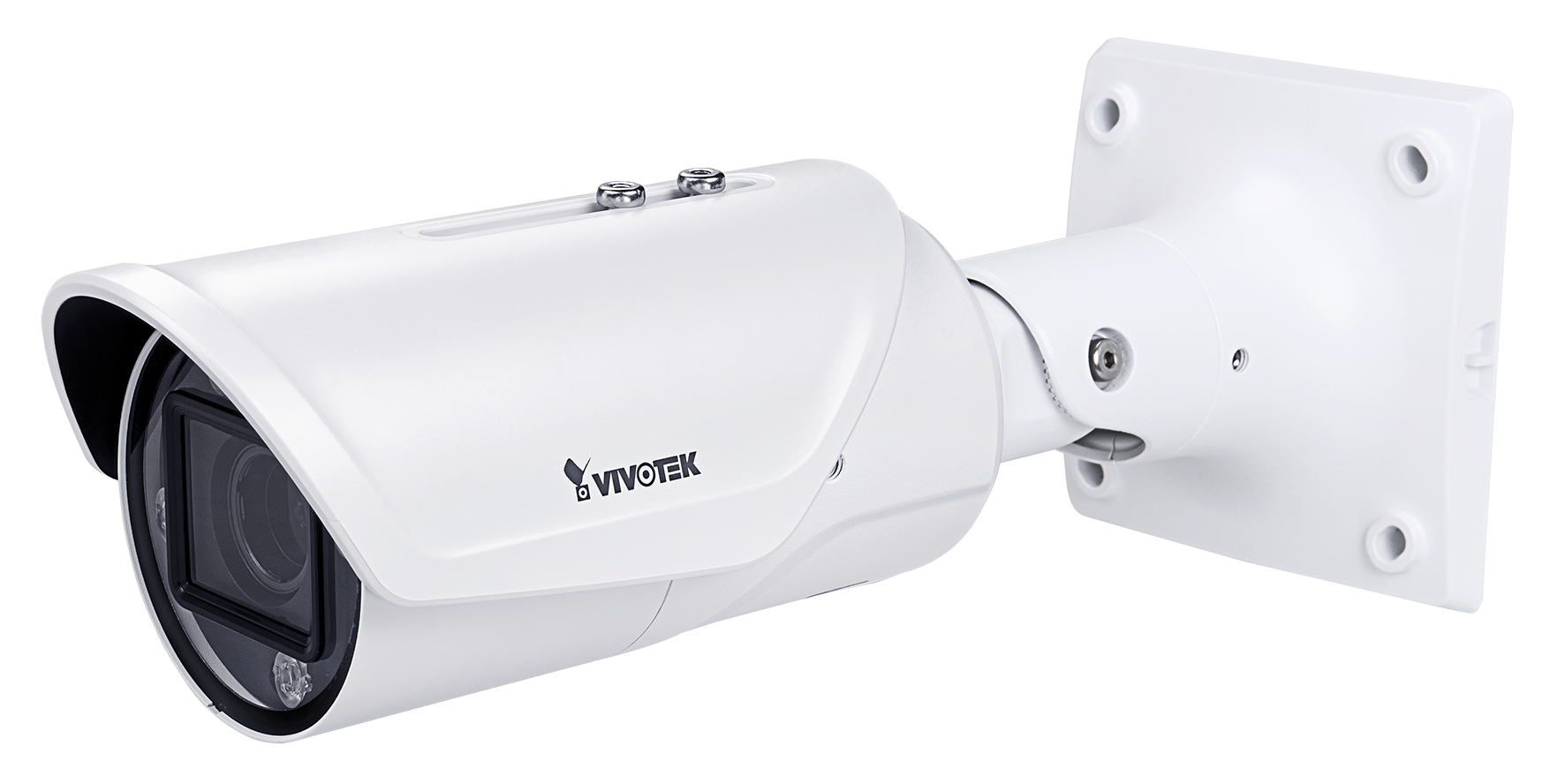

IB9387-LPR-V2-W (N)

    Embedded LPR Software, Wiegand Protocol Supported, IP67, IK10


LPR

Trend Micro IoT Security

SNV

WDR Pro

Remote Focus

Key Features

  • Embedded access control application based on LPR with Vehicle Type, Color, and Direction Recognition
  • Supports License Plates from over 100+ Countries
  • Black and White Lists for License Plate Verification
  • Fully Integrated with VAST2 & VSS VMS
  • Various Open APIs Available for 3rd Party Integration
  • Trend Micro IoT Security
  • Supports Wiegand Protocol for Access Control Applications
  • Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
  • Overview

    VIVOTEK's IB9387-LPR-V2-W camera is a standalone LPR (License Plate Recognition) camera system that comes with built-in license plate recognition software and features license plate validation for advanced white-list and black-list applications. It can simultaneously read multiple countries or states, such as Singapore, Malaysia, Texas, Oklahoma, and surrounding states, especially in cases where certain national license plates have colors or require vehicle color detection. White light illumination ensures full-color image quality, directly enhancing environmental lighting.


    It supports converting license plates into Wiegand signals for use with access control systems. Also, it provides various APIs for integration with third-party systems like parking management, toll collection, and weighbridge systems. The camera provides not only license plate reading with white and black-list system for vehicle verification but also vehicle type and color recognition, enabling parking systems to identify vehicle attributes quickly. This system is highly suitable for parking lot access control, pay-per-use systems, or any LPR applications where vehicles come to a stop or near stop.


    Trend Micro IoT Security for Cybersecurity

    System Information
    Model
  • IB9387-LPR-V2-W
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 1 GB
  • RAM
  • 2 GB
  • Camera Features
    Image Sensor
  • 1/2.8" Progressive CMOS
  • Max. Resolution
  • 2560x1920 (5MP)
  • Lens Type
  • Motorized, Vari-focal, Remote Focus
  • Focal Length
  • f = 3.2~10.5 mm
  • Aperture
  • F1.6 ~ F3.3
  • Iris Type
  • P-iris
  • Field of View
  • 97.3° ~ 27.9° (Horizontal)
  • 70.3° ~ 20.9° (Vertical)
  • 131.5° ~ 34.9° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • IR Illuminators
  • 6100K White LED *4
  • Minimum Illumination
  • 0.06 lux @ F1.6 (Color)
  • < 0.005 lux @ F1.6 (B/W)
  • 0 lux with IR illumination on
  • Tilt Range
  • 90°
  • Rotation Range
  • 180°
  • Pan/Tilt/Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Built-in 32GB MicroSD card for LPR images
  • Slot type: MicroSD/SDHC/SDXC card slot
  • Seamless Recording
  • Built-in Installation Aids
  • Remote focus, remote zoom
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 30 fps @ 2560x1920 (WDR on)
  • 30 fps @ 2560x1440 (WDR on)
  • Maximum Streams
  • 3 simultaneous streams
  • S/N Ratio
  • 60 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and constant bit rate control, Smart Stream II
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • Illuminators: illuminators, anti-overexposure, Smart IR II
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (LPC-parking lots)
  • Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  • Focus: zoom, focus
  • Privacy mask, Scheduled profile settings
  • Audio
    Audio Capability
  • Two-way audio
  • Audio Compression
  • G.711, G.726
  • Audio Interface
  • External microphone input
  • External line output
  • Network
    Users
  • Live viewing for up to 10 clients
  • Security
  • Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
  • Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX Ethernet
  • *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S, T supported
  • Solution Integration
    Embedded Software
  • VIVOTEK ANPR
  • VADP Package
  • Trend Micro IoT Security
  • Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
  • Event Action
  • Camera:
    • Event notification via digital output, email, HTTP, FTP, NAS server, SD card
    • File upload via email, HTTP, FTP, NAS server, SD card
  • ANPR Software:
    • Socket client, socket server, onvif event, digital output trigger, HTTP, FTP, wiegand protocol supported
  • VaxALPR Software:
    • FTP, JSON, XML, TCP Server, TCP client, wiegand protocol supported
    General
    Connectors
  • RJ-45 cable connector for Network/PoE connection
  • Audio line in
  • Audio line out
  • AC 24V
  • DC 12V
  • Digital input *2
  • Digital output *2 (Dry contact,Load voltage 30V AC/DC@1A max)
  • LED Indicator
  • System power and status indicator
  • Power Input
  • AC 24V
  • DC 12V
  • IEEE 802.3at PoE Class 4
  • Power Consumption
  • PoE: Max. 26W
  • DC 12V: Max. 29.5W
  • AC 24V: Max. 28W
  • Dimensions
  • 118 x 118 x 294 mm
  • Weight
  • 1.3 kg
  • Casing
  • IP66, IP67, IK10 (Metal Housing)
  • Certifications
  • EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032:2015+A11: 2020, BS EN 55035:2017+A11:2020, BS EN IEC 62368-1:2020+A11:2020), RCM (AS/NZS CISPR 32 Class A), FCC (FCC Part 15 Subpart B Class A), ICES (ICES-003 Issue 7), VCCI (VCCI-CISPR 32 Class A)
  • Safety: UL (UL 62368-1 Ed.3), CB (IEC/EN 62368-1, EN 62471)
  • Environment: IK10 (IEC 62262), IP66/67 (IEC 60529)
  • IA: BIS (IS 13252, IEC 60950-1), BSMI (EMC: CNS15936)
  • Operating Temperature
  • Starting Temperature:
    • -10°C ~ 60°C (14°F ~ 140°F)
  • Working Temperature:
    • -30°C ~ 60°C (-22°F ~ 140°F)
    Humidity
  • 90%
  • Warranty
  • Warranty might vary by territory or situation.Please check: Warranty
  • System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, alignment sticker, L-shaped wrench, screw pack, waterproof accessory pack, sunshield
