Notice:
This model is available in specific regions only. Please contact your local sales representative for product availability in your location.

The FD9365-EHTV-A is the new flagship outdoor dome network camera from VIVOTEK, equipped with a full HD sensor capable of 1920 x 1080 resolutions at 60 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the FD9365-A series is capable of capturing the highest quality images in both low light and high contrast environments.

The FD9365-A series also offers the best in night time surveillance technology. By adopting Vari-angle IR technology from VIVOTEK speed domes, the FD9365-A IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 50 meters.

Additionally, the FD9365-A series employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth up to 90%* while still maintaining excellent image quality. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. Protecting all these features is the FD9365-A's IP66, IP67 and IK10 rated housing, capable of operating from -50°C to 60°C.

The FD9365-A series also now includes a new wave of advanced Video Content Analysis (VCA) - Smart VCA, including intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection. These features are the next steps in elevating surveillance cameras from image capturing devices to advanced notification instruments, allowing users to see more in smarter ways.

* Depending on scenes

Feature

  • 60 fps @ 1920x1080
  • H.265 Compression Technology
  • Smart Stream III to Optimize Bandwidth Efficiency
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro to Provide Extreme Visibility in Extremely Bright or Dark Environments
  • Built-in IR illuminators, effective up to 50 meters
  • Smart IR II Technology to Avoid Overexposure
  • Smart Motion Detection to Reduce False Alarms
  • Trend Micro IoT Security
  • Smart VCA (Intrusion Detection, Loitering Detection, Line Crossing Detection)
  • Weather-proof IP66, IP67 and Vandal-proof IK10-rated Housing
  • System Information
    Model
  • FD9365-EHTV-A
  • CPU
  • Multimedia SoC (System-on-Chip)
  • Flash
  • 256 MB
  • RAM
  • 1 GB
  • Camera Features
    Image sensor
  • 1/2" progressive CMOS
  • Max. Resolution
  • 1920x1080 (2MP)
  • Lens Type
  • Motorized, Vari-focal, Remote Focus
  • Focal Length
  • f = 4 ~ 9 mm (f = 2.8 ~ 11.4 mm, equivalent focal length @ 1/2.8")
  • Aperture
  • F1.3 ~ F2.2
  • Auto-iris
  • P-iris
  • Field of View
  • 46° ~ 120° (Horizontal)
  • 26° ~ 60° (Vertical)
  • 53° ~ 152° (Diagonal)
  • Shutter Time
  • 1/5 sec. to 1/32,000 sec.
  • WDR Technology
  • WDR Pro
  • Day/Night
  • Yes
  • Removable IR-cut Filter
  • Yes
  • IR Illuminators
  • Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
  • Minimum Illumination
  • 0.015 lux @ F1.3 (Color)
  • <0.005 lux @ F1.3 (B/W)
  • 0 lux with IR illumination on
  • Pan range
  • 350°
  • Tilt range
  • 60°
  • Rotation range
  • ±175°
  • Pan/ Tilt/ Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card slot and recording to network-attached storage (NAS)
  • Built-in Installation Aids
  • Remote focus, remote zoom, CVBS
  • Video
    Video Compression
  • H.265, H.264, MJPEG
  • Maximum Frame Rate
  • 60 fps @ 1920x1080
  • Maximum Streams
  • 3 simultaneous streams
  • S/N Ratio
  • 68 dB
  • Dynamic Range
  • 120 dB
  • Video Streaming
  • Adjustable resolution, quality and constant bit rate control, Smart Stream III
  • Image Settings
  • General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings
  • Illuminators: illuminators, anti-overexposure
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR
  • Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR
  • Focus, zoom, privacy mask, scheduled profile settings
  • Audio
    Audio Capability
  • Two-way Audio (full duplex)
  • Audio Compression
  • G.711
  • G.726
  • Audio Interface
  • Built-in microphone
  • External microphone input
  • External line output
  • Effective Range
  • 5 meters
  • Network
    Users
  • Live viewing for up to 10 clients
  • Security
  • Access list, digest authentication, HTTPS , IEEE 802.1x, password protection, user access log, user account management
  • Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event)
  • Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP
  • PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
  • Interface
  • 10 Base-T/100 Base-TX Ethernet (RJ-45)
  • * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S supported, specification available at www.onvif.org
  • Solution Integration
    Smart Motion Detection
  • Five-window video motion detection, people detection, time filter
  • Smart VCA
  • Intrusion detection, loitering detection, line crossing detection, unattended object detection
  • Missing object detection, face detection, crowd detection, running detection
  • VADP Package
  • Deep Learning VCA (Smart Motion Detection, Smart VCA), Stratocast, Trend Micro IoT Security (3-year free trial)
  • Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, digital input, manual trigger, motion detection
  • Periodical trigger, PIR detection, recording notification, SD card life expectancy, shock detection, system boot
  • Cybersecurity events (brute force attack event, cyberattack event, quarantine event)
  • Event Action
  • Event notification via audio clip, digital output, email, HTTP, FTP, NAS server, SD card
  • File upload via email, HTTP, FTP, NAS server, SD card
  • General
    Connectors
  • RJ-45 cable connector for 10/100 Mbps PoE network connection
  • Audio line input
  • Audio line output
  • AC 24 V power input
  • DC 12 V power input
  • Digital input *2
  • Digital output *2
  • TV out
  • LED Indicator
  • System power and status indicator
  • Power input
  • IEEE 802.3at Class 4 PoE, DC 12V, AC 24V
  • (Simultaneous Power Redundancy Supported)
    Power consumption
  • PoE: Max. 21/17 W (IR on/off)
  • DC 12V: Max. 18/14 W (IR on/off)
  • AC 24V: Max. 19.5/15.5 W (IR on/off)
  • Dimensions
  • Ø 155 x 103.2 mm
  • Weight
  • 909 g
  • Certifications
  • EMC: CE (EN 55032 Class A, EN 55024), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A)
  • Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)
  • Environment: IK10 (IEC 62262), IP66/67 (IEC 60529)
  • IA: BIS (IS 13252)
  • Operating Temperature
  • Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
  • Working Temperature (IR off): -50°C ~ 60°C (-58°F ~ 140°F)
  • Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F)
  • Humidity
  • 98%
  • Warranty
  • 36 Months
  • System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
  • Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 11
  • Other Players
  • VLC: 1.1.11 or above
  • Included Accessories
    Packing Contents
  • Quick installation guide, alignment sticker, screw pack, desiccant bag, waterproof accessory bag, conduit ring
  • Datasheets Download
    QIG Download
    User's Manual Download

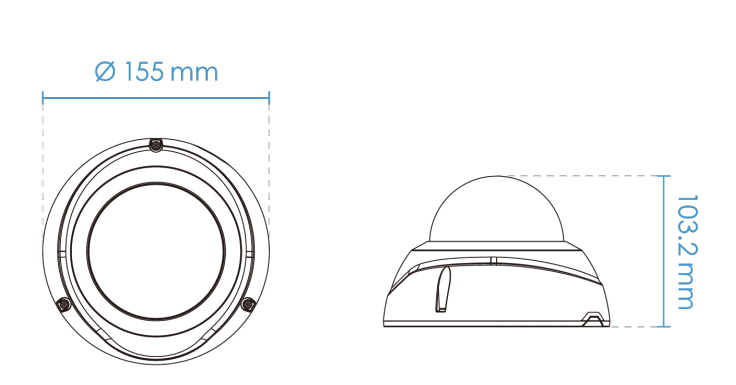

    Dimension
