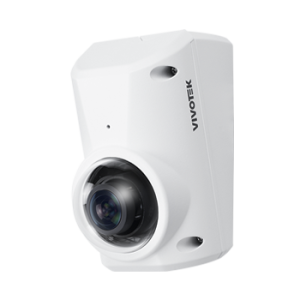

CC9380-HV-V2

    5MP, WDR Pro, ±20° Tilt Lens, IP66, IK10


180° Panoramic View

WDR Pro

Smart VCA

NDAA

AI

Small, Marvel, Boundless Vision

Meet the Compact Panoramic Camera: Small but mighty, it delivers a 180-degree view with near-field imaging, eliminates any blind spots. Included accessories offer both outdoor protection and increased flexibility, allowing you to tilt and adjust the camera angle. Equipped with Smart VCA and vision object analytics, this camera elevates your security with AI intelligence, empowering you to see everything, from every angle.

Key Features

  • 5-Megapixel CMOS Sensor
  • 30 fps @ 2560x1920 (WDR On)
  • Anti-Ligature Design
  • 180° Horizontal Panoramic View
  • WDR Pro (120 dB) to Provide Extreme Visibility in High Light Contrast Scenes
  • SNV (Supreme Night Visibility)
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • ±20° Tilt Lens
  • Built-in Microphone
  • 3D Noise Reduction for Low-light Conditions
  • H.265 Compression
  • Smart Stream III

    • NDAA Compliance

    Trend Micro IoT Security for Cybersecurity

      Enhanced Coverage with included Tilt Bracket

      The compact panoramic camera boasts a wide field of view, but the included tilt bracket offers even more flexibility. It allows you to tilt and adjust the camera angle by 15~20 degrees, ensuring you can capture even hard-to-reach areas and eliminate potential blind spots in your security coverage.

      Uncover Video Insights with Vision Object Analytics

      The compact panoramic camera, equipped with VIVOTEK AI technology, empowers you to enhance investigation efficiency by identifying people and vehicles based on unique attributes like color, gender, and type. Streamline your search process and minimize duplicate entries with precise object tracking.

      180-degree View with Clear Evidence

      Eliminate blind spots and gain a complete picture of your surroundings with its expansive 180-degree field of view. Seamlessly capture every detail in stunning high-resolution with smooth, crystal-clear video at 30fps for effortless identification and review.This empowers you to see everything, from every angle.

    System Information
    Model
  • CC9380-HV-V2
    		•
    CPU
  • Multimedia SoC (System-on-Chip)
    		•
    Flash
  • 8 GB
    		•
    RAM
  • 2 GB
    		•
    Camera Features
    Image Sensor
  • 1/2.8" Progressive CMOS
    		•
    Max. Resolution
  • 2560x1920 (5MP)
    		•
    Lens Type
  • Fixed-focal
    		•
    Focal Length
  • f = 1.47 mm
    		•
    Aperture
  • F2.7
    		•
    Iris Type
  • Fixed iris
    		•
    Field of View
  • 180° (Horizontal)
  • 120° (Vertical)
  • 180° (Diagonal)
    		•
    Shutter Time
  • 1/5 sec. to 1/32,000 sec.
    		•
    WDR Technology
  • WDR Pro
    		•
    Day/Night
  • Yes
    		•
    Removable IR-cut Filter
  • Yes
    		•
    Minimum Illumination
  • 0.08 lux (Color, 30IRE)
  • 0.005 lux (B/W 30IRE)
    		•
    Tilt Range
  • ±20°
    		•
    Pan/Tilt/Zoom Functionalities
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
    		•
    Storage
  • Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
    		•
    Built-in Installation Aids
  • Pixel calculator
    		•
    Video
    Video Compression
  • H.265, H.264, MJPEG
    		•
    Maximum Frame Rate
  • 30 fps @ 2560x1920
    		•
    Maximum Streams
  • 3 video streams (Up to 8 configurable profiles)
    		•
    S/N Ratio
  • 62 dB
    		•
    Dynamic Range
  • 120 dB
    		•
    Video Streaming
  • Adjustable resolution, quality and constrained bit rate control, Smart Stream III
    		•
    Image Settings
  • General settings: video settings, video orientation (flip, mirror, rotation), day/night settings, smart image
  • Illuminators: illuminators, anti-overexposure
  • Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto)
  • Exposure: exposure strategy (measurement window, metering mode); exposure control (exposure level, exposure time, gain control), image sharpener for motion blur, AE speed adjustment, WDR
  • Privacy mask; Pixel calculator, Scheduled profile settings, Overlay settings
    		•
    Audio
    Audio Capability
  • One-way audio
    		•
    Audio Compression
  • MPEG-2 AAC-LC, G.711, G.726
    		•
    Audio Interface
  • Built-in microphone
    		•
    Effective Range
  • 5 meters
    		•
    Network
    Users
  • Live viewing for up to 10 clients
    		•
    Security
  • Access list, Account block , Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS , IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management
    		•
    Protocols
  • 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP
    		•
    Interface
  • 10Base-T/100 BaseTX Ethernet (RJ-45)
    • *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
    ONVIF
  • Profile G, S, T supported, specification available at www.onvif.org
    		•
    AI Analytics
    Compute Capability
  • SoC with built-in hardware deep learning accelerator
    		•
    Vision Object Analytics
  • Object Detection: People, Vehicle (4-wheeled, 2-wheeled)
  • Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color)
  • Re-Search Extraction
  • Path Extraction
    		•
    Application
  • Deep Learning VCA (Smart Motion Detection, Smart VCA)
    • Smart Motion Detection - Five-window video motion detection, People detection, Vehicle detection, Time filter
    • Smart VCA - Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection
    Application available with license
  • Running detection, Parking Violation Detection, Restricted Zone Detection
    • *Support for more analytic applications and free trial, please visit vivotek.com/video-analytics
    Solution Integration
    Applications
  • Trend Micro IoT Security (3-year free trial)
    		•
    Alarm and Event
    Event Trigger
  • Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot, video loss, video restoration
    		•
    Event Action
  • Event notification via audio clip, camera link, email, HTTP, FTP/SFTP, NAS server, SD card
  • File upload via email, HTTP, FTP/SFTP, NAS server, SD card
    		•
    General
    Connectors
  • RJ-45 cable connector for 10/100 Mbps Network/PoE connection
    		•
    LED Indicator
  • System power and status indicator
    		•
    Power Input
  • IEEE 802.3af PoE Class 0
    		•
    Power Consumption
  • MAX. 9.12W
    		•
    Dimensions
  • 115 x 65 x 59 mm
    		•
    Weight
  • 338 g
    		•
    Certifications
  • EMC: CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7
  • Safety: UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471)
  • Environment: IK10 (IEC 60529), IP66 (IEC 60529)
  • IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1)
    		•
    Operating Temperature
  • Start Temperature:
    • -10°C ~ 55°C (14°F ~ 131°F)
  • Working temperature:
    • -30°C ~ 55°C (-22°F ~ 131°F)
    Humidity
  • 98% RH (non-condensing)
    		•
    Warranty
  • Warranty might vary by territory or situation.Please check: Warranty
    		•
    System Requirements
    Operating System
  • Microsoft Windows 10/8/7
  • Mac 10.12 (Chrome only)
    		•
    Web Browser
  • Chrome 58.0 or above
  • Internet Explorer 10/11
    		•
    Other Players
  • VLC: 1.1.11 or above
    		•
    Included Accessories
    Packing Contents
  • Quick installation guide, mounting bracket, tilt bracket, screw pack
    		•
    DORI (EN 62676-4 Standard)
    Detect (25PPM/ 8PPF)
  • 29.2 m (95.9 ft)
    		•
    Observe (63PPM/ 19PPF)
  • 11.7 m (38.3 ft)
    		•
    Recognize (125PPM/ 38PPF)
  • 5.8 m (19.0 ft)
    		•
    Identify (250PPM/ 76PPF)
  • 2.8 m (9.2 ft)
    		•
