Outdoor 1 Port EPoC Tx Module VIVOTEK AP-FEX-0150-T

EOS Notice: This model is discontinued. Please check regional sales for availability.

The EPoC (Ethernet & Power over Coaxial) line is a long-range solution providing Fast Ethernet and Power over RG6 coaxial cables up to 1200m for IP cameras. This outdoor product line is the best solution for transforming CCTV to IP cameras without needing to change legacy RG59 cables, thereby saving on wiring costs. Additionally, EPoC transmits both power and data to IP cameras whereas fiber solutions only provide data.

Feature

Weather-proof IP67-rated and Vandal-proof IK10-rated Housing

Built-in 6KV Surge Protection for BNC Port

Extend Ethernet and Power up to 1,200 m (3,937 ft) over RG6 Coaxial Cable

Support Ring Topology up to 4 IEEE 802.3af Camera for Power Redundancy

Support Daisy Chain Topology up to 4 IEEE 802.3af Camera

Easy Installation for a Smooth Transition from Legacy to IP Camera

Both Wall Mount and Rackmount Supported

Model	AP-FEX-0150-T
Product Description	Outdoor 1 Port EPoC Tx Module
BNC Port (75Ω)	1
Ethernet Port	1
PoE On/Off Switch	1
Transmission Mode	Tx
Max. PoE Distance (RG 6)	1.2km/7.5w
Max. Ethernet Distance (RG 6)	2.4 km
Power Input	DC 56V
Power Consumption	3W
Surge Protection	BNC 6KV
PoE Standard	802.3 at/af
Water Proof	IP67
Vandal Proof	IK10
Dimension	194 (D) x 56 (W) x 40 (H) mm
Weight	0.3kg (0.66lb)
Operating Temperature	-30˚C ~ 60˚C (-22˚F ~ 140˚F)
Storage Temperature	-40˚C ~ 85˚C (-40˚F ~ 185˚F)
Operating Humidity	5% ~ 95% non-condensing
Safety Certification	CE, FCC, VCCI
Note	VIVOTEK'S EPoC Tx modules are only compatible with EPoC Rx modules and switches.

Datasheets	Download
QIG	Download

Feature

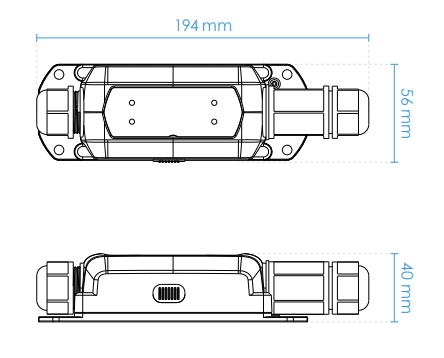

Dimension

Application
